TF10
Modulární zodolněné venkovní LED dlaždice Barco TF10 poskytují vysoce kvalitní obraz, spolehlivost při použití 24/7 a nízké pořizovací náklady. Díky nízké spotřebě energie a nižší hmotnosti ve srovnání s podobnými výrobky, se TF10 stává perfektním řešením
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail

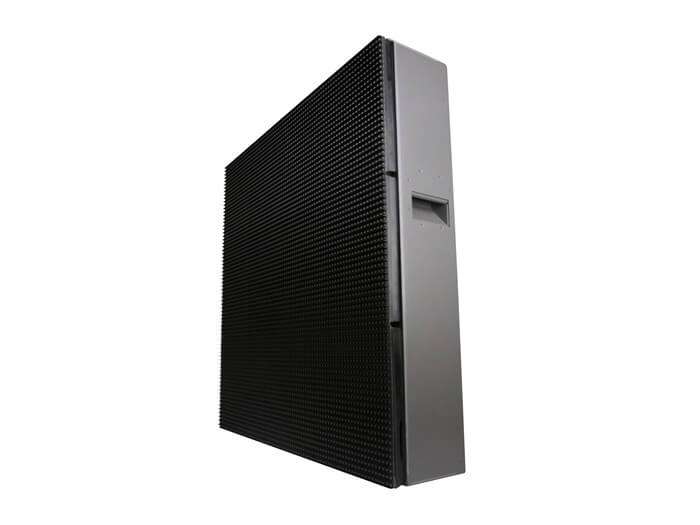

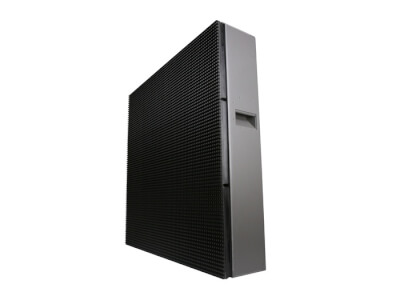

The Barco TF10 is a modular rugged outdoor LED tile that provides powerful imagery in combination with 24/7 reliability and a low cost of ownership. With less power consumption and a lighter weight than similar products, the TF10 is a perfect fit for digital signage and sports applications.
Excellent brightness, color and contrast
The TF10 tiles deliver an excellent balance between brightness, color and contrast. By nature, their low maintenance requirements and proven track record result in an exceptionally low total cost of ownership.
Excellent brightness, color and contrast
The TF10 tiles deliver an excellent balance between brightness, color and contrast. By nature, their low maintenance requirements and proven track record result in an exceptionally low total cost of ownership.
Specifikace
| Pixel pitch | 10.2 mm |
| Brightness | 6,500 nits |
| LED configuration | 3-in-1 SMD |
| Pixel density | 9,612/sqm |
| 893/sqf | |
| 5,768/tile (80x72) | |
| Hor. viewing angle | 140° |
| Vert. viewing angle | -35°/+10° |
| Power consumption | 184W/m² (average) |
| 633W/m² (max.) | |
| Heat dissipation | 627 BTU/hr/m² (average) |
| Tile dimensions | Width: 816mm |
| Height: 735mm | |
| Depth: 231mm | |
| Weight / Tile | 31 kg (68.4 lbs) |
| IP rating | IP65/54 |
| Processing | 16 bit/color |
| Serviceability | Front and back |
| Operating temperature | -20 to +50°C (-4° to 122°F) |
| Operational humidity | 10-99% |
| Certifications | ETL, CE, FCC Class A, RoHS |
