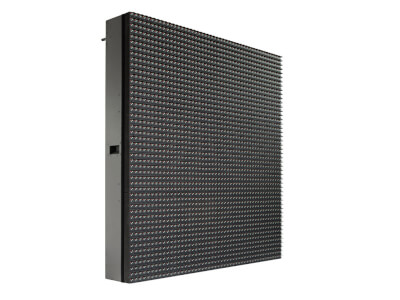

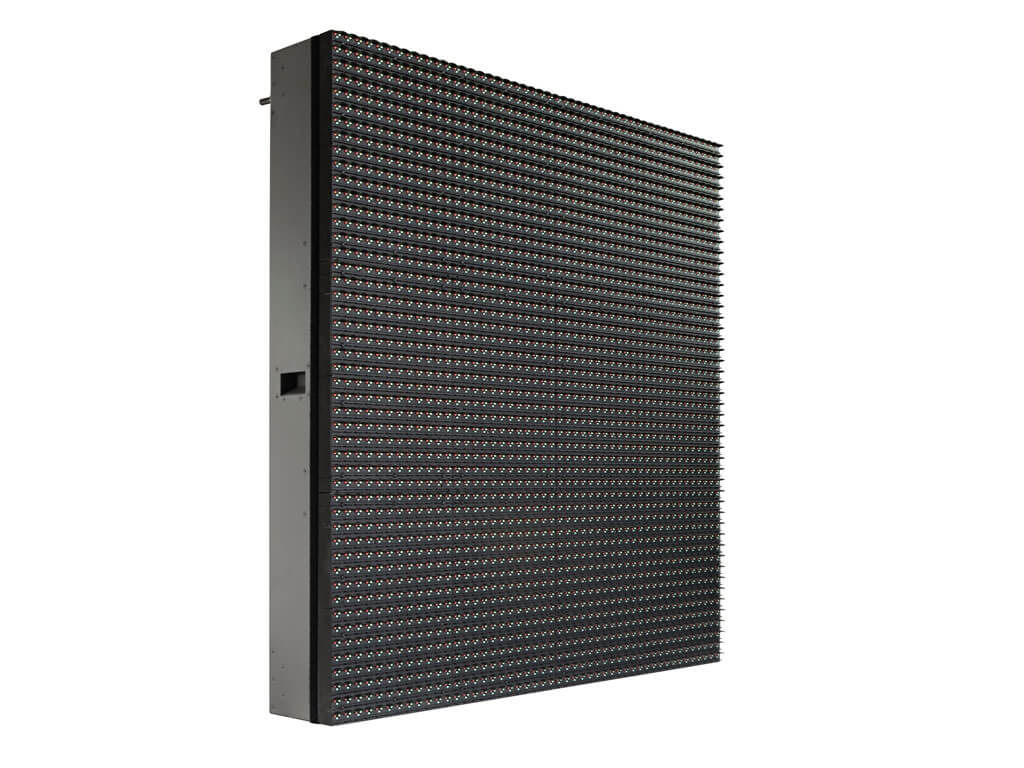

Barco's TF series are reliable LED tiles that will cast powerful imagery in the best possible light. TF offers 24/7 reliability at a competitive cost of ownership. With less power consumption and a lighter weight than similar products, Barco's TF is a perfect fit for digital signage and sports applications.
The TF's optimizations include environmentally friendly technologies that reduce light pollution, such as contrast-enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs. This ensures that light is targeted at your audience and less excess light is spilled, which leads to a lower power consumption and longer lifetime. This makes the TF series the first real green LED products in the market.
|Pixel pitch||20.0 mm|
|LED configuration||1R, 1G, 1B tilted downwards|
|Hor. viewing angle||-72°/+65° color shift|
|Vert. viewing angle||
-48°/+12° color shift
|Power consumption||139W/m² (typical)|
|Heat dissipation||474BTU/hr/m² (typical)|
|Weight / Tile||
38 kg (83.77 lbs)
|Serviceability||Front or back|
|Operating temperature||-20 to +45°C (-4° to 113°F)|
|Certifications||ETL, CE, FCC Class A, RoHS|
