TF-16BK

Tříleddiodová RGB lamp technologie s unikátní černou čočkou pro zvýšení kontrastu obrazu

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

Detail

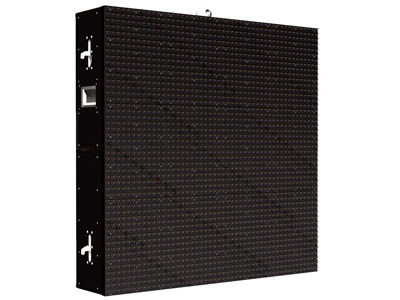

Barco's TF series are reliable LED tiles that will cast powerful imagery in the best possible light. TF offers 24/7 reliability at a competitive cost of ownership. With less power consumption and a lighter weight than similar products, Barco's TF is a perfect fit for digital signage and sports applications.

The TF's optimizations include environmentally friendly technologies that reduce light pollution, such as contrast-enhancing shaders that allow for lower brightness and lower power consumption as well as a higher visual performance and a downward angle on its LEDs. This ensures that light is targeted at your audience and less excess light is spilled, which leads to a lower power consumption and longer lifetime. This makes the TF series the first real green LED products in the market.




Specifikace

Pixel pitch 16.0 mm
Brightness 6,450 nits
LED configuration 1R, 1G, 1B tilted downwards
Pixel density 11,739/m²
Hor. viewing angle -72°/+71° color shift
Vert. viewing angle

-50°/+23° color shift

Power consumption 119W/m² (typical)
Heat dissipation 406BTU/hr/m² (typical)
Tile dimensions

Width: 960mm
Height: 960mm
Depth: 225mm

Weight / Tile

39.2 kg (83.77 lbs)

IP rating IP65/54
Processing 16 bit/color
Serviceability Front or back
Operating temperature -20 to +45°C (-4° to 113°F)
Operational humidity 10-99%
Certifications ETL, CE, FCC Class A, RoHS
