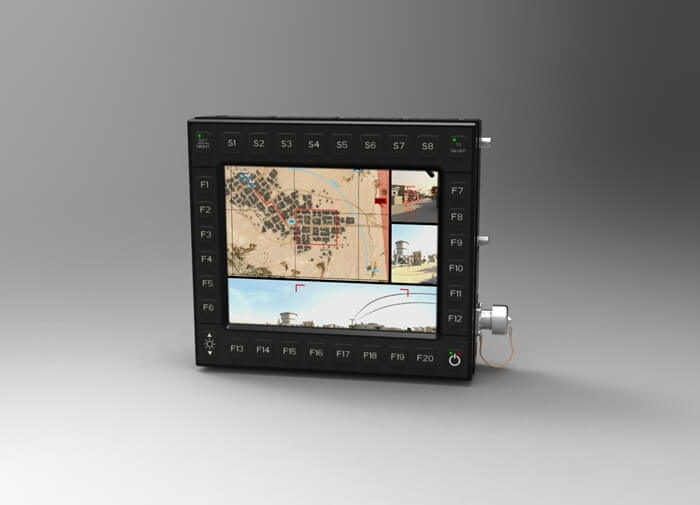

Barco’s SV-126 smart display combines a 10-inch touch screen with the graphics and computing power of Barco’s DPM rugged computer. Thanks to its compact footprint, the SV-126 can be easily integrated into the confined spaces of wheeled and tracked vehicles.

Extreme ruggedization
Barco’s SV-126 smart display offers the latest proven technologies, such as a rugged analog-resistive, low-reflection touch screen and the latest generation of Intel® Core™ processors. It also features a unique thermal management system which makes the smart display fit for the harshest temperature environments.

Modular design
Additionally, the SV’s modular architecture boosts flexibility in terms of processing power and graphics performance, and features multiple option boards for increased functionality.
Advanced image processing

The SV-126 supports advanced video processing and high-quality video streaming capability for better situational awareness, making it a perfect fit for dashboard applications.

Barco’s SV-126 features:
    10” analog-resistive rugged touch screen
    XGA (1024 x 768) resolution
    Compact footprint for easy integration into vehicles
    Fanless and rugged design
    High computing and graphics performance
    High-performance video processing
    Field-removable solid state drive
    Easy maintenance (local or remote)


Panel size 10.4" diagonal, 4:3 aspect ratio
Resolution 1024 x 768 (XGA)
Panel specifications 16.7 M colors
  256 grayscales (with patent pending dithering algorithm)
Brightness Day mode: min. 430cd/m² / 125fL
  Night Node: max 3.43cd/m² / 0.1fL
Contrast ratio 400:1 (dark environment)
Dimming ratio Typ. > 100:1
HMI 4 control keys
  Up to 32 function keys
  Rugged AR high-resolution touch screen
Computing Intel® Core™ i3 (3rd Generation), 2x 2.4GHz, 4GB RAM
  Intel® Core™ i7 (3rd Generation), 2x 2.1GHz, 8GB RAM
Graphics card Integrated Intel HD Graphics 4000
  Optional high-performance MXM graphics card
Storage capacity 40GB Field Removable SATA SSD
Inputs - Outputs 1 Intel PRO1000 Gigabit Ethernet ports 4x USB 2.0 4x serial lines (RS232/RS422/RS485)
  2x isolated CAN bus, Can 2.0B compliant
  HD audio in/out/micro
  4x video inputs RS170, PAL/NTSC (isolated)
Option slots 1x XMC/PMC
  2x miniPCIe
Operating system Microsoft Windows 7 Professional, 64-bit
  RedHat Linux Enterprise Linux 6, 64-bit
Power Supply MIL-STD 1275E compliant (IES compliant)
Power consumption Power consumption 50W typ., 80W max (without heaters)
Dimensions 286 x 254 x 84 mm / 11.25” x 10.0” x 3.3” (w x h x d)
Weight 7,25 kg / 16 lbs
Vibration MIL-STD 810G
Humidity MIL-STD 810G
Sand & dust, salt fog MIL-STD 810G
Operating temperature -46°C / -51°F, +65°C / 150°F (MIL-STD 810G), even up to 71°C/160°F
