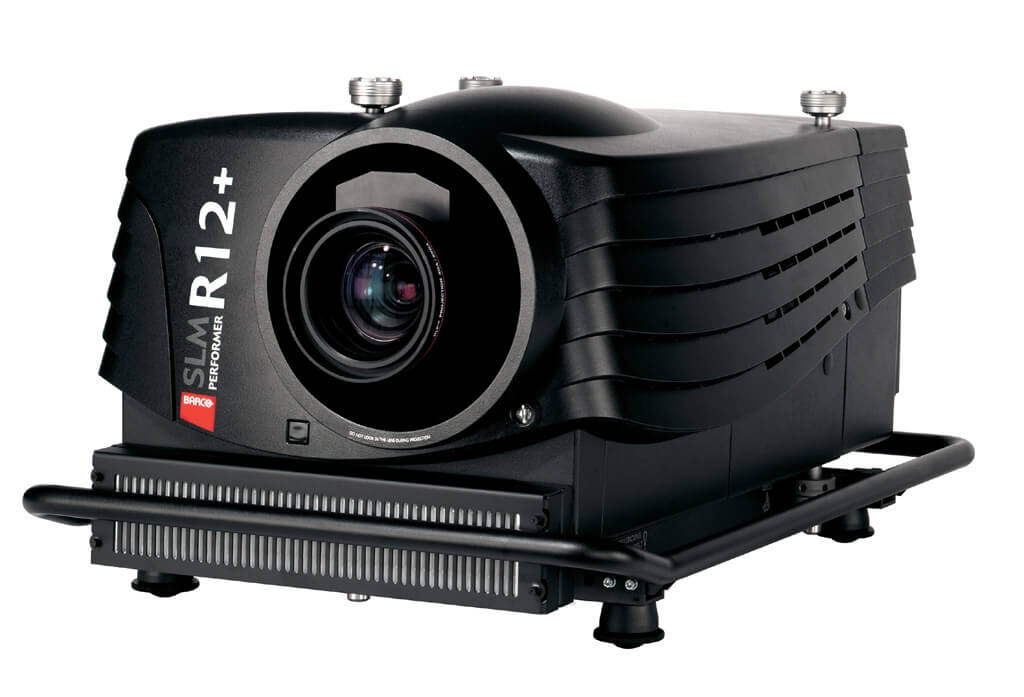

SLM R12+ Performer

SXGA+, 12,000 lumens three-chip DLP projector



Barco's RLM R12+ offers the unique quality of three-chip DLP colors and a very bright 12,000 lumens light output at a sharp price-to-quality ratio. The SLM's track record of reliability and consistent performance in large venues speak volumes about its capabilities.

Powerful large-screen projection
The RLM R12+ projector is an ideal companion for large-screen. Its bright light output makes it suitable to operate even in rooms with lots of other light sources, so that the SLM doesn't require you to change lighting settings whenever you turn it on.

Long system lifetime
Barco's SLM R12+ comes equipped with optimized dust filters. This keeps its optical engine clean and uncontaminated, and ensures the sharp image you need - the SLM's image quality is always no less than impeccable.

Technical specification:

Light Output 13500 Center lumen
12000 ANSI lumen
Resolution 1400 x 1050 (native)
Brightness uniformity > 90% for the total screen
Contrast ratio 1600 : 1 (full field)

High contrast mode:
2000 : 1 (full field)
Display 3 Chip DLP SXGA+ (resolution of 1400 x 1050 pixels (aspect ratio 4:3)).
Convergence Max allowed convergence drift is 0.5 pixel.
This is checked on vertical and horizontal midlines only.
Corners are not applicable for convergence error.
This is measured with TLD 1.2 lens on axis.
  • Picture in picture
  • Seamless switching with effects
  • Standard light shutter
  • Rigging point
  • Carrying handle
  • High contrast mode
  • P7 color processing
Picture-in-picture 2 sources simultaneous
Inputs Fixed inputs
  • 2x Configurable 5-Wire (BNC; incl. 2 video decoders)
  • 2x DVI (Digital Visual Interface)

Modular inputs

  • 1x SDI (+ loop through)
  • 1x HDSDI (+ loop through)
Outputs DVI out (1400 x 1050) of full screen composed image
  • 1x RS-232C IN (D-9 connector)
  • 1x RS-232C OUT (D-9 connector
  • 1x RS-232C IN (XLR connector)
  • 1x 2way prop. protocol to Rugged remote (3 pins by 2 way rugged remote)
  • 1x prop. protocol (RJ45 connector)
  • xls and mini-jack for wired remote control
  • All current video sources (PAL, SECAM, NTSC) in Composite, S-VHS, Component or RGB formats
  • All currently proposed HDTV, extended and improved television standards (1080i, 720p)
  • All computer graphics formats from VGA, SVGA, XGA, SXGA, full HD to UXGA
  • Most Macintosh computers
  • Electronic workstations with a resolution up to 1600 x 1200 pixels at 75 Hz
  • Most computer sources with a pixel clock up to 200 MHz
  • DVI sources up to SXGA+
  • Input source compatibility max. input: up to 1920 x 1080 and 1600 x 1200
    Screen size From 1-9m / 3-30ft recommended
    Scan Frequencies Pixel clock >162Mhz (UXGA 60hz)
    Network connection Optional (10 base-T)
    On board display server Optional DIMM PC available
    Remote control projector over ethernet via webserver
    Ambient temperature Max 35°C (95°F)
    Lamp 2.2 kW Xenon

    Warranty universal lamphouse: 1000 Hrs
    Lens Order nr
    TLD (HB) 0.8 R9842040
    TLD (HB) 1.2 R9840770
    TLD (HB) 1.2+ R9840775
    TLD (HB) 1.6 - 2.0 R9842060
    TLD (HB) 2.0 - 2.8 R9842080
    TLD (HB) 2.8 - 5.0 R9842100
    TLD (HB) 5.0 - 8.0 R9842120
    Lens Shift Vertical: -10% to +110%
    Horizontal: -50% to +50%
    (small differences occur per lens type)
    Lens encoders On zoom and focus (with TLD lenses)
    Throw Ratio
    Lens Throw ratio
    TLD (HB) 0.8 0.75
    TLD (HB) 1.2 1.1
    TLD (HB) 1.2+ 1.23
    TLD (HB) 1.6 - 2.0 1.45 - 1.85
    TLD (HB) 2.0 - 2.8 1.85 - 2.55
    TLD (HB) 2.8 - 5.0 2.55 - 4.55
    TLD (HB) 5.0 - 8.0 4.55 - 7.3
    TLD+ (HB) 7.5 - 11.2 7.5 - 11.2
    ScenergiX Standard horizontal and vertical electronic edge blending
    Sealed DLP™ core not available
    Dust filters Dense, high quality microfilters available as spare kit, in a 6-pack & 24-pack
    Noise Level 62.5 dBA (at 40°C)
    Mains Voltage 200-240 V
    Power consumption 2750 W
    Power Dissipation Max 8538 BTU/h
    AC power 50Hz - 60Hz
    Weight 56 kg (124 lbs)
    Dimensions WxLxH
    585 x 876 x 429 mm
    (23.0 x 34.5 x 19.9 inch)
    Shipping Dimensions

    Width: 80 cm
    Height: 76 cm
    Depth:  72 cm
    Floor Space: 0,5760 m²
    Volume: 0,437760 m³
    Gross Weight: 100 kg

    Safety Regulations Compliant with UL1950 and EN60950
    Electromagnetic Interference Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A
    Order Information Projector: R9010310
    Spare lamp: R9841810
    6-pack dust filters: R8454096K
    24-pack dust filters: R84540924K
