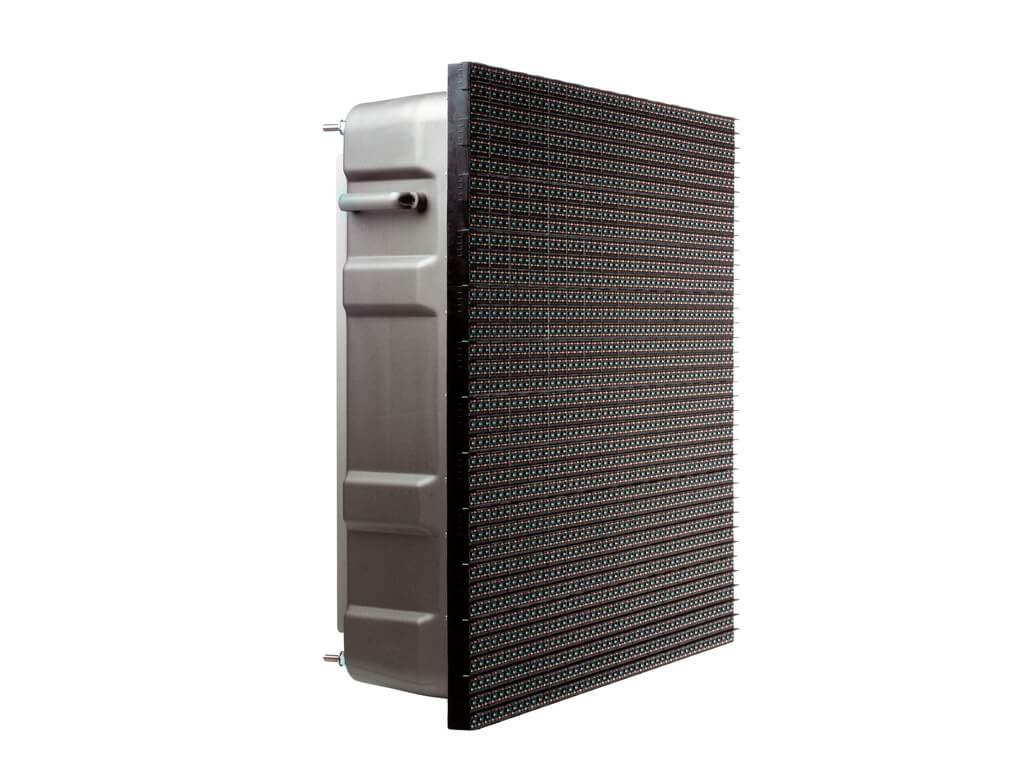

SLite 10xp

Slite XP 10 je nejnovější přírůstek do rodiny Slite Barco venkovních LED obrazovek. Se svými 10 mm rozlišením, ultra vysokým jasem 5500 je Slite XP 10 FX perfektní pro všechny venkovní použití.

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Navíc zajišťuje mnohem lepší úroveň černé barvy, a tak v kombinaci s vyšším jasem nabízí vynikající úroveň kontrastu i za jasného slunečního světla.

Detail

The SLite 10 XP FX is latest addition to the Barco’s SLite family of outdoor LED displays. With its 10mm resolution, ultra high bright 5,500 Nit output, and rugged IP65 rating, the SLite 10 XP FX is the perfect product for all outdoor applications.
With its new revolutionary shader design, the SLite 10 XP FX ensures vastly improved black levels. When combined with its higher brightness output it delivers superb contrast levels even in the brightest of sunlight.

The SLite 10 XP FX also features advanced 14 bit processing and new LED level (XP) calibration delivering even greater color depth and uniformity across the entire surface of the display than its predecessor.

Its high refresh rate of 2000hz ensures the image is much more stable and there is no loss of visual information when using camera for broadcasting.

The SLite 10 XP FX offers a modular outdoor display concept that allows the build up of almost any shape of size display and is ideal for use at outdoor locations with large viewing distances.

Specifikace

Visual Resolution 10.18 mm
Physical Resolution 20.36 mm
Brightness 6500 NIT
Calibrated Brightness 5500 NIT (calibrated at 6500°K)
LED configuration 2R, 1G, 1B
LED density 9646/m² (896/ft²)
5808/panel (88 x 66)
Hor. viewing angle 120°
Vert. viewing angle 60°
Contrast ratio 2000:1 at 200 lux
Lifetime 50 000 h (full white - half brightness)
100 000 h (typical use)
Power consumption

maximum: 640 W / Tile
average: 160 W / Tile

Weight / Tile 38.9 kg (88.2 lbs) excluding structure
Processing 14 bit
Colors 4.4 trillion
Refresh rate > 2000 Hz (PAL / NTSC)
Ruggedness IP 65
Temperature range operating: -20 - 40°C (-4 - 104°F)
storage: -20 - 60°C (-4 - 140°F)
Humidity operating: 10 - 99%
storage: 10 - 99%
D320 input compatibility S-Video, Composite, YUV, RGB, SDI, HDSDI, Data DVI up to UXGA
Certifications ETL, CE, CEBEC, TUV, FCC class A
Dimensions width: 896mm (35.3")
height: 672mm (26.5")
depth: 248mm (9.8")
Order Information R9004171



Order number
R9004171

Popis

Ultra high brightness
The SLite 10 XP FX delivers a brightness of 6500 NIT (5500 NIT calibrated). This results in the perfect solution for all outdoor LED applications.

New revolutionary shader design
The new SLite 10 XP FX incorporates a new revolutionary “light trap” shader. Its radically new geometric design combined with specially selected dark black, matt materials essentially “traps” the light falling on the display ensuring superb black levels. When combined with the high brightness output level of 5,500 NIT (calibrated), the SLite 10 XP FX now delivers vastly improved contrast levels to its predecessor.

Optimal viewing conditions are guaranteed for all viewers. Irrespective of which direction the sunshine falls on the screen or where viewers sit within an arena, they are all ensured of the best quality image. Even at viewing angles of 120 degrees horizontal and 60 degrees vertical, viewers still enjoy a super bright image.

Rugged replaceable shaders
Shaders on the new SLite 10 XP FX are made from a new impact proof, two-component material making them much more rugged and less prone to breakage. Should damage occur, then shaders can now be easily replaced in the field.

Advanced 14-Bit processing / XP calibration
The SLite 10 XP FX features advanced 14-bit processing and XP (LED level) calibration, which results in even greater color depth and uniformity, allowing the display to show vibrant images with even deeper and more uniform colors across the entire surface of the display.

High refresh rate
With a very high refresh rate (2,000Hz) the image of the SLite 10 XP FX is much more stable and there is no loss of visual information when using the camera for broadcasting.

IP65 certified module enclosures
Barco’s SLite 10 XP FX modules are encased in rugged IP65 certified metal enclosures front and back, making them completely dust and weather proof and ideal for repeated use in harsh outdoor environments.

New heavy duty SLite rental frame (for rental & staging)
Large rugged pre-positioning cones similar to those used on the OLite rental frame are now incorporated into the new SLite HD rental frame ensuring ease of set up in any environment. Built-in rugged locking and safety mechanics also now eliminate any need for extra tooling to build up the wall.

Stacking up to 12 tiles high and trussing up to 16 tiles high is a key feature of the new SLite HD frame.
