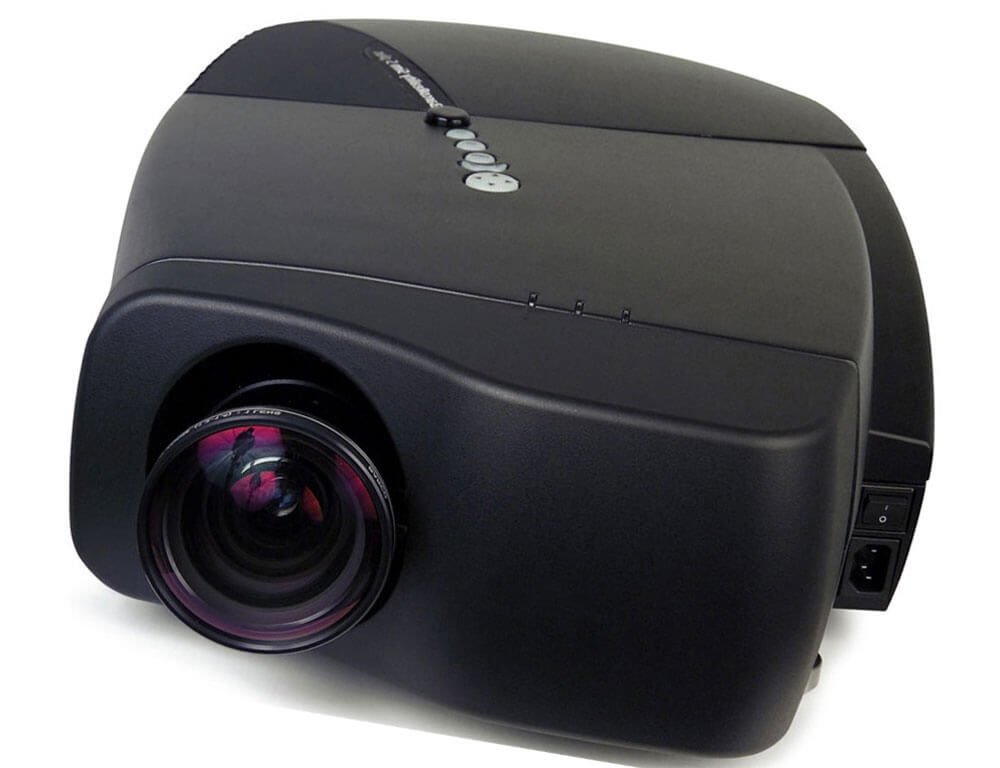

WUXGA single-chip DLP projector for multi-channel applications



Barco’s SIM 5W projector combines a full WUXGA resolution with Barco’s unique multi-channel optimizations to create a sharp, seamless picture, no matter how many channels.

Multiple channels, one seamless image
The SIM 5W comes equipped with unique, Barco-engineered technology for multi-channel set-ups:

• Electronic or optical edge blending creates one continuous image across the entire screen, without blurry overlap zones, thanks to new alpha and beta planes
• Linked constant light output (CLO) and constant contrast dimming (CCD) equalize brightness levels across the entire display system
• Linked DynaColor technology ensures perfect color matching between channels
• Bi-cubical warping (geometry correction) ensures that an image is projected correctly, with an extremely high level of accuracy, across curved, non-flat surfaces

Compatibility with XDS Control Center software suite
Barco’s SIM 5W can be integrated with Barco’s multi-windowing XDS Control Center software suite. It supports both single and two-channel setups.

Minimum maintenance needs, maximum uptime
Barco’s compact SIM 5W is a perfect fit in any environment that requires a projection system with little maintenance needs. The SIM 5W ’s sealed optical engine prevents dust from entering its core and degrading image quality. Its dual-lamp system ensures uninterrupted uptime in case one lamp should go out, minimizing both service needs and downtime, and extending its system lifetime to a great degree.

Technical specification:

Contrast ratio 2,000:1 (full field with standard unit)
10,000:1 (with nigh vision goggle option)
Full variable dynamic range up to 4,000,000:1
Resolution WUXGA (1,920 x 1,200)
Display Single-chip DLP with BrilliantColor processing
Lamp 2x 250 Watt UHP
Color wheel RGBRGB
Lamp lifetime (typical) 3,000 hours
Weight 14,8 kg / 32,6 lbs (body only)
Dimensions (WxLxH) 415 x 487 x 195 mm / 16"33 x 19"18 x 7"67
Inputs Layer 0: DVI-D input
Layer 1: RGBHV or component, composite and S-video
Layer 2: DVI-D, 1x VGA on D15
Layer 3: DVI-D (HDCP), 1x VGA on D15
Output 1x DVI-D
Communication Port RS232 in/out on RJ9
RJ45 (10/100 Base-T Ethernet)
Video PAL, SECAM and NTSC signals
Composite, S-video, component or RGB formats
All current HDTV standards (720i, 720p, 1080i, 1080p)
Data All computer graphics formats up to QXGA @ 75Hz
DVI sources with pixel clock up to 165MHz
Analog sources with pixel clock up to 270MHz
Safety Regulations Compliant with ETL60950 and EN60950
CE and CCC compliant
Class A: FCC, part 15 and CE EN55022
AC power 100-240 VAC / 50-60Hz
Max Power Consumption 700 Watt
Special Features - Internal light sensor for constant light output
- Constant contrast dimmer (20:1 dimming)
- Advanced edge blending (optical and electronic)
- Standard full geometry correction
- Support for single- or two-channel configurations with XDS Control Center software suite
- Sealed DLP engine, low maintenance design
- Dual lamp system
- TCP/IP and RS232 ports for remote control
