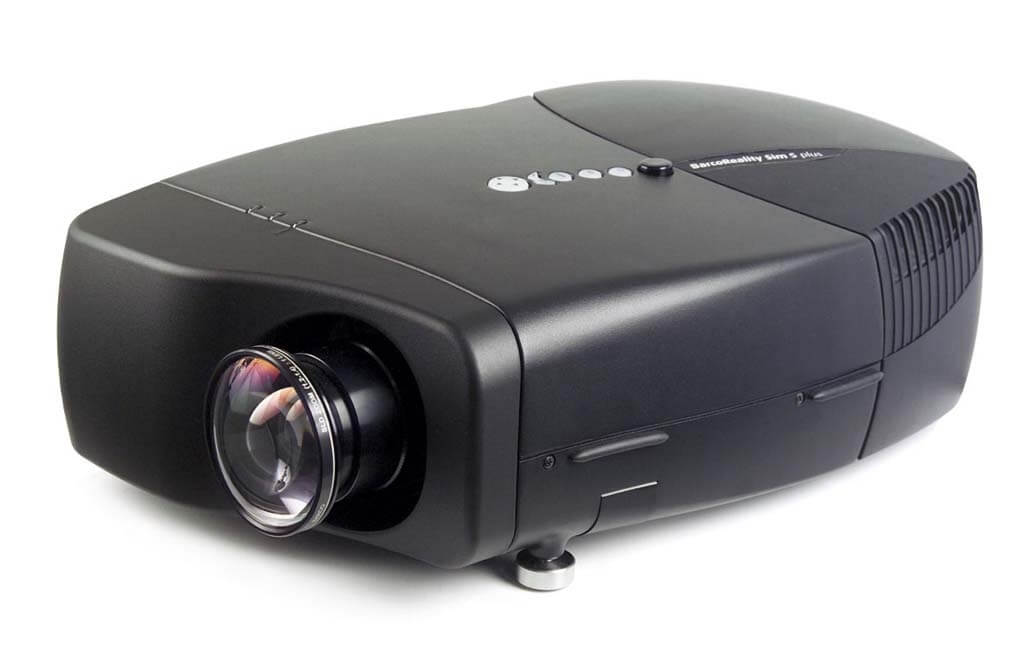

SIM 5R

SXGA+ single-chip DLP projector for simulation and training

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

This dual lamp, single-chip SXGA+ DLP™ projector integrates Barco’s unique WARP 6™ geometry correction technology and an impressive range of dedicated simulation functionalities to ensure the units operate together seamlessly in a display system: DynaColor eliminates channel-to-channel color variations, and CLO (Constant Light Output) ensures all projectors in a multi-channel system maintain the same brightness and contrast, independent of lamp life. Its unequalled flexibility makes the SIM 5R the easy upgrade path for existing simulators.

Increased training efficiency

* Optimal multi-channel geometry thanks to WARP 6 Advanced Geometry Distortion
* Inter-channel color matching with DynaColor
* Efficient seamless blending at high brightness levels thanks to proprietary electronical (ESEM) and optical (OSEM) blending
* Uniform brightness and contrast
* Uniform Dimming technology across channels
* Accurate images for night and dusk training
* Briefing and debriefing applications
* Optional Infitec+: dual eyepoint viewing


Lower operation and maintenance costs

* Budget-friendly, on-board input switching
* Dual lamp system - Easy lamp replacement
* Fast cross-system remote control
* Easy upgrade path for existing simulators


Technical specification:

Resolution SXGA+ (1400 x 1050)
Brightness uniformity 90% for the total screen
Contrast ratio 2,000:1 (full white/full black; influenced by choice of lens)
Display

1-chip 0.95" DarkChip3® DLPTM with BrilliantColorTM processing, SXGA+ resolution, 4:3 aspect ratio

Inputs
  • 1x Component Video, RGBHV, RGBS or RGsB (5 BNC)
  • 1x VGA (D15 connector)
  • 1x DVI-D (Digital Visual Interface - Digital)
  • 1x Composite Video (BNC) (optional)
  • 1x S-Video (4-pin mini-DIN) (optional)
Compatibility
  • All current video sources (PAL, SECAM, NTSC) in Composite, S-VHS, Component or RGB formats
  • All currently proposed HDTV, extended and improved television standards (1080i, 720p)
  • All computer graphics formats from VGA, SVGA, XGA, SXGA to UXGA (75 Hz)
  • Apple Macintosh formats
  • Electronic workstations with a resolution up to 1600 x 1200 pixels @75 Hz
  • Most computer sources with a pixel clock up to 170 MHz
  • DVI sources up to HDTV resolution
Scan Frequencies Horizontal 10kHz - 150 kHz
Vertical 30 Hz - 250 Hz
Lamp

2x 250 Watt UHP lamp, in lamp housing, pre-aligned for max. light output. Typical lifetime: 1,500 h/lamp
Lamp warranty 750 hrs or 90 days, whichever comes first.

Optics Sealed optical engine
Lens Shift

Max. vertiical shift: -25% to +100%
Horizontal shift up to 100% (depending on choice of lens, no shift on QCLD 0.85:1 lens)

Power consumption Max. 680 Watt
Power Dissipation Max. 2,500 BTU/hour
AC power Power factor pre-regulated SMPS, 90-254 VAC / 50-60Hz
Weight Net weight, body only: 13 kg / 28.5 lbs
Dimensions Projector body with cable basket:
W 415 mm (16.34") x H 195 mm (7.68") x D 565 mm (22.24")
Without cable basket: D = 487 mm (19.17")
Safety Regulations Compliant with ETL60950 and EN60950
Electromagnetic Interference Compliant with FCC rules & regulations, part 15 CE EN55022 Class A and CCC
