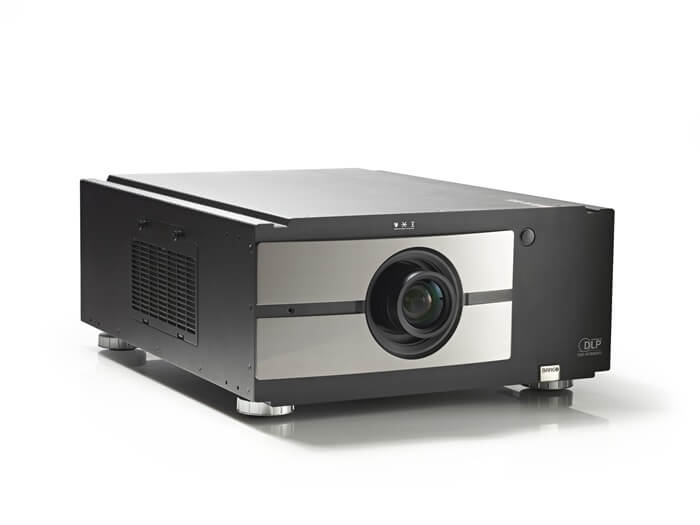

RLM-W6
Řada RLM přináší kvalitu barev odpovídající tříčipové DLP technologii za cenu jednočipové DLP projekce. Přístroje vynikají extrémně tichým chodem, a mohou se pochlubit velmi nízkou spotřebou energie. RLM se stane ideálním společníkem pro zasedací místnost
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Specifikace
Projector type |
WUXGA 3-chip DLP digital projector |
| Technology | 0.67" DMD™ x3 |
| Resolution | 1920x1200 |
| Brightness | 6,300 center lumens |
| 6,000 ANSI lumens | |
| Contrast ratio | 2,200:1 (standard) |
| 3,000:1 (CE) | |
| Brightness uniformity | 95% |
| Aspect Ratio | 16:10 |
| ScenergiX | N/A |
| Lens type | RLDW |
| Lenses | RLDW |
| (fix) | |
| 0.77:1 | |
| 1.16:1 | |
| (zoom) | |
| 1.45-1.74 | |
| 1.74-2.17 | |
| 2.17-2.9 | |
| 2.9-4.34 | |
| 4.34-6.76 | |
| Optical lens shift | Vertical: 0% to +100% |
| Horizontal: -30% to +30% | |
| on zoom lenses | |
| Color correction | P7 |
| Lamps | 2x280W |
| Lamp lifetime | 1,500 hours (typical) |
| 2,000 hours (maximum) | |
| Transport with lamp | Yes |
| Lamp house, quick replace | Yes, auto lamp select |
| Customer bulb replace | N/A |
| Lamp warranty (field replace/ factory replace) | 120 days, 500 hours |
| Sealed DLP™ core | Standard |
| Optical dowser | N/A |
| Picture-in-picture | Up to two sources simultaneously |
| Orientation | table - ceiling - side (portrait) - vertical |
| DMX 512 | External |
| WARP | H+V keystone |
| Integrated web server | Yes |
| 3D | Passive circular polarized (optional) |
| Inputs | 2 x HDMI (HDCP 1,3); 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB; YUV); cinch (RGBs, YUV); Composite video; S-Video |
| Optional Inputs | N/A |
| Input Resolutions | From NTSC up to UXGA (1600x1200), including WUXGA (1920x1200) |
| Max. pixel clock | 165 MHz |
| Software tools | Projector Toolset |
| Control | Mini-jack + IR, RS232, 12v trigger |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power Requirements | 90-240V / 50-60Hz |
| Max. power consumption | 700W |
| Standby mode: <2W | |
| Noise level (typical at 25°C/77°F)" | 37dB(A) |
| Operational ambient temperature | 0-40°C / 32°-104°F |
| Operational humidity | 0-80% (non condens) |
| Dissipation BTU | max 2388 BTU/h |
| Dimensions (WxLxH) | 516,7 x 669,74 x 247mm |
| 26.36 x 20.34 x 9.72 inches | |
| Weight | 26kg (57.3lbs) |
| Shipping Dimensions | (LxWxH) |
| 820 x 660 x 380mm | |
| 32,28 x 25,98 x 14,96 inches | |
| Shipping Weight from Factory | 30kg (66.1lbs) |
| Standard accessories | Power cord, wireless remote control |
| Certifications | Compliant with FCC rules and regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RoHS, WEEE |
| Warranty | 3 years standard, 4th or 5th year optional |
