Specifikace
LCD technology | S-PVA, normally black |
Resolution | Full HD (1920 x 1080) |
Backlight | Direct LED |
Aspect Ratio | 16:9 |
Pixel density | 48 dpi |
Refresh rate | 60 Hz |
Luminance | 450 cd/m2 (typ.) |
Contrast | 3500:1 (typ.) |
Viewing angle | H 178°|V 178° |
White point | 10,000 K |
Color | 10 bits - 1.07 B colors |
Color calibration | Only manual (by eye) calibration |
Precision | Internal 10 bit processing |
Backlight lifetime | 60,000 h (typ) |
MTBF | 100,000 h (half brightness) |
Active screen diagonal | 46" (1168 mm) |
Dimensions | 1024.0 x 578.6 x 98.2 mm | 40.3” x 22.8” x 3.9” |
Active screen area | 1018.1 mm x 572.7 mm | 40.1” x 22.6” |
Bezel width | Right, bottom: 1.9 mm | 0.075” |
Left, top: 3.8 mm | 0.13” | |
Total: 5.7 mm | 0.21” | |
Weight | 26 kg | 57.3 lbs (net) |
36 kg | 79.4 lbs (gross) | |
Cooling | Low noise fans |
AC input voltage | 100-240 VAC, 50-60 Hz |
Power consumption | 190 W (max) | 90 W (typ) | 20 W (sleep) | 2.5 W (stdby) |
Heat dissipation | 819 BTU/h (max) |
DVI | Single link DVI-D in/out with HDCP |
Resolution: (60Hz): 640x480, 800x600, 1024x768, 1280x1024, 1360x768, 1920x1200, 720p60, 1080p60; 1080p24, 1080p25, 1080p30, 1080p50 |
|
Remote Control | External dongle with approx. 1m 3.5mm Stereo Male to IR Receiver |
Barco Wall Control Manager | BCMC Server connected via RS-232 |
Remote client application: on/off, wall set-up, source selection, status, brightness, contrast and color adjustments |
|
Control signal | RS-232 DSUB9 in/out |
Operating humidity | 20-80%, non-condensing |
Operational temperature | 0 - 45°C | 32 - 109°F |
Storage humidity | 10-90%, non-condensing |
Storage temperature | -20 - 60°C | -4 - 140°F |
Safety | UL / c_UL / CB / TUV / KCC |
EMI / EMC | EMC / IEC / FCC / CE / KCC |
Detail

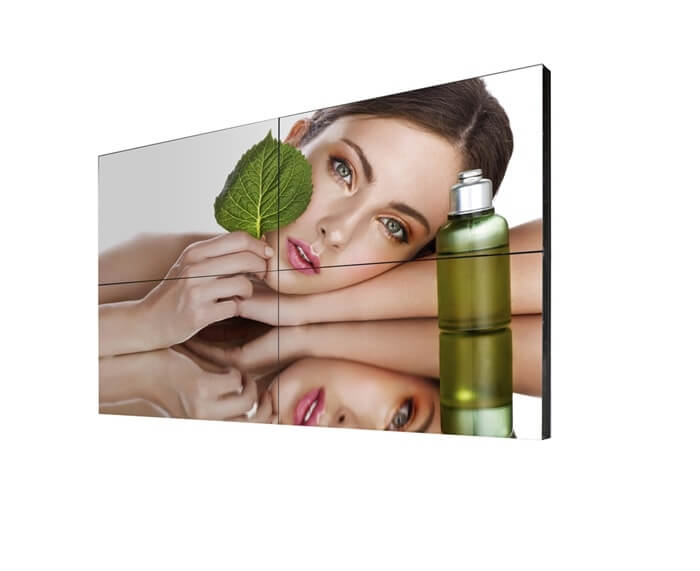

The OverView EVD-4621 is Barco's low-cost 46" tiled LCD video wall. The panels' super narrow bezel results in an excellent tiled visual performance. Typical application areas of this video wall include digital advertising, information displays, and meeting rooms.
Durable and bright
The OverView EVD-4621 tiled LCD video walls couple an attractive price setting with Barco quality. They feature a high resolution, a wide viewing angle, and low energy consumption. Furthermore, because LED backlights reduce burn-in and colorations in the LCD filters and polarizers, the OverView EVD-4621 has a long panel life.
Ideal for:
Digital advertising
Information display
Digital menu boards
Meeting rooms
Directories
Communication
Classrooms
Public address
