Naprosto revoluční technologie, prolamující barieru rozlišení na minimum s fenomenálním černým pozadím určující enormě vysoký kontrast



The NX-series have set a new standard for indoor LED displays by offering the deepest black levels available on the market, and pairing this with a phenomenal contrast ratio of over 4,000:1. With a light output of over 2,000 Nits and native 16-bit color processing, it is sure to deliver the pinnacle of image quality in any indoor setting. In addition, the NX-series guarantee easy, quick installation and are lightweight by design.


Pixel pitch 6.22 mm
Brightness 2,000 nits
LED configuration 3-in-1 SMD
Pixel density

5,832 LEDs per tile (77x81)

Hor. viewing angle 120° (min 50% brightness)
Vert. viewing angle

+48, -55° (min 50% brightness)

Contrast ratio 4,200:1 (at 500 lux)

60,000 hours to 75% of initial brightness

Power consumption 330 W/tile (max)
145 W average
Operation power voltage 200-240V / 50-60Hz
Tile dimensions

Width: 448mm (17.6")
Height: 504mm (19.8")
Depth: 210mm (8.27")

Weight / Tile

12.9 kg

IP rating Indoor use only
Processing 16 bit/color
Colors 281 trillion
Refresh rate 3,200Hz
Foot build-up Max. 12 tiles high
Truss build-up Max. 15 tiles high
Link interface NNI interface (HDMI connector)
Max link length 10m (with Barco HDMI cable)
Interfaces 4x HDMI link
1x USB (diagnostic)
Max power cascade connection 8 tiles
Serviceability Front and back (tools required for front)
Operating temperature 0-40°C
Storage temperature -20 - 60°C
Operational humidity 35-85%
Storage humidity 10-90%
Source compatibility

CVBS, YC, YUV, RGB, DVI (Single and Dual link , up to 2048x1536)
SDI. HD-SDI, Dual link HD-SDI

Operatable digitizer DX-700 (with NNI output card)
Certifications CE class A, TUV, FCC Class A, ETL, Cebec

Order number


The true Black LED

With the NX series, Barco has developed a true black LED – not just a black package. With its new black shaders and black silicon resin, each LED outputs the deepest blacks and brightest luminance levels of any product on the market. NX-6 has a phenomenal contrast ratio of 4200:1 and a calibrated light output of 2000 Nit.

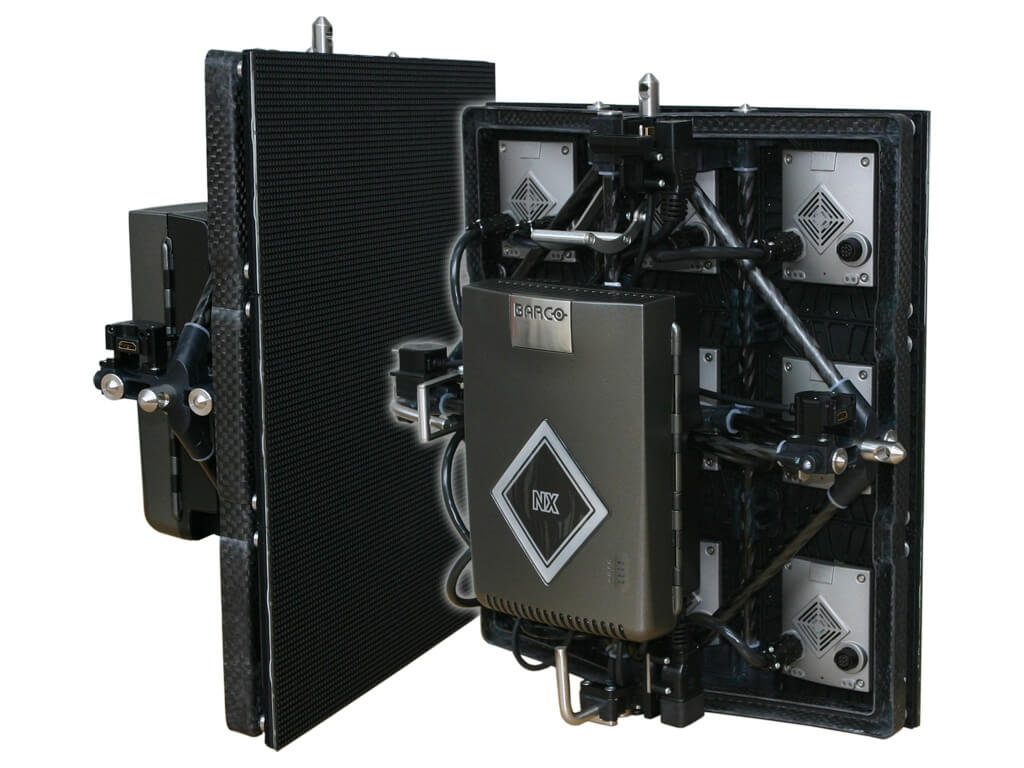

To complement the NX series’ new LED display benchmark, Barco has engineered the industry’s new structural benchmark — the “Mag-frame”. It is built of carbon fiber and is designed in a framework — rather than a box. The result is a support system far stronger, far lighter, and ten times less sensitive to deformation than the current “metal” structures.


With the Mag-frame, LED modules connect directly to the structure via high-strength “neo” magnets, rather than traditional screws. No tools are required for mounting or removal. With each magnet capable of holding over 1000 times its own mass, the result is precise positioning, super easy setup, and a totally seamless display.

Get creative!

The NX tiles can be used either as a standard integral display, or split apart for creative designs. And when used in conjunction with Barco’s Director Toolset, you can build displays of any shape or form — limited only by your imagination.

Consistent uniformity over time – Barco’s LED “anti-aging” solution

By running the LEDs at lower temperatures, extremely high brightness levels are achieved at much lower currents. Within the LED itself, the use of silicon instead of epoxy resin also slows the aging process, and provides a greater degree of reliability in humid operating conditions. The NX’s new “tri-color” LED calibration further ensures display stability and uniformity over time.

Brilliant colors, breathtaking grayscales

 Each NX LED can deliver up to 281 trillion colors, enabling tiles to reach staggering new levels of color depth, uniformity, and grayscale. Thanks to its 16-bit processing power, NX tiles can be calibrated to a larger color triangle – one that is wider than the HDTV standard - delivering cross rentable tiles with deep, uniform colors across the entire display surface.

Remove the tools, improve the serviceability

No tools or cables are required to set up and secure an NX LED wall, or take it apart for service. And because the Mag-frame is essentially an open structure, there is easy access to every module, the control unit and interface boards.
