Naprosto revoluční technologie, prolamující barieru rozlišení na minimum s fenomenálním černým pozadím určující enormě vysoký kontrast



The NX-series have set a new standard for indoor LED displays by offering the deepest black levels available on the market, and pairing this with a phenomenal contrast ratio of over 4,000:1. With a light output of over 2,000 Nits and native 16-bit color processing, it is sure to deliver the pinnacle of image quality in any indoor setting. In addition, the NX-series guarantee easy, quick installation and are lightweight by design.


Pixel pitch 4.66 mm
Brightness 2,000 nits
LED configuration 3-in-1 SMD
Pixel density

10,368 LEDs per tile (96x108)

Hor. viewing angle 120° (min 50% brightness)
Vert. viewing angle

+48, -55° (min 50% brightness)

Contrast ratio 4,000:1 (at 500 lux)

60,000 hours to 75% of initial brightness

Power consumption 300 W/tile (max)
132 W average
Operation power voltage 200-240V / 50-60Hz
Tile dimensions

Width: 448mm (17.6")
Height: 504mm (19.8")
Depth: 210mm (8.27")

Weight / Tile

12.9 kg

IP rating Indoor use only
Processing 16 bit/color
Colors 281 trillion
Refresh rate 3,200Hz
Foot build-up Max. 12 tiles high
Truss build-up Max. 15 tiles high
Link interface NNI interface (HDMI connector)
Max link length 10m (with Barco HDMI cable)
Interfaces 4x HDMI link
1x USB (diagnostic)
Max power cascade connection 8 tiles
Serviceability Front and back (tools required for front)
Operating temperature 0-40°C
Storage temperature -20 - 60°C
Operational humidity 35-85%
Storage humidity 10-90%
Source compatibility

CVBS, YC, YUV, RGB, DVI (Single and Dual link , up to 2048x1536)
SDI. HD-SDI, Dual link HD-SDI

Operatable digitizer DX-700 (with NNI output card)
Certifications CE class A, TUV, FCC Class A, ETL, Cebec

Order number


Black and bright

  • Use of black silicon resin instead of the traditional white epoxy, plus radical new light trap shader design delivers the deepest blacks any product on the market
  • When combined with a light output of 2000 Nit a phenomenal contrast ratio of 4000:1 is obtained

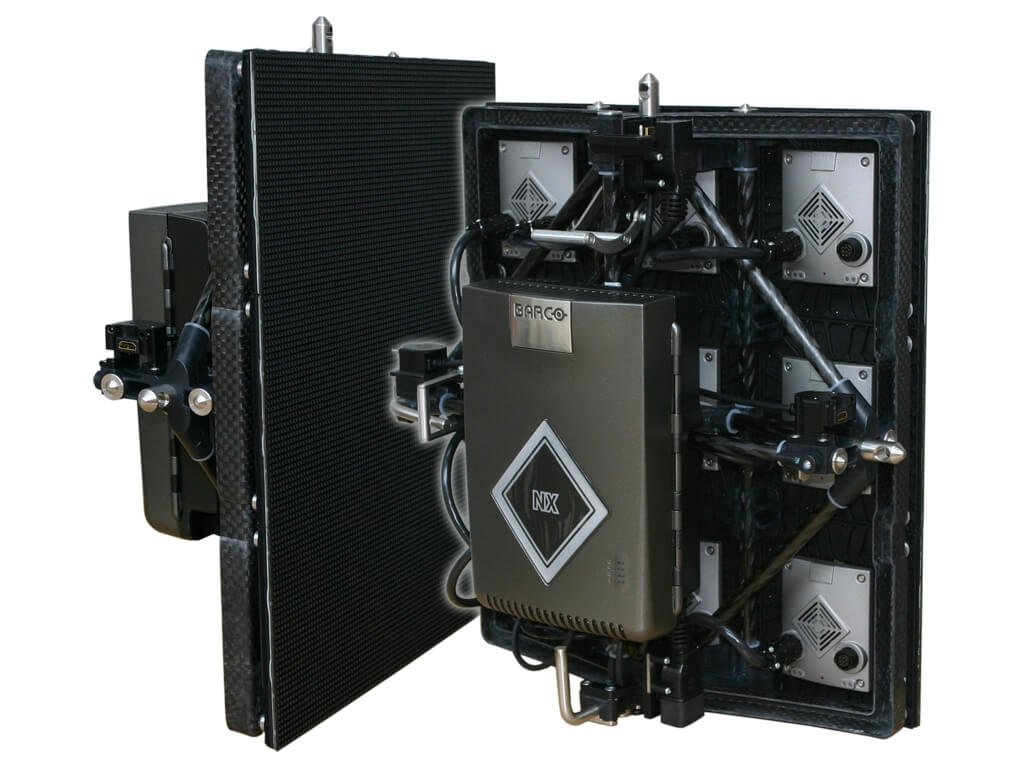

Seamless and lightweight

  • The Structure of The NX-4 in made of carbon fiber and is designed in a framework — rather than a box.
  • The result is a support system far stronger, far lighter, and ten times less sensitive to deformation extremely tight tolerances along all three structural axes (x, y and z).
  • Weight of the NX-4 tile including structure and cables is 59kg/sqm, 21% less than ILite 6XP.

Consistent uniformity over time

  • By using next generation, highly efficient LED dies and running the LED's at lower temperatures, extremely high brightness levels have been achieved at much lower currents. It’s simple — less stress equals longer life.
  • Within the LED itself, the use of silicon instead of epoxy resin also slows the aging process, and provides a greater degree of reliability in humid operating conditions.
  • NX-4’s new “tri-color” LED calibration further ensures display stability and uniformity over time.
  • With the product’s brightness declining to only 85% after 60,000 hours

Brilliant colors, breathtaking grayscales

  • 16-bit processing and new “tri-color” calibration on all three colors
  • Reaching new levels of color depth (281 trillion colors), uniformity, and grayscale range
  • With a tight selection of LED's and the 16- bit processing power of the NX-4, tiles can be calibrated to a larger color triangle – one that is actually wider than the HDTV standard, delivering vibrant images with deep, uniform colors across the entire display surface.

Get creative

  • NX-4 also employs the same small modular concept as Barco’s renowned OLite series
  • allowing the tiles to be used either as a standard integral display, or split apart for creative designs.
  • And when used in conjunction with Barco’s Director Toolset, you can build displays of any shape or form — limited only by your imagination.

Remove the tools, improve the serviceability

  • No tools or cables are required to set up and secure an NX-4 LED wall, or take it apart for service.
  •  And because the Mag-frame is essentially an open structure, there’s easy access to every module, the control unit and interface boards.
  • The control unit can even be opened while the tile is fully operational.
  • For added serviceability, if any shader is damaged, they are easily removed and replaced.
  • The inter-tile locking system has also beenre-designed for ease of setup, with simplified electrical connections, accurate “click” prelocks, robust horizontal and vertical locking mechanisms
