Nio Color 2MP LED MDNC-2221

2MP high-bright color display system

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Color medical display with 1600 x 1200 resolution
  • Barco LED technology to unveil the subtlest details

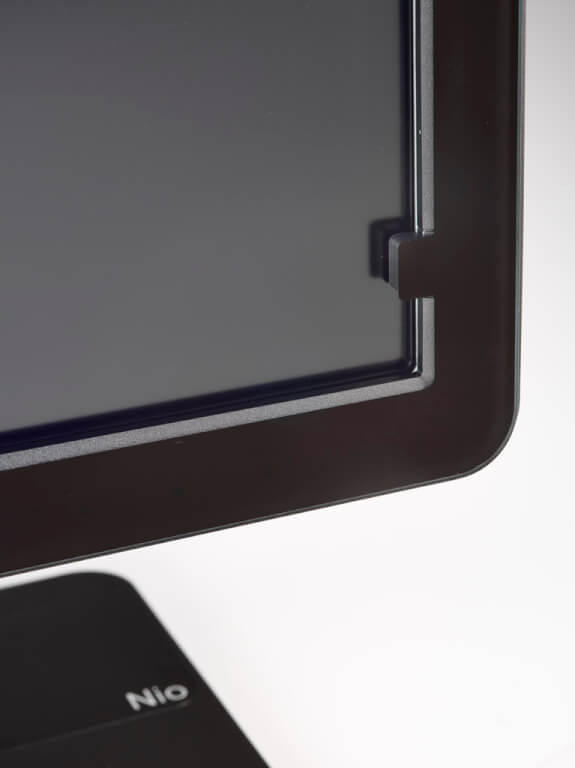

  • Front sensor for on-demand image quality checks

Nio Color 2MP LED is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.

Confident color reading

Equipped with high-bright LED backlights, Nio Color 2MP LED delivers excellent brightness and more shades of gray to detect subtle details more quickly. The unique front-of-screen sensor ensures you see consistent and precise images at all times for confident diagnoses.

On-demand image quality checks

The front-of-screen sensor on Nio Color 2MP LED, which works seamlessly with Barco's online MediCal QAWeb solution for automated Quality Assurance and on-demand calibration, makes sure you are viewing perfect DICOM images.

An excellent investment

The Nio Color 2MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which impacts maintenance and operational costs. Additionally, the LED backlights offer a long lifetime - even at high brightness - providing an excellent return on your investment.

Specifikace

Screen technology IPS-Pro
Active screen size (diagonal) 540 mm (21.3")
Active screen size (H x V) 432 x 324 mm (17.0 x 12.8")
Aspect ratio (H:V) 4:3
Resolution 2MP (1600 x 1200 pixels)
Pixel pitch 0.27 mm
Color imaging Yes
Gray imaging Yes
Bit depth 30 bit
Viewing angle (H, V) 178°
Uniformity correction ULT
Ambient light presets Yes, reading room selection
Ambient light sensor Yes
Backlight Output Stabilization (BLOS) Yes
Front sensor Yes
Maximum luminance (panel typical) 800 cd/m²
DICOM calibrated luminance 500 cd/m²
Contrast ratio (panel typical) 58,33402778
Response time ((Tr + Tf)/2) (typical) 10 ms
Housing color RAL 9003 / RAL 9004
Video input signals 1x DVI
  1x DisplayPort
USB ports 1x USB 2.0 upstream (endpoint)
  2x USB 2.0 downstream
Power rating 24 VDC, 3.75 A
Power requirements This device shall only be powered by the following medical approved power supply:
  Bridgepower, type JMW190KB2400F11
  Ratings marked on the medical power supply:
  Input rating: 100–240 VAC, 2 A, 50–60 Hz
  Output rating: 24 VDC, 3.75 A
Power consumption 50 W (nominal)
  < 1 W (hibernate)
  < 1 W (standby)
Dimensions with stand (W x H x D) Portrait: 378 x 525~625 x 235 mm
  Landscape: 491 x 466~566 x 235 mm
Dimensions w/o stand (W x H x D) Portrait: 378 x 491 x 83 mm
  Landscape: 491 x 378 x 83 mm
Dimensions packaged (W x H x D) 655 x 388 x 495 mm
Net weight with stand 11.3 kg
Net weight w/o stand 6.3 kg
Net weight packaged 15.5 kg (without accessories)
Tilt -5° to +25°
Swivel -30° to +30°
Pivot 90°
Height adjustment range 100 mm
Mounting standard VESA (100 mm)
Recommended modalities All digital images, except digital mammography
Certifications CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product)
  CE - 2014/30/EU
  CE - 93/42/EEC; A1:2007/47/EC class II b
  IEC 60601-1(ed.3); IEC 60601-1(ed.3 am1)
  ANSI/AAMI ES60601-1(2005+C1:09+A2:10+A1:12)
  CAN/CSA-C22.2 No. 60601-1(2014)
  EN 60601-1-2:2015
  EN 60601-1:2006/A11:2011/A12:2014; EN 60601-1:2006/A1:2013
  CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2012
  KC
  VCCI
  FCC class B
  ICES-001 Level B
  FDA 510(k)
  RoHS
Supplied accessories User guide
  Documentation disc
  System disc
  Video cable
  Mains cable(s)
  USB cable
  External power supply
QA software MediCal QAWeb
Warranty 5 years, including 20000 hrs backlight warranty
Operating temperature 0 °C to 35 °C (15 °C to 30 °C within specs)
Storage temperature -20 °C to 60 °C
Operating humidity 8% to 80% (non-condensing)
Storage humidity 5% to 85% (non-condensing)
Operating pressure 70 kPa minimum
Storage pressure 50 to 106 kPa
