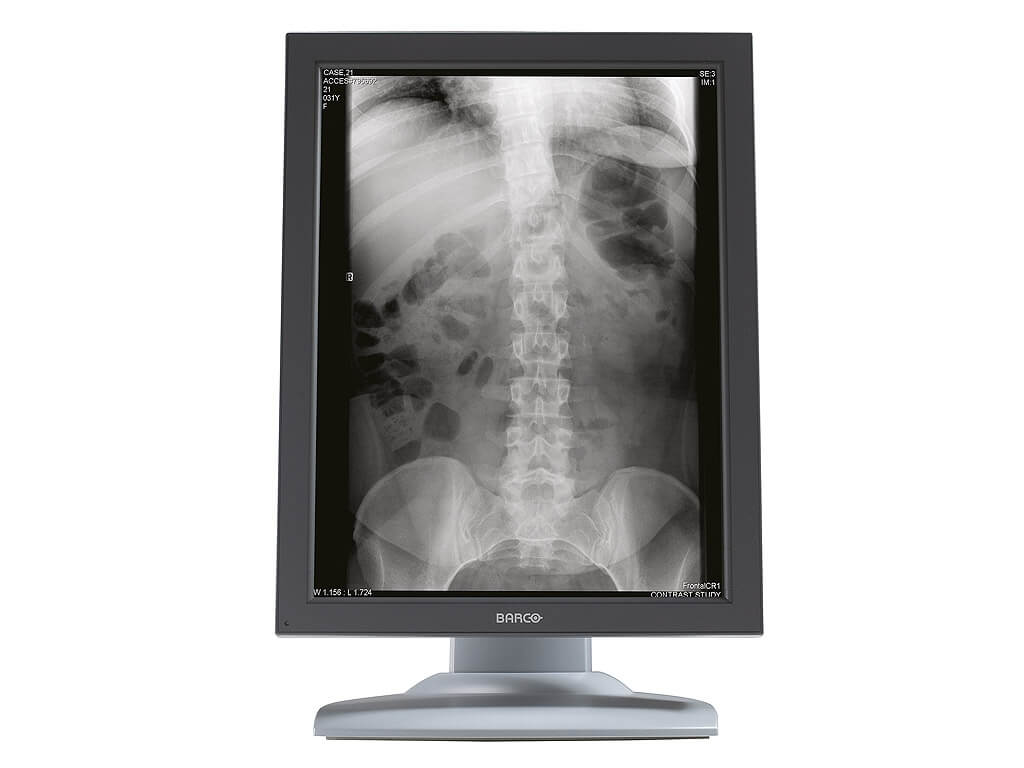

Nio 3MP E-3620

Displej pro diagnostiku s rozlišením 2 048 x 1 536 zobrazuje snímky ve vysoké škále stupňů šedi. Poskytuje čistý obraz a vynikající pozorovací úhel. BLOS zaručuje rychlý start obrazu a stabilizaci světelného výkonu. Vhodný pro širokou škálu lékařských apl

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

Nio is Barco's flexible, industry-standard display solution for diagnostic imaging. Nio 3MP provides image crispness and an excellent viewing angle in a 2048 x 1536 resolution.

High-quality imaging

The Nio 3MP brings high brightness, exceptional crispness and an excellent viewing angle to your readings. Backlight Output Stabilization (BLOS) technology guarantees fast power-up and continuously stabilizes the luminance output of the LCD’s backlight.

Fully transparent calibration and QA

Barco's Nio 3MP is bundled with MediCal QAWeb for automated DICOM calibration, Quality Assurance, display asset management, problem solving and reporting, guaranteeing maximum diagnostic confidence and uptime of your PACS display systems.

The Nio 3MP display system includes:

A 3 MegaPixel flat panel display
MediCal QAWeb software for automated calibration and Quality Assurance
A high-speed, high-performance display controller: check the compatibility matrix


Features:

High-brightness, image crispness and an excellent viewing angle
High-speed display controllers for maximum workflow efficiency
Improved diagnostic confidence with Barco's MediCal QAWeb program for Quality Assurance of PACS displays
Long-term image confidence with Barco’s Backlight Output Stabilization (BLOS) technology
Perfect color matching between displays
Protective front cover, protecting your valuable LCD against damage from intensive use in clinical rooms


Specifikace

Screen technology TFT AM LCD Dual Domain IPS
Active screen size (diagonal) 528 mm (20.8")
Active screen size (H x V) 424 x 318 mm (16.7 x 12.5")
Aspect ratio (H:V) 4:3
Resolution 3MP (2048 x 1536)
Pixel pitch 0.2070 mm
Color imaging No
Gray imaging Yes
Number of grayscales                    (LUT in/LUT out) 1024 grey levels (10/10)
Viewing angle (H, V) 170°
Uniform Luminance Technology (ULT) Yes
Per Pixel Uniformity (PPU) No
Ambient Light Compensation (ALC) No
Backlight Output Stabilization (BLOS) Yes
I-Guard No
Maximum luminance 1000 cd/m²
DICOM calibrated luminance (ULT off) 500 cd/m²
Contrast ratio (ULT off) 900:1
Response time (Tr + Tf) 50 ms
Video input signals DVI-D Dual Link
USB ports 1 upstream, 2 downstream
USB standard 1.1
Power consumption (nominal) 54W
Power save mode Yes
Dimensions with stand (W x H x D) Portrait: 382 x 577~637 x 249 mm
  Landscape: 488 x 472~532 x 249 mm
Dimensions w/o stand (W x H x D) Portrait: 382x 488 x 114 mm
  Landscape: 488 x 382 x x 114 mm
Net weight with stand 11.5 kg
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective PMMA cover
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications









UL 60601-1 1ST EDITION, CAN/ CSA-C22.2 NO. 601.1-M90, UL 60950-1 1ST EDITION, CSA C22.2 NO. 60950-1-03 1ST EDITION, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, DEMKO - EN 60950-1, CCC - GB9254-1998 + GB4943-2001 + GB17625.1-2003, VCCI, FCC class B, BSMI, KETI, FDA 510K, Rohs
Supplied accessories Getting Started Guide
  Quick-Installation Sheet
  Video cable (DVI Dual Link)
  Main cables (UK, European (CEBEC/KEMA),
USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
External power supply
Optional accessories NA
QA software MediCal QAWeb
Warranty 5 years
