Compact semi-rugged design

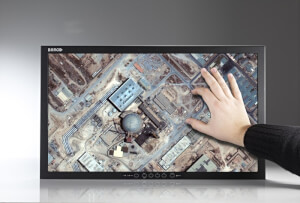

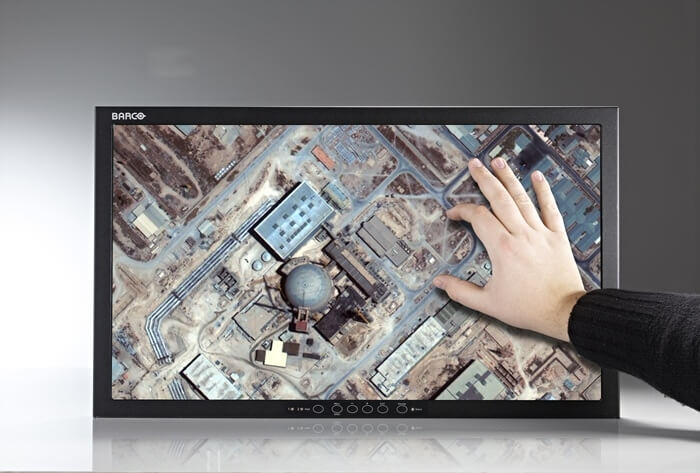

The MTC-361 is Barco's 24" multi-touch display with a medium ruggedization level. Its exceptionally slim display design and low weight make the MTC-361 perfectly suited for naval applications as well as ground mobile and fixed shelters.

Superior image quality
The MTC-361 features full HD resolution (1920 x 1080) and offers excellent performance in terms of brightness (500 cd/m²), crispness, contrast, and viewing angle. Equipped with highly efficient LED backlights, Barco's MTC-361 offers a long lifetime and reduces power consumption.

Multi-touch performance
The MTC-361 features intuitive multi-touch control with up to 4 individual touches, allowing fluent drag and drop actions. Its touch screen can be operated with finger tips, gloves or stylus. The optical touch technology excels with high touch accuracy, dust and water resistance and has no impact whatsoever on the display's optical performance.

Features & benefits
    24” semi-rugged display
    Full HD (1920 x 1080) resolution
    Exceptionally compact design
    Highly accurate multi-touch control
    Highly efficient LED backlights
    Dual DVI and dual VGA input (combined in 2 DVI-I connectors)


Screen size 24"
Display size 574.04 x 340.36 x 55.88 mm (wxhxd)
  22.6 x 13.4 x 2.2 inch (wxhxd)
Resolution 1920 x 1080
Brightness 500 cd/m² typical
Contrast ratio 1,000:1
Aspect Ratio 16:09
Backlight LED backlights
Viewing angle +/- 89° horizontal
  +/- 89° vertical
Inputs Dual DVI and dual VGA input (combined in 2 DVI-I connectors)
Power Supply 100VAC – 240VAC 47Hz – 63Hz autoswitch
USB Type B connector for touch screen communication
Bezel controls Input selection / Up / Down / Enter / Exit /
Standby in conjunction with OSD
Touch screen Optical touch technology
  Multi-touch supported (Win7 operating system required)
Vibration Air transport C-17 according MIL-STD-810F fig 514.5C-6 and table 514.5C-VIII
  US Highway truck according MIL-STD-810F fig 514.5C-1 and table 514.5C-VII
Shock MIL-STD-810F 10G peak, 11 msec ½ sine wave
Operating temperature 0°C to +50°C
Storage temperature -20°C to +60°C
Operating humidity 5 to 85% relative, non-condensing
Altitude Sea level to 10,000 ft (non-operating altitude: sea level to 40,000 ft)
EMI / EMC MIL-STD-461E tailored to ground support equipment
for Fixed Navy and Air Force equipment
Electrostatic discharge IEC 61000-4-2 (Case 2)
Weight 8.58 kg
