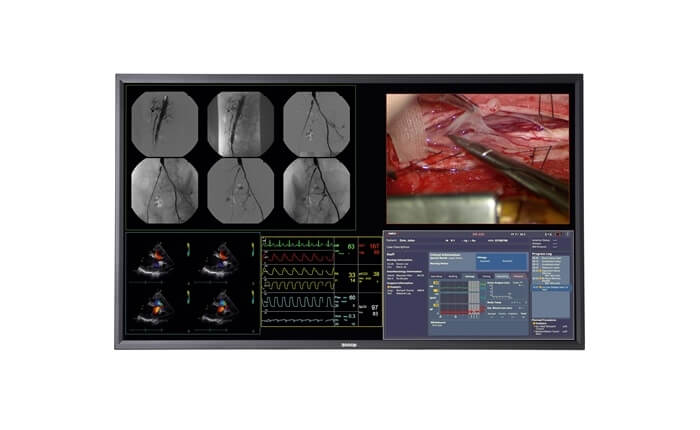

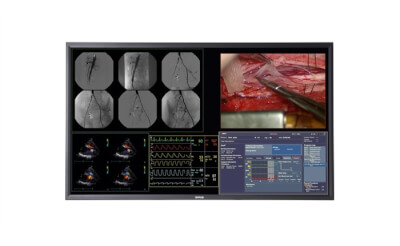

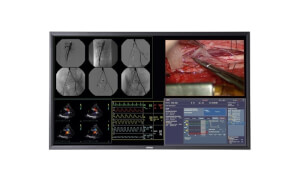

MDSC-8258

58" Quad HD chirurgický displej

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

The MDSC-8258 is a slimline, large-screen surgical display with LED backlight, featuring a 58-inch LCD panel (16:9) with Quad HD resolution (3840 x 2160).

Detail

Perfect images in the surgical suite
The MDSC-8258 has been designed for use in hybrid operating rooms, interventional X-ray and cardiovascular suites. The MDSC-8258 delivers accurate DICOM-compliant grayscale and color images with ultra-low latency, making it the preferred choice for real-time critical imaging.

Reliable and safe performance
The large-size, ultra high-resolution LCD screen offers a safer and more efficient alternative to multi-monitor configurations deployed in surgical environments. The optional configuration with a redundant power supply architecture (RL) ensures stable and reliable operation in the most critical conditions.

Benefits:
Ultra-high resolution (3840 x 2160 pixels)
Long-life, low-power LED backlight
Versatile input configurations (2 sets of 2 x Dual-Link DVI inputs)
High brightness, high contrast ratio, low-latency video processing
Slim and lightweight design; medical-grade compliance

Features
58-inch wide-screen color LCD with Quad HD resolution
Wide viewing angle
Advanced image processing algorithms
2 sets of 2 x Dual-Link DVI inputs

Specifikace

Response time 9.5 ms (typical)
Housing color Black
Video input signals DVI Dual Link
Power requirements (nominal) 90 ÷ 264 Vac 50Hz/60Hz
Power consumption 400 W (maximum)
Power consumption 35 W (stand-by)
Power save mode Yes
Dot clock 260 MHz DVI dual link (preferred)
Dimensions (W x H x D) Version w/o front glass: 1318.5 x 776 x 145.8 mm
Version with front glass: 1326.5 x 778 x 153.7 mm
Dimensions packaged (W x H x D) 1540 x 413 x 940 mm
Net weight 46 - 59 kg (depending on version)
Net weight packaged 68.5 - 83 kg (depending on version)
Mounting standard VESA (400 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities Endoscopy, Laparoscopy, PACS, PM, US, CT, MR
Certifications MDD 93/42/EEC, amended by 2007/47/EC Class I, IEC 60601-1:2005 + CORR. 1 (2006) + CORR. 2 (2007), EN 60601-1:2006 UL60601-1, 1st Edition, 2006-04-26, ANSI/AAMI ES 60601-1, 3rd edition:2005 EN 60601 3rd edition, CAN/CSA-C22.2 No. 601.1-M90, 2005, CAN/CSA-C22.2 No. 60601-1 (2008), IEC / EN 60601-1-2: 2007, EN 55011 / CISPR11
Supplied accessories User Guide
Warranty 2 years
Operating temperature 10-35°C for performance / 0-40°C for safety
Storage temperature -20 ÷ +60°C
Operating humidity 10 ÷ 90% (non-condensing)
Storage humidity 10 ÷ 90% (non-condensing)
Operating altitude 3000m (maximum)
  12000m (maximum)
