26" full HD chirurgický displej


Základní informace

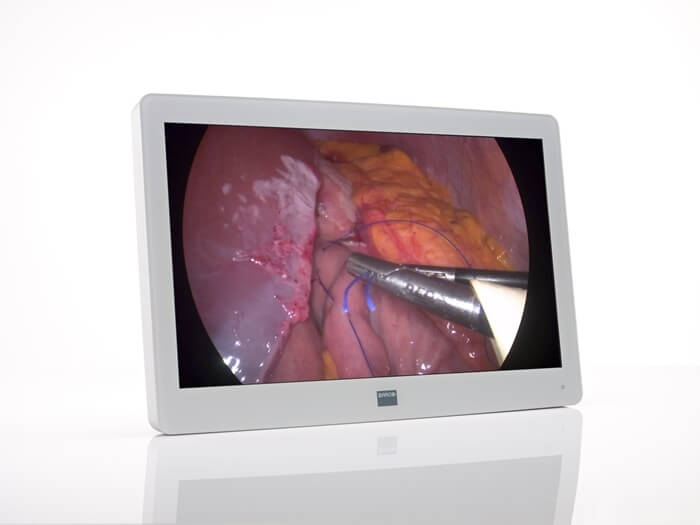

Barco’s MDSC-2226 is a 26-inch near-patient surgical display with LED backlight. Purpose-built for the operating room, the MDSC-2226 offers an easy-clean design, smart mechanics and the most detailed images in the procedure room today.


Ease of mind

Calibrated, artifact-free images

The display’s high brightness, high contrast and full HD resolution provide surgeons with excellent depth perception and the most accurate images. The MDSC-2226 presents images with unrivaled color and grayscale accuracy and with near-zero latency, making it perfectly suited for use with today’s state-of-the-art endoscopy camera systems. Thanks to its high-bright LED backlight with light output stabilization, the surgical display also ensures a long lifetime and image consistency across displays.

Multi-source, multi-display imaging

With its broad input connectivity, the MDSC-2226 offers flexible multi-modality imaging (PiP & PaP) in new integrated operating rooms.The 26-inch display is also the first surgical display offering integrated functionality (optional) for use with Barco’s Nexxis for OR solution, ensuring smooth distribution of uncompressed video and data over the IP network without delay.

Ease of installation

The MDSC-2226 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms. Available in three models, this surgical display also features a host of connectivity options and remote control.

Ease of use

Barco’s MDSC-2226 allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing (front protection level IPX5), and protective screen cover. The fanless design avoids the spread of contaminants.


Screen technology TFT AM LCD (LED backlight)
Active screen size (diagonal) 661 mm (26")
Active screen size (H x V) 576 x 324 mm (22.7” x 12.8")
Aspect Ratio 16:09
Resolution 2MP (1920 x 1080)
Pixel pitch 0.3 mm
Color imaging Yes
Color support > 1 billion
Color gamut 100% ITU-R BT.709 HD standard
Viewing angle 178°
Maximum luminance 450 cd/m² (typ.)
Contrast ratio 1400 : 1
Housing color White
Video inputs DVI-I Single link (with HDMI support)
RGBS / YPbPr (4xBNC)
S-video (4-pin Mini DIN)
Composite video (1xBNC)
3G-SDI (1xBNC)*
VGA (on DVI-I)
DisplayPort (VESA std 1.1a)
DDI (Dual Digital Input): additional DVI-D and 3G-SDI input*
Nexxis MNA-120 decoder (for uncompressed video-over-IP)
*Not included in combination with Nexxis MNA-120 decoder
Video outputs DVI-D x1
S-video (4-pin Mini DIN)
Composite video (1xBNC)
3G-SDI (1xBNC)
DDI (Dual Digital Input) : additional 3G-SDI output
Remote Control RS-232 (D-sub p-pin)
Power requirements (nominal) 100-250 V / 47-63 Hz auto-switch
120W max
Power management DVI-DMPM states supported
Power On state
Active-Off state
OSD languages English, French, German, Spanish, Italian
Dimensions w/o stand
(W x H x D)
633 x 411 x 90 mm (24.9 x 16.2 x 3.5”)
Net weight w/o stand 9.5 kg (20.9 lbs) without power supply
Net weight packaged w/o stand 12.5 kg (27.6 lbs)
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective PMMA cover
Recommended modalities Endoscopy, US, X-ray
Regulation Compliance IEC60601 3rd Edition
Approvals/Marking: CE, C-UL-US, DEMKO
Safety (Medical equipment): IEC60601-1, UL60601-1, CAN/CSA C22.2 No. 60601-1-08
Electromagnetic compatibility: EMC Medical
EMC standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class B
Protection level: IP21 (with Protection screen) / Front face: IPX5 protection level
Green requirements: ROHS2, REACH, WEEE compliant
Supplied accessories User Manual
Mains cables: EU (CEBEC/KEMA) & US (Hospital grade UL)
External power supply
Optional accessories Barco MDSC surgical medical LCD display desk stand
Warranty 3 years
