MDSC-2224
24" full HD chirurgický displej
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace

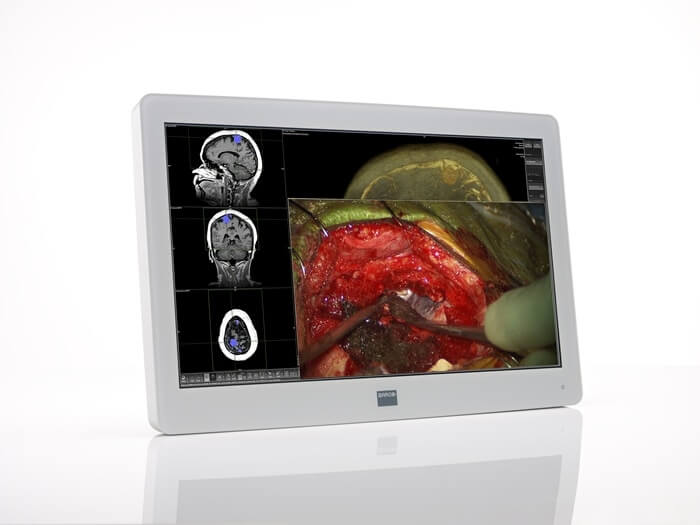

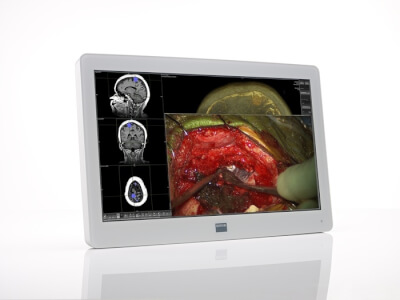

Barco's MDSC-2224 is a 24-inch near-patient surgical display with LED backlight, featuring full HD resolution and a wide color gamut. Purpose-built for the operating room, the MDSC-2224 offers an easy-clean design, smart mechanics and the most detailed images in the procedure room today.
Detail
Color-calibrated, artifact-free images
Thanks to its high brightness, high contrast and high resolution, the MDSC-2224 presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.
Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing, are your guarantee for detailed, sharp, and noise-free pictures, so you can detect the most subtle changes in tissue color.
Multi-source, multi-display imaging over IP
With its broad input connectivity, the MDSC-2224 offers the highest flexibility for multi-modality imaging (PiP & PaP), enabling reproduction of images from multiple sources and to multiple displays in the integrated operating room.
The 24-inch display is one of Barco's network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.
Designed for use in the operating room
Barco's MDSC-2224 allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing, and full screen protection. The fan-less design avoids the spread of contaminants.

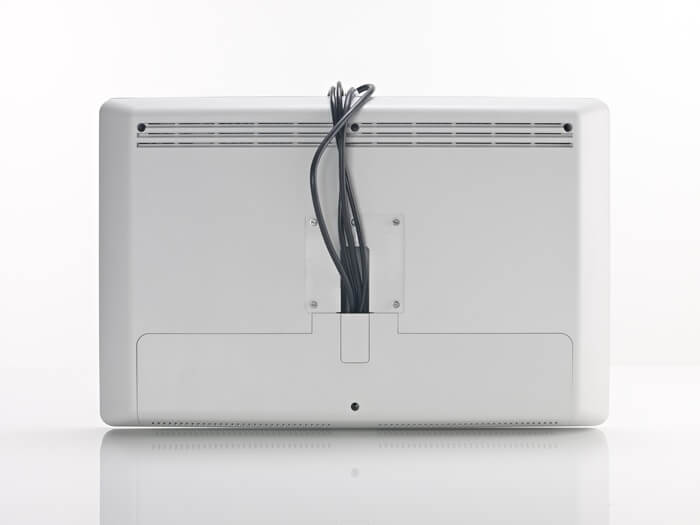

The display comes with a smart cable management system that hides the cables for a clutter-free set-up. It is light and compact, allowing easy (dual-monitor) mounting on surgical booms and spring arms.
Thanks to its high brightness, high contrast and high resolution, the MDSC-2224 presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.
Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing, are your guarantee for detailed, sharp, and noise-free pictures, so you can detect the most subtle changes in tissue color.
Multi-source, multi-display imaging over IP
With its broad input connectivity, the MDSC-2224 offers the highest flexibility for multi-modality imaging (PiP & PaP), enabling reproduction of images from multiple sources and to multiple displays in the integrated operating room.
The 24-inch display is one of Barco's network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.
Designed for use in the operating room
Barco's MDSC-2224 allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing, and full screen protection. The fan-less design avoids the spread of contaminants.
The display comes with a smart cable management system that hides the cables for a clutter-free set-up. It is light and compact, allowing easy (dual-monitor) mounting on surgical booms and spring arms.
Specifikace
| Screen technology | TFT AM LCD / S-IPS technology / LED backlight |
| Active screen size (diagonal) | 611.3 mm (24") |
| Active screen size (H x V) |
518.4 x 324 mm (20.4” x 12.7") |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Pixel pitch | 0.270 mm |
| Color imaging | Yes |
| Color support | 1073 million (10-bit) |
| Color gamut | Wide gamut (Adobe RGB 1998) |
| Viewing angle | 178° Hor / 178° Ver |
| Maximum luminance | 350 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Response time | 6 msec (GtG - typ) |
| Dot clock | (max) 165 Mhz |
| Gamma curve | Native, 1.8, 2.0, 2.2, 2.4, DICOM |
| Housing color | White RAL 9003 |
| Video inputs | Video input signals: |
| -DVI-I Single-Link (Digital & Analog – HDMI video support with HDCP) | |
| -Component Video RGBS / YPbPr (4xBNC) | |
| -S-video (4-pin Mini DIN) | |
| -Composite video (1xBNC) | |
| -3G-SDI (1xBNC) | |
| -DisplayPort (VESA std 1.1a) | |
| -Optional: integrated BARCO Nexxis network adapter | |
| Video input formats: | |
| -VGA & DVI: Up to 1920x1200 at 60Hz (reduced blanking) | |
| Maximum pixel clock: 165MHz | |
| Maximum Hor freq: 90kHz | |
| Maximum Ver freq: 75Hz | |
| -Standard PAL and NTSC for S-Video, Composite and Component | |
| -Component YPbPr/ RGBS: HDTV - up to 1080i & 1080p | |
| -SDI Format Supported: 625/25 PAL, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 1080p50, 1080p59.94, 1080p60 | |
| -SDI Compliance: SMPTE 425M (Level A), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 | |
| -Displayport 1.1a: up to 1920 x 1200 60Hz | |
| Video outputs | DVI-D |
| S-video (4-pin Mini DIN) | |
| Composite video (1xBNC) | |
| 3G-SDI (1xBNC) | |
| Remote Control | RS-232 (D-sub 9-pin) |
| Power requirements (nominal) | Power source for external power supply: 100 – 250 VAC / 47-63 Hz auto-switch |
| Power source for display power input: +24 VDC / 2.5A | |
| Power supply for external module: +5VDC ±10% @500mA (max) through the DVI connectors DVI-in & DVI-out (on pin 14 or pin 16 - OSD programmable) | |
| Power management | DVI-DMPM states supported |
| Power On state | |
| Active-Off state | |
| Power consumption (nominal) | less than 60 W (LED version) |
| OSD languages | English, French, German, Spanish, Italian |
| Dimensions w/o stand (W x H x D) | 595 x 414 x 84 mm (23,4” x 16,3” x 3,3”) |
| Net weight w/o stand | 7.7 kg (17.0 lbs) without power supply |
| Net weight packaged w/o stand | 10.0 kg (22.0 lbs) |
| Mounting standard | 100 x 100 mm VESA |
| Screen protection | IP21 / Front face: IPx5 |
| Double coated, anti-reflective PMMA / White RAL 9003 | |
| Recommended modalities | Endoscopy, laparoscopy, X-ray, CT, MR, US |
| Regulation Compliance | IEC60601 3rd Edition |
| Approvals/Marking: CE, C-UL-US, DEMKO, CCC | |
| Safety (Medical equipment): IEC60601-1, UL60601-1, CSA-C22.2 nr 601-1-M90 | |
| Electromagnetic Compatibility: EMC Medical EMC Standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class A | |
| Environment: ROHS-2, REACH, WEEE compliant | |
| Temperature | Operating: 0° - 40° C / Storage: -20° - 60° C |
| Humidity | Operating: 10% – 90% R.H. / Storage: 5% – 90% R.H. |
| Keyboard/mouse | Touch-sensitive, 7-key, backlit, bottom-right |
| Supplied accessories | User Manual, DVI Dual-Link cable 3.0m, Mains cables ( EU (CEBEC/KEMA) & US (Hospital grade UL)), External power supply |
| Optional accessories | Barco Surgical LCD Display Desk Stand, Barco MDSC Surgical Medical LCD Display Extension Cable 10m |
| Warranty | 3 years |
