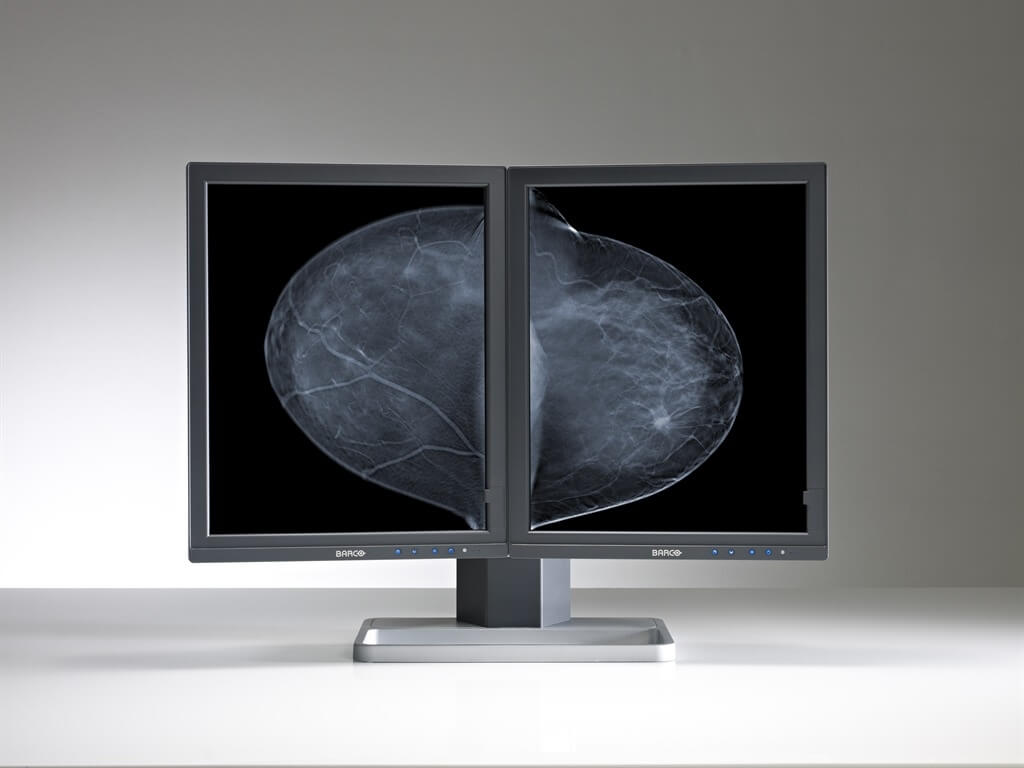

Mammo Tomosynthesis 5MP MDMG-5221

Mamografický displej Mammo Tomosynthesis 5MP byl vyvinut pro optimalizaci snímání a interpretaci digitální tomosyntézy prsu (typ tomografie). Tato průkopnická zobrazovací metoda významně zdokonaluje přesnost při zjištění rakoviny prsu.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • For multi-frame mammography & breast tomosynthesis
  • Eliminates motion blur
  • With hot light button for extra brightness

Optimized for digital breast tomosynthesis

Barco's Mammo Tomosynthesis 5MP has been developed to optimize reading and interpretation of digital breast tomosynthesis, a groundbreaking imaging modality that significantly improves accuracy of breast cancer detection. Its unique technologies for tomosynthesis visualization increase conspicuity of the smallest details, providing radiologists with a new degree of diagnostic confidence.

The Mammo Tomosynthesis 5MP is the first display system available for breast tomosynthesis. It is cleared by the US Food and Drug Administration (FDA) for use in standard and multi-frame digital mammography as well as breast tomosynthesis.

Quick readings, exceptional results

The Mammo Tomosynthesis 5MP ensures instant delivery of images without motion blur, increasing correct diagnosis and swift workflow.

Bright images, more details

Featuring twice the brightness of conventional systems and lasting twice as long, the Mammo Tomosynthesis 5MP offers unrivalled image precision and visibility of the most subtle details.

Less noise, improved accuracy

Screen noise often hides subtle details. That's why the Mammo Tomosynthesis 5MP ensures pixel-perfect images without disturbing screen noise, offering clearer visibility of differences in tissue density.

Guaranteed compliance, diagnostic confidence

 Automated checks of contrast and luminance, in combination with an online calibration service, result in an optimal working environment and worry-free readings.

Specifikace

Screen technology IPS-TFT LCD
Active screen size (diagonal) 541 mm (21.3")
Active screen size (H x V) 338 x 422 mm (13.3 x 16.6")
Aspect ratio (H:V) 4:5
Resolution 5MP (2048 x 2560 pixels)
Pixel pitch 0.165 mm
Color imaging No
Gray imaging Yes
Bit depth 10 bit
Viewing angle (H, V) 178°
Uniform Luminance Technology (ULT) Gray PPU
Ambient Light Compensation (ALC) Yes, reading room selection
Ambient light sensor Yes
Backlight Output Stabilization (BLOS) Yes
Front sensor Yes, I-Guard
Maximum luminance (panel typical) 2100 cd/m²
DICOM calibrated luminance 1000 cd/m²
Contrast ratio (panel typical) 39,58402778
Response time (Tr + Tf) (typical) 15 ms
Housing color Gray
Video input signals DVI-D Dual Link
  DisplayPort
USB ports 1x USB 2.0 upstream (endpoint)
  3x USB 2.0 downstream
Power requirements External power supply (100-240 Vac, 50-60 Hz)
Power consumption 57 W (nominal)
  < 0.7 W (standby)
OSD languages English, German, French, Dutch, Spanish, Italian, Portuguese, Polish, Russian, Swedish, Chinese (simplified), Japanese, Korean, Arabic
Dimensions with stand (W x H x D) Single Head: N/A
  Dual Head System: 784 x 561~661 x 265 mm
Dimensions w/o stand (W x H x D) Single Head: 392 x 485 x 122 mm
  Dual Head System: N/A
Dimensions packaged (W x H x D) Single Head: 692 x 550 x 266 mm
  Dual Head System: 950 x 585 x 710 mm
Net weight with stand Single Head: N/A
  Dual Head System: 30.1 kg
Net weight w/o stand Single Head: 10.5 kg
  Dual Head System: N/A
Net weight packaged Single Head: 16.9 kg (without stand)
  Dual Head System: 50 kg (with stand)
Tilt -5° to +25°
Swivel -30° to +30°
Pivot N/A
Height adjustment range 100 mm
Mounting standard VESA (100 mm)
Screen protection Protective, anti-reflective glass cover
Recommended modalities All digital images, including digital mammography
Certifications CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2014/30/EU, CE - 93/42/EEC; A1:2007/47/EC class II b, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005, ANSI/AAMI ES 60601-1:2005 + C1:2009, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2012, KC, VCCI, FCC class B, ICES-001 Level B, FDA 510K, RoHS
Supplied accessories User guide
  Quick install sheet
  Documentation disc
  System disc
  Video cables (2x DisplayPort)
  Two sets of mains cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
  Two USB 2.0 cables
  Two external power supplies
  Film clip
  Keyboard light
Optional accessories Additional film clip (V622784)
  Additional keyboard light (B4100574)
  Graphics board
QA software MediCal QAWeb
Warranty 5 years, including 50000 hours backlight warranty
Operating temperature 0 °C to 35 °C (20 °C to 30 °C within specs)
Storage temperature -20 °C to 60 °C
Operating humidity 8% to 80% (non-condensing)
Storage humidity 5% to 85% (non-condensing)
Operating pressure 70 kPa minimum
Storage pressure 50 to 106 kPa
