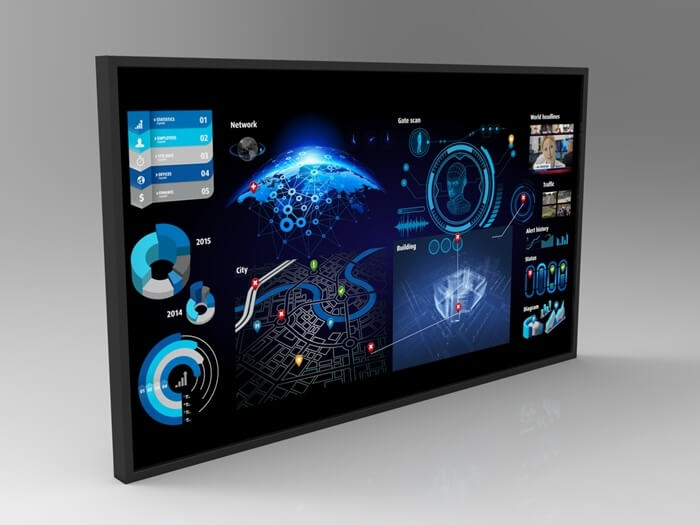

LDX-8482

Vysoce kvalitní displej Barco LDX-8482 je optimalizován pro použití ve firmách, které kladou velký důraz na spolehlivost. S úhlopříčkou 84" a skutečným rozlišením UHD (3840 x 2160 pixelů při 60 Hz) nabízí přesnost zobrazení detailů jako 4 Full HD displeje

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Základní informace

Barco's LDX-8482 is a large, high-quality display that was optimized for use in critical business environments. With a screen diagonal of 84" and a real UHD resolution (3840 x 2160 pixels @60 Hz), this screen offers the accuracy of 4 full HD displays. The display was designed for professional applications in which reliability is of utmost importance. This includes control rooms and crisis rooms, but also boardrooms, high-end meeting rooms, and Retail & Advertising.

High resolution for more content visualization

Offering the same resolution as 4 full HD displays, this 84" 8 megapixel canvas can display all the needed content with the right amount of detail. Picture-in-Picture support offers users the possibility to display even more information. Furthermore, using the display's integrated OPS slot, the functionality of the display can be further enhanced to include additional sources.

The reliability you need


For use in professional environments, a display needs to be as reliable as possible. Designed with the most durable components available, Barco's LDX-8482 will never let you down.

Specifikace

Resolution Optimal:
DisplayPort : 3840 x 2160 @60Hz
HDMI 1~4, OPS Slot : 3840 x 2160 @30Hz
VGA : 1920 x 1080 @60Hz
Maximum:
DisplayPort : 3840 x 2160 @60Hz
HDMI1~4, OPS DP port : 3840 x 2160 @30Hz
VGA : 1600 x 1200 @60Hz
Brightness 500 nits
Connectors DisplayPort(v1.2) x 1 / HDMI(v1.4b) x 4
OPS Slot (HDMI(v1.4b),DisplayPort(v1.1),RS232, Audio L/R)
VGA x 1 / PC Audio in / Audio Out
Communication Port RS-232 In
Service Port USB-A
Control Built-in OSDKey, External IR Remote controller
Image processing Integrated quad view input display
Bezel width 2.5 cm / 0.98"
Backlight LED
Power supply

AC 100V ~ 240V (50/60Hz), 2-5 Amps, Maximum

Power consumption Max: 500W
Standby: 0.5W (ECO mode)
Internal speaker Input : Max 2Vrms / Output : 10W x2
Horizontal frequency Analog : 31.5 ~ 67.5 KHz
Digital : 31.5 ~ 81 KHz
Heat dissipation 1878 BTU/h (w/o OPS-PC), max. 2288 BTU/h (with OPS-PC)
Vertical frequency Analog : 50 ~ 71Hz
Digital : 50 ~ 71Hz
Operating temperature 0°C ~ 40°C, 85% RH
Storage temperature -20°C ~ 60°C, 90% RH
Features • Aluminum & Black hair line design
• VESA Mount
• Real UHD@60Hz : Only DisplayPort1
• 4 x 1080p quadrants : Only Digital input (HDMI1~4, DP 1, OPS Slot) , Input signal resolution : 1080p 60Hz
• PBP Support : 2 split screen (Only Digital input)
• Color Temperature : Studio(3200K) , Warm(7100), Normal(10000K), Cool(11500K)
• OPS Slot Support(DisplayPort (v1.1) , HDMI (v1.4b) , RS-232, Audio L/R )
• RS-232 Support
• Speaker : 10W x2 (8ohm) , THD=10%
• OSD Language : English , French , German , Italian , Russian, Spanish, Danish, Dutch, Norwegian, Finnish, Swedish, Korean
Weight 68 kg
