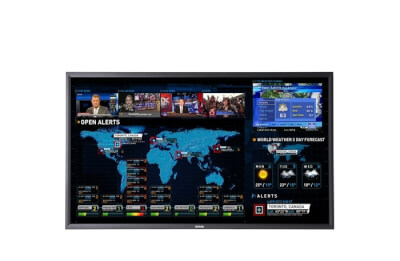

58" Quad HD LCD displej s LED podsvícením


Základní informace

LDX-58 RL představuje 58“ (16: 9) LCD displej s LED podsvícením a rozlišením Quad HD (3 840 x 2 160). Kombinuje vysoké rozlišení s vynikajícím kontrastním poměrem, vysokým jasem a širokým pozorovacím úhlem.


Active screen diagonal 58"
Display technology SMVA
Active area 1270 x 721 mm
Backlight Direct LED
Resolution QFHD
Pixel density 3840 x 2160 Pixels x 3 colors
Aspect Ratio 16:09
Brightness 700 cd/m² typical
Contrast ratio 4000:1 (max.)
Response time 8.5 ms typical
Color depth 10 bit
Viewing angle 176° (H) , 176° (V) typical
Surface treatment Anti-glare coating (haze 1%)
Color gamut 9300 K / 72% NTSC
Optical Transfer Function NATIVE / COLOR / USER LUT
Color temperature From 2000 K to 12000 K (with COLOR Transfer Function selected)
Gamma curve Adjustable from 1.4 to 3.2 (with COLOR Transfer Function selected)
Backlight lifetime (half brightness) 50,000 hours
Lifetime 35,000 hours (calculated)
Frame rate 60 Hz
Video inputs 2 x Dual Dual-Link DVI, selectable
Local Control Keypad (5 keys, OSD assisted)
Remote Control Serial RS-232 (D-Sub9) or Serial Link over Ethernet (RJ45) selectable
Power input 100 - 240 Vac 50 / 60Hz
Power consumption 230 W typical (operating)
Operating temperature + 0 to +35 °C (operating)
-20 to +60 °C (storage)
Operating humidity Less than 90% RH (operating)
Less than 95% RH (storage)
Dimensions Width: 1318 mm
Height: 776 mm
Depth: 146 mm
Weight 48 kg
Mounting VESA 400
Approvals EN55011 - Class A, CISPR11 - Class A


The LDX-58 RL is a large-screen LED-backlit personal workstation display, featuring a 58-inch LCD panel (16:9) with Quad HD resolution (3840 x 2160). It was designed for collaborative decision-making, combining a very high resolution with excellent contrast ratio, high brightness, and a wide viewing angle.

The large-size, ultra high-resolution LCD screen offers a more efficient alternative to multi-monitor configurations. The LDX-58 RL fits the requirements of a wide range of applications, including control rooms, break-out rooms, collaboration rooms, crisis operations and war rooms, etc.

Perfect images

To allow operators to react on real-time events in the fastest time possible, the LDX-58 RL's special video controller design use no frame buffering. This results in a minimal delay between input signal and display (typically 10 ms). In order to benefit from the large screen size and resolution, the LDX-58 RL has two sets of inputs, both arranged as 2X Dual-Link DVI. Using a local keyboard, you can switch between the inputs. What's more, the LDX-58 RL is also fully integrated with Barco's TransForm N family of controllers.

The display's light haze type LCD finishing, is the ideal compromise between perfect optical quality and the minimization of ambient reflections. To even further emphasize its versatility, the LDX-58 RL offers a variety of settings that make it suitable for any kind of imaging.

Reliable and safe performance

Its redundant power supply architecture ensures stable and reliable operation in the most critical conditions. What's more, an internal microcontroller continuously monitors the display's operation, to detect minor malfunctions at first notice. And last but not least, the ventilation system was designed for low impact on the controlled air flow of control rooms.

Klíčové prvky

Ultra-high resolution (3840 x 2160 pixels)
Long-life, low-power LED backlight
Versatile input configurations (2 sets of 2 x Dual-Link DVI inputs)
High brightness, high contrast ratio, low-latency video processing
Slim and lightweight design
