LDAT™

Barco's LDAT™ marks reference patterns to effectively align display channels.

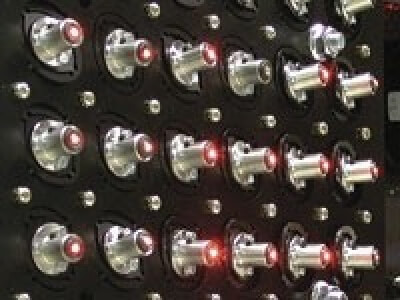

The LDAT™ provides a solution for up to 30 dedicated laser light sources which can be independently directed to points on the screen. Multiple arrays are used to mark a complete multi-channel system.
Barco's LDAT™ is a permanent maintenance tool to verify the proper alignment of the display system.

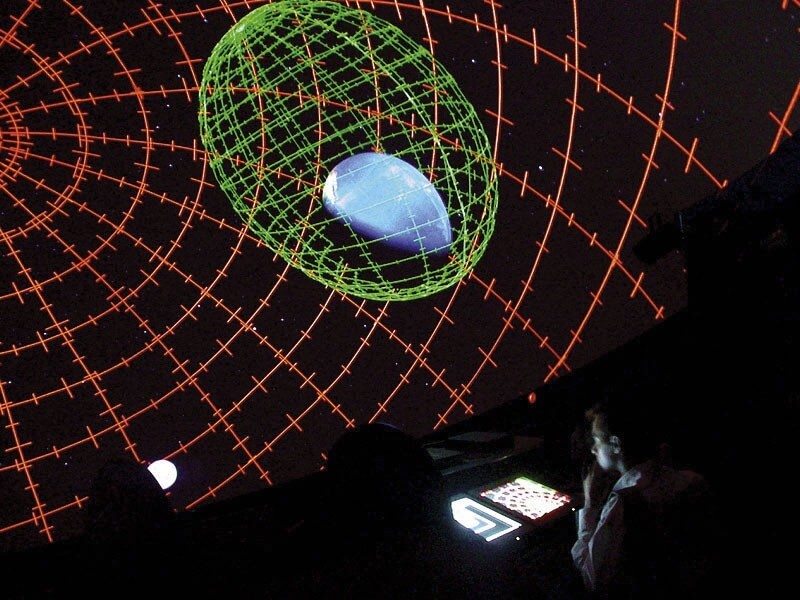

Polaris™, Barco's own pattern generating program, generates the necessary test patterns projected by the display system to match the geometry onto the fixed reference pattern provided by the LDAT™.
