FR12 série

Display
Technology
    Remote Light Source technology DLP projector
Concept
    Light source located separately, and remotely, from projection head
3D support
    INFITEC EX® 3D
Colour wheel options
    N/A
Resolution
        SXGA+ (1400 x 1050)
        1080p (1920 x 1080)
        WUXGA (1920 x 1200)
Brightness
    Up to 3300 lumens (With 10m LLG)
Contrast
    Up to 3000 : 1 (on/off, prism less optical design)
Aspect ratio
        4:3 (SXGA+)
        16:9 (1080p)
        16:10 (WUXGA)
Displayable colours
    30 bit RGB
Image processing latency
    ~22ms on graphics port
Compatibility
Computer compatibility
    WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA
    1920x1080 - 640 x 480 pixel resolution
    custom formats available
    RGBHV, RGBS, RGsB
Horizontal scan frequency
    15 - 150 kHz (resolution dependent)
Vertical scan frequency
    48 - 190 Hz (resolution dependent)
Video compatibility
        EDTV (576p, 480p)
        HDTV (1080p, 1080i, 720p)
        SDTV (576i, 480i)
        NTSC, PAL, SECAM

FR12 series
The FR12 projector head is based on the successful F12 projector series and includes the same high performance signal compatibility with high resolution digital and analog signals including HDMI, DVI and HD15 inputs. Power, control and signal connection panel on the FR12 is the same layout used on the F12. The FR12 is available in three native resolutions: WUXGA, 1080p, and SXGA+ for professional applications, with options for colorwheel and professional-grade lens configurations.

The Remote Light Source

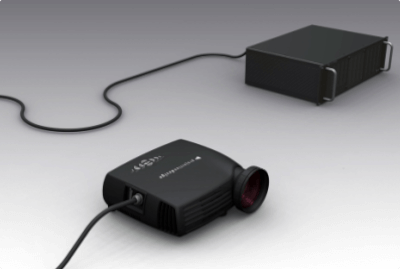

The patent pending FR12 Remote Light Source (RLS) concept relocates the lamps and colorwheels from the projector to a rack-mount enclosure positioned up to 30m away from the projector head. Light from the RLS illuminates the imaging head via the innovative Liquid Light Guide (LLG). The result is a compact, ruggedized, virtually maintenance-free projector with near-silent operation and simplified maintenance for the lamp. Since there’s no lamp in the projection head, the FR12 is capable of installation without restriction on projector orientation, including portrait mode and other extreme projector angles – vastly improving the range of applications for the FR12.

The Liquid Light Guide
The Liquid Light Guide (LLG) connects the FR12 to the Remote Light Source. The LLG is filled with a pure water-based liquid which efficiently transmit light from the RLS to the FR12. The LLG is available in three installation-ready configurations 10, 20 and 30 metre in length, which means that the FR12 projection head can be located well away from the RLS isolating the image from the heat and fan noise.

RealColor colour management
Like the F12, the FR12 projector head is fully compatible with the projectiondesign RealColor colour management system. RealColor provides a unique way to quickly calibrate and set up perfectly matched images for any number of projectors. RealColor can alter imagery by changing simple characteristics such as the colour temperature of the image – to adjust perfectly along the black body curve, or very complex attributes such as relative saturation and x/y coordinates for each colour.

For a broad range of applications
FR12 RLS configuration options make this innovative system an ideal solution for noise-sensitive installations such as compact control rooms and other 24/7 installations, small post production suites, and its light weight design makes the FR12 ideal for motion platforms and other simulators where access with traditional projectors is limited.

Ultra simple maintenance
The FR12 projector head and Liquid Light Guide necessitate extremely low maintenance. The main maintenance activities are performed at the rack-mounted RLS, making periodic lamp replacement easy with quick access to the lamp holder.

ProNet 2.0 Compatible
Network-based projector asset management and control is available through the acclaimed ProNET 2.0 control software included with all projectiondesign projectors.
