FLM R22+

Projektor FLM R22+ se prokazatelně osvědčil v mnoha aplikacích. Ať už jde o instalaci vnitřní nebo venkovní, díky světelnému výkonu poskytuje jasný obraz i za silného okolního světla, a tříčipová DLP technologie zaručuje realistický, sytý obraz. Díky zodo

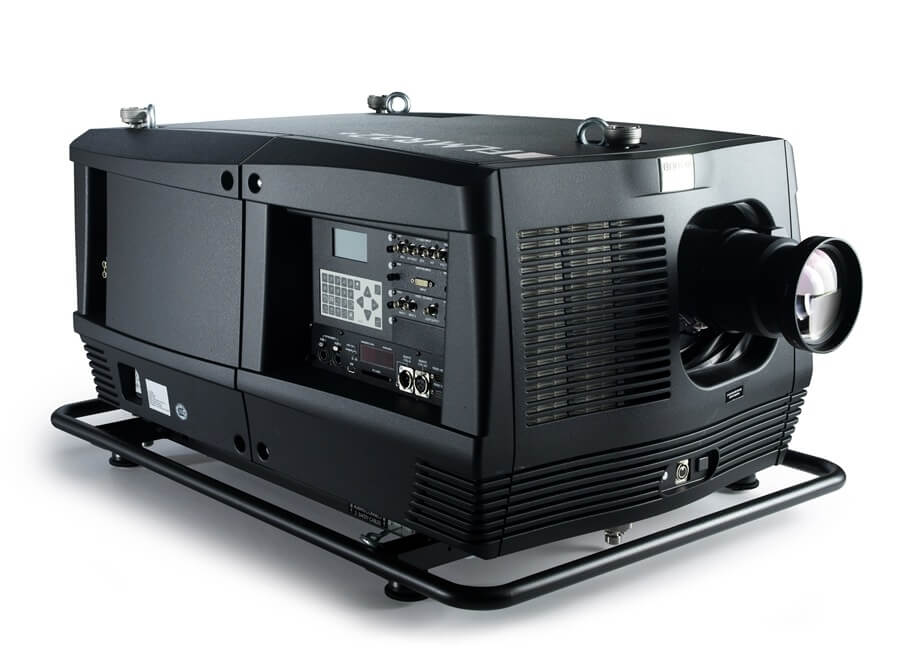

Barco's FLM-R22+ is an ultra-bright, durable projector with picture-in-picture capabilities. It is a perfect fit for any large venue that requires extra brightness to show clear, crisp images in a luminous environment.

Powerful projection for large venues
Thanks to its 22,000 lumens light output, the FLM-R22+ is able to display widescreen, high-contrast images of superior quality even in venues with lots of ambient light. Through its superior video processing and picture-in-picture capabilities, you can make your presentations more interactive and energizing without the need for extra peripherals.

Most silent projector in its class
The FLM-R22+'s liquid cooling technology cuts noise levels to a minimum, making it one of the most silent projectors in its class. The FLM is also equipped with a sealed optical engine that prevents dust, smoke or other environmental contamination from affecting its image quality.


Projector type SXGA+ 3-chip DLP digital projector
Technology 0.95" DMD™ x3
Resolution 1400x1050
Brightness 22,000 center lumens
21,000 ANSI lumens
Contrast ratio 1,700:1
2,200:1 (high contrast mode)
Brightness uniformity 90%
Aspect Ratio 4:03
ScenergiX Horizontal and vertical edge blending
Lens type TLD+
Lenses TLD+
Optical lens shift Vertical: -10% to +110%
Horizontal: -50% to +50% (on zoom lenses)
Color correction P7
Lamps 3kW xenon
Lamp lifetime 1,000 hours
Transport with lamp Yes
Lamp house, quick replace Yes
Customer bulb replace Yes
Lamp warranty (field replace/ factory replace) 90 days, 500 hours / pro rata 750 hours
Sealed DLP™ core Standard
Optical dowser Standard
Picture-in-picture Two sources simultaneously
Orientation table - ceiling - side (portrait) - vertical
DMX 512 Optional
WARP Preset values + custom
integrated web server N/A
CLO (constant light output) Standard
3D Passive Infitec (optional)
Inputs DVI(HDCP); 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video): SDI/HDSDI
Optional Inputs DVI(HDCP); 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); SDI/HDSDI
Input Resolutions From NTSC up to UXGA (1600x1200) incl. HD (1920x1080)
max. pixel clock 165 MHz
Software tools Projector Toolset
Control XLR wired + IR, RS232
Network connection 10/100 base-T, RJ-45 connection
Power Requirements 220-240V / 50-60Hz
Max. power consumption 3,500W
Noise level (typical at 25°C/77°F)" 56dB(A)
Operational ambient temperature 0-40°C / 32°-104°F
Operational humidity 0-80% (non condens)
Dissipation BTU max 11,942 BTU/h
Dimensions (WxLxH) 707 x 1025 x 548mm
27.83 x 40.35 x 21.57 inches
Weight 99kg (218.25lbs)
Shipping Dimensions (LxWxH)
1200 x 980 x 760 mm
47.24 x 38.58 x 29.92 inches
Shipping Weight from Factory 151kg (333lbs)
Standard accessories Power cord, wireless/XLR wired rugged remote control
Certifications Compliant with UL1950 and EN60950 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS
Warranty 2 years
