FLM-HD20

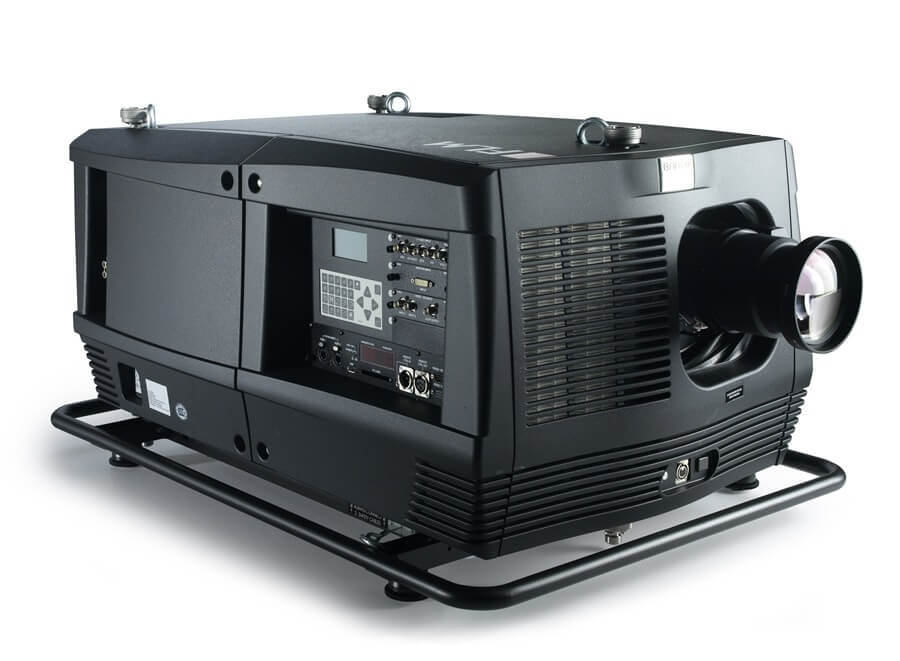

Projektor Barco FLM-HD20 představuje velmi spolehlivý přístroj s ultra-vysokým jasem, který disponuje veškerými schopnostmi HD zobrazování. Je určený pro velké sály, kde se vyžaduje zvláštní jas pro zobrazení ostrých snímků v osvětleném prostředí.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Powerful projection for large venues
Thanks to the FLM-HD20's 20,000 lumens light output, it can display widescreen, high-contrast images of superior quality even in venues with lots of ambient light. Through its superior video processing and picture-in-picture capabilities, you can make your presentations more interactive and energizing without the need for extra peripherals.
Most silent projector in its class
The FLM-HD20's liquid cooling technology cuts noise levels to a minimum, making it one of the most silent projectors in its class. The FLM is also equipped with a sealed optical engine that prevents dust, smoke or other environmental contamination from affecting its image quality.
Thanks to the FLM-HD20's 20,000 lumens light output, it can display widescreen, high-contrast images of superior quality even in venues with lots of ambient light. Through its superior video processing and picture-in-picture capabilities, you can make your presentations more interactive and energizing without the need for extra peripherals.
Most silent projector in its class
The FLM-HD20's liquid cooling technology cuts noise levels to a minimum, making it one of the most silent projectors in its class. The FLM is also equipped with a sealed optical engine that prevents dust, smoke or other environmental contamination from affecting its image quality.
Specifikace
| Projector type | Full HD 3-chip DLP digital projector |
| Technology | 0.95" DMD™ x3 |
| Resolution | 1920x1080 |
| Brightness | 20,000 center lumens |
| 19,000 ANSI lumens | |
| Contrast ratio | 2,100:1 |
| 2,700:1 (high contrast mode) | |
| Brightness uniformity | 90% |
| Aspect Ratio | 16:09 |
| ScenergiX | Horizontal and vertical edge blending |
| Lens type | TLD+ |
| Lenses | TLD+ |
| 0.73:1 | |
| 1.2:1 | |
| 1.25-1.6:1 | |
| 1.5-2.0:1 | |
| 2.0-2.8:1 | |
| 2.8-4.5:1 | |
| 4.5-7.5:1 | |
| 7.5-11.5:1 | |
| Optical lens shift | Vertical: -10% to +110% |
| Horizontal: -50% to +50% (on zoom lenses) | |
| Color correction | P7 |
| Lamps | 3kW xenon |
| Lamp lifetime | 1,000 hours |
| Transport with lamp | Yes |
| Lamp house, quick replace | Yes |
| Customer bulb replace | Yes |
| Lamp warranty (field replace/ factory replace) | 90 days, 500 hours / pro rata 750 hours |
| Sealed DLP™ core | Standard |
| Optical dowser | Standard |
| Picture-in-picture | Two sources simultaneously |
| Orientation | table - ceiling - side (portrait) - vertical |
| DMX 512 | Optional |
| WARP | Preset values + custom |
| integrated web server | N/A |
| CLO (constant light output) | Standard |
| 3D ready (optional) | Passive Infitec |
| Inputs | DVI(HDCP); 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video): SDI/HDSDI |
| Optional Inputs | DVI(HDCP); 5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); SDI/HDSDI |
| Input Resolutions | From NTSC up to UXGA (1600x1200) incl. HD (1920x1080) |
| max. pixel clock | 165 MHz |
| Software tools | Projector Toolset |
| Control | XLR wired + IR, RS232 |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power Requirements | 220-240V / 50-60Hz |
| Max. power consumption | 3700W |
| Noise level (typical at 25°C/77°F)" | 58dB(A) |
| Operational ambient temperature | 0-40°C / 32°-104°F |
| Operational humidity | 0-80% (non condens) |
| Dissipation BTU | max 12,625 BTU/h |
| Dimensions (WxLxH) | 707 x 1025 x 548mm |
| 27.83 x 40.35 x 21.57 inches | |
| Weight | 99kg (218.25lbs) |
| Shipping Dimensions | (LxWxH) |
| 1200 x 980 x 760 mm | |
| 47.24 x 38.58 x 29.92 inches | |
| Shipping Weight from Factory | 151kg (333lbs) |
| Standard accessories | Power cord, wireless/XLR wired rugged remote control |
| Certifications | Compliant with UL1950 and EN60950 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS |
| Warranty | 2 years |
