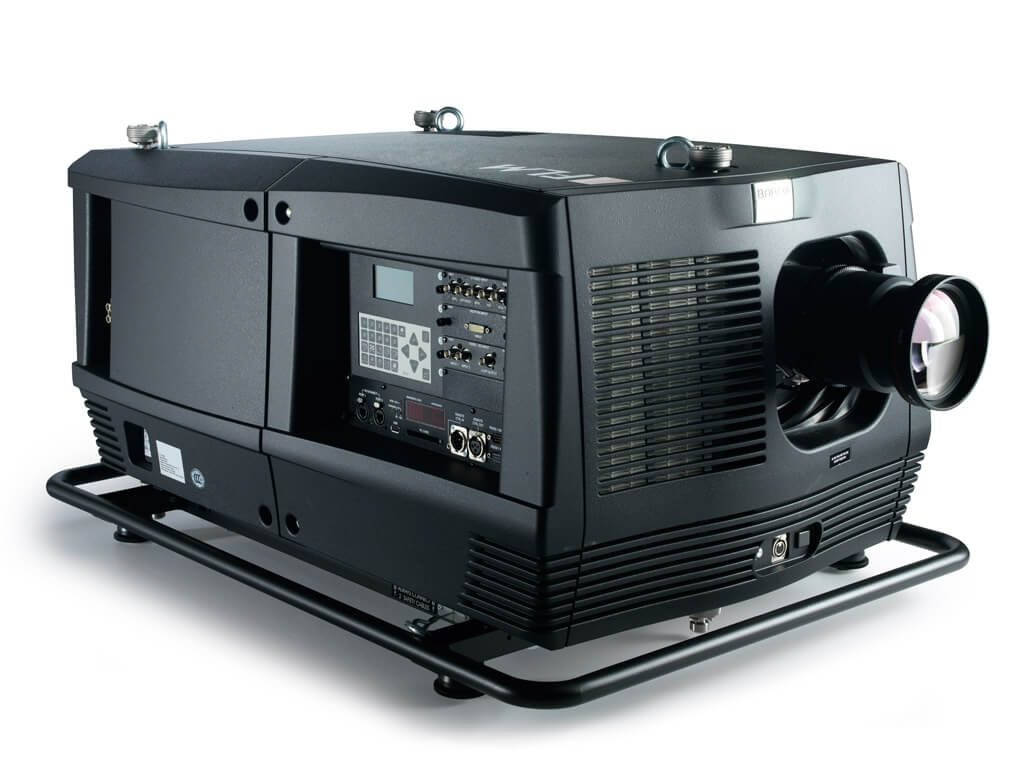

Projektor FLM HD14 s rozlišením 1080p HD a jasem 20.000 lm je velmi spolehlivý přístroj s veškerými schopnostmi HD zobrazování. To se skvěle hodí pro všechny velké sály, které vyžadují vysoký jas a ostrý obraz i za okolního osvětlení.



Powerful projection for large venues
The FLM HD20's 20,000 lumens light output means that it will be able to display widescreen, high-contrast images of superior quality even in venues with lots of ambient light. Through its superior video processing and picture-in-picture capabilities, you can render your presentations interactive and energizing without having to buy extra peripherals.

Most silent projector in its class
In its class, Barco's FLM HD20 offers some of the lowest noise levels known, thanks to its liquid cooling, which makes it a silent, unobtrusive ally for your venue. The FLM further features a sealed optical engine that prevents dust, smoke or other environmental contamination to its image quality. These features render it an optimal choice for anyone that is looking for the most reliable visualization available.

Technical specification:

Light Output 20,000 center lumen
19,000 ANSI lumens

1,920 x 1,080 (native)

Brightness uniformity > 90 % for the total screen
Contrast ratio 2100:1 (full field) – high contrast mode 2700:1 (full field)
Display 3-chip DLP HD (1920 x 1080 pixels, aspect ratio 16:9)
Convergence Max allowed convergence drift is 0.5 pixel.
This is checked on vertical and horizontal midlines only.
Corners are not applicable for convergence error.
This is measured with TLD 1.2 lens on axis.
  • Picture-in-picture
  • Seamless switching with effects
  • Standard light shutter
  • Rigging points
  • Carrying handle
  • High contrast mode
  • P7 color processing
  • internal warp module
Picture-in-picture 2 sources simultaneously
  • configurable 5 cable (BNC)
  • DVI
  • (HD)SDI (+ loop through)
  • DVI - HDCP
Outputs HDSDI/ SDI loop out
  • 1x RS-232C IN (D-9 connector)
  • 1x RS-232C OUT (D-9 connector)
  • 1x RS-232C IN (XLR connector)
  • 2x prop. protocol (RJ45 connector)
  • xlr and mini-jack for wired remote control
  • All current video sources (PAL, SECAM, NTSC) in Composite, S-Video, Component or RGB formats
  • All current HDTV sources
  • All computer graphics formats from VGA, SVGA, XGA, SXGA, full HD, UXGA to QXGA
  • Most Macintosh computers
  • Electronic workstations with a resolution up to QXGA (2048 x 1536 pixels @ 60 Hz)
  • Most computer sources with a pixel clock up to 300 MHz
  • DVI sources up to DC2K (2048 x 1080)
Input source compatibility max. input: up to QXGA (2048 x 1536)
Screen size From 1 - 12m / 3 - 39ft. recommended
Scan Frequencies pixel clock >162Mhz (up to QXGA @ 60Hz)
Network connection 10/100 base-T
On board display server Ethernet control standard
remote control projector over ethernet via Projector Toolset
Ambient Temperature Max 40°C (104°F)

3 KW Xenon

Warranty universal lamphouse: 750 Hrs

Lens Shift Vertical: -10% to +110%
Horizontal: -30% to +30%
(small differences exist per lens type, e.g. short throw lenses have less shift)
Lens encoders On zoom and focus (with TLD lenses)
ScenergiX Standard horizontal & vertical electronic edge blending
Dust filters Dense, high quality microfilters, also available as spare kit
Noise Level 58 dBA (at 40°C)
Mains Voltage 200 - 240 V
Power consumption 3700 W (with universal lamp)
Power Dissipation max 13,300BTU/h
Weight 99 kg (220 lbs)

707 x 1025 x 548 mm
(27.8 x 40.3 x 21.5 inch)
incl. carrying handle + rigging points

Shipping Dimensions

Width: 92 cm
Height: 95 cm
Depth: 123 cm
Floor Space: 1,1316 m²
Volume: 1,075020 m³
Gross Weight: 161 kg

Safety Regulations Compliant with UL1950 and EN60950
Electromagnetic Interference complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A
Order Information Projector: R9004510
Spare lamp: R9854535
6-pack dust filters: R9454470
24-pack dust filters: R9454480
RGB HV module: R9854440
FLM/SLM adaptor plate: R9854490
FLM carry handle: R9854530
FLM flight case: R9854510


čip: 3 x 0,95" DLP Chip
jas: 20000  lm
rozlišení: HDTV 1920 x 1080 (2.073.600 pixel)
výměnné objektivy: ano
LAN: ano
počet lamp: 1 - Xenon
rozměry  (š x v x h): 707 x 548 x 1025 mm
hmotnost: 99 kg
projekční poměr: volitelný
