Encore Presentation Switcher
Modular, scalable presentation switcher
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
The Encore Presentation Switcher is the most advanced video processing and presentation control system on the market today. The system provides source selection, automatic source acquisition and confi guration, advanced windowing features, seamless switching, video effects and integrated control for professional video presentations. Encore’s modular, scalable architecture allows the system to support a wide variety of show confi gurations. The system can efficiently support from 1-32 screens with any combination of independent display or seamless wide-screen display elements.
Detail
Full flexibility
The basic Encore configuration supports six independent picture-in-picture (PiP) or key layers, or three transitioning PiP images. It fully supports seamless transition effects, Z-order control, window borders, drop shadows and a variety of keying effects. Each input board on the Encore provides two independent scaler channels with universal inputs that handle both analog and digital video sources.
Ideally suited for large blended widescreen applications
The unit features 1:1 pixel sampling, motion adaptive de-interlacing for both standard and high definition sources, 3:2 and 2:2 pull down detection, low video delay, aspect ratio correction, real-time window manipulation. The Encore is an excellent solution for large blended widescreen applications.
Total event control

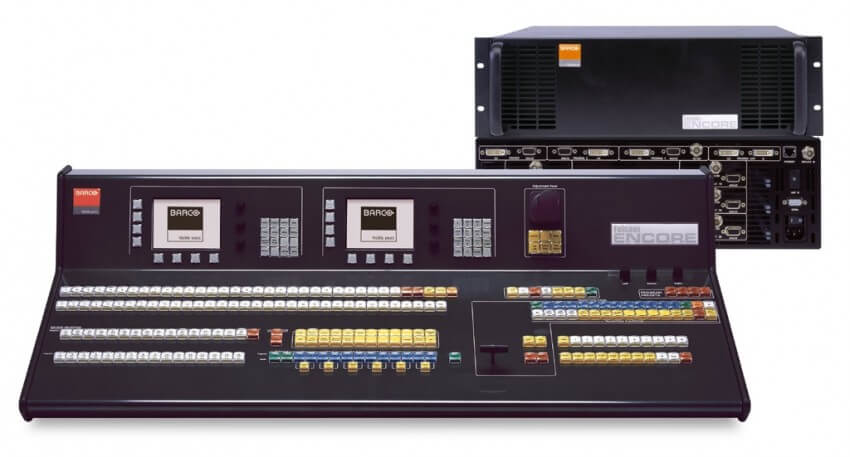

Each Encore system consists of a Controller and one or more Video Processors, and each system is designed to grow in tandem with your creative requirements. With a full array of unsurpassed features, dynamic input flexibility and the superb quality of Barco's scaling technology, Encore is the premiere choice for professional video presentations.
Specifikace
|
Mixer/Effects: Analog inputs |
RGBHV/RGBS/RGsB computer video, YPbPr video (SD or HD), S-video, or Composite video on 15-pin HD connector |
|
Mixer/Effects: SD/HDSDI inputs |
per SMPTE 259M-C (NTSC/PAL resolution) SMPTE 292M (HDTV) on BNC connector |
|
Mixer/Effects: DVI input |
per DDWG 1.0 on DVI-I connector |
|
Mixer/Effects: Input Resolutions |
NTSC/PAL · Computer Resolutions VGA (640 x 480) through UXGA (1600 x 1200) · HDTV Resolutions up to 1920 x 1080 (720p, 1080i, 1080p) · 2048 x 1080p (Digital Cinema format) · Plasma Display Resolutions |
|
Native Resolution Background: Analog inputs |
RGBHV computer video on DVI-I connector |
|
Native Resolution Background: DVI input |
per DDWG 1.0 on DVI-I connector |
|
Native Resolution Background: Input Resolutions |
Computer Resolutions: SVGA (800 x 600) through UXGA (1600 x 1200) · HDTV Resolutions (720p, 1080p) · 2048 x 1080p (Digital Cinema format) · Plasma Display Resolutions |
|
Downstream Key Input: Analog |
RGBHV computer video on DVI-I connector |
|
Downstream Key Input: DVI |
per DDWG 1.0 on DVI-I connector |
|
Downstream Key Input: Resolutions |
· Computer Resolutions: SVGA (800 x 600) through UXGA (1600 x 1200) · HDTV Resolutions (720p, 1080p) · 2048 x 1080p (Digital Cinema format) · Plasma Display Resolutions |
|
Frame Lock Input |
NTSC/PAL black burst reference on BNC Connector |
|
Preview analog outputs |
RGBHV/RGBS/RGsB, YPbPr video (SD or HD), on 15-pin HD connectors |
|
Preview DVI output |
per DDWG 1.0 on DVI-I connector |
|
Program Output 1: Analog |
RGBHV/RGBS/RGsB, YPbPr video (SD or HD), on 15-pin HD connectors |
|
Program Output 1: DVI |
per DDWG 1.0 on DVI-I connector |
|
Program Output 1: 3G/HD/SD SDI |
3G/HD/SD SDI on a BCN connector, supports SMPTE 259 M-C, 292M and 424M standards |
|
Program Output 2: Function |
This output can be programmed to serve as a second buffered program output or a monitoring program output |
|
Program Output 2: Analog |
RGBHV/RGBS/RGsB, YPbPr video (SD or HD), on 15-pin HD connectors |
|
Program Output 2: DVI |
per DDWG 1.0 on DVI-I connector |
|
Output Resolutions |
Computer Resolutions VGA (640 x 480) through UXGA (1600 x 1200) · HDTV Resolutions up to 1920 x 1080 (720p,1080I, 1080p) · 2048 x 1080 (Digital Cinema format) · Plasma Display Resolutions |
|
Mechanical |
3 RU Rackmount Chassis |
|
Power |
120-240 VAC - 50/60 Hz., Autoselecting 1.0A maximum |
