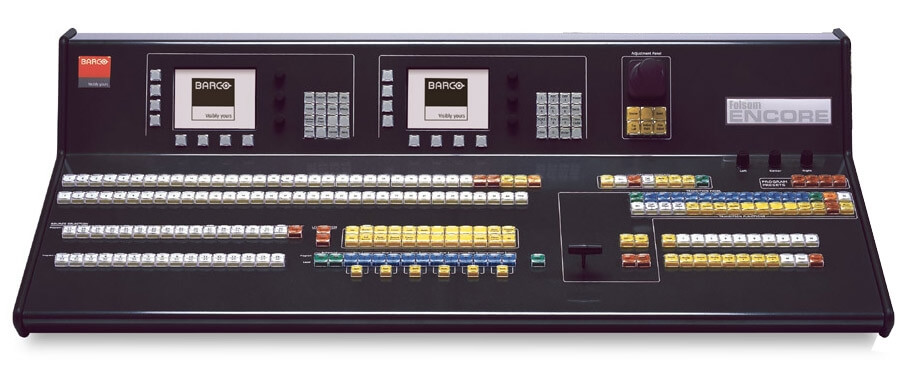

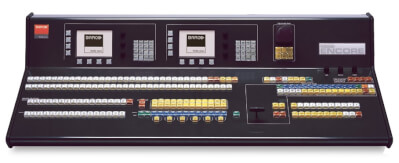

Encore Controller LC

The Encore Controller LC supports up to 64 inputs and 32 destinations, comprised of Encore Video Processors, ScreenPRO-II and ImagePRO processors. Designed for both single screen and wide screen blended destinations, the LC offers 900 presets and special User Keys to ease programming and "on the fly" switching. The Controller LC also supports stacked Encore Video Processor configurations, which enable you to control up to 12 layers on a single screen.

Encore Processors supported: 32
Widescreen support: Yes
External router control: Yes
Inputs supported: 64
Destinations supported: 32
Available presets: 900
Layers supported: 1 DSK, 12 scaled inputs (PIP or Key), 1 transition background
User-selectable transition functions: Yes
Available destinations: 8
Available user-defineable keys: 100
Joystick & T-bar: Yes
Machine control: Yes
320 x 240 graphic displays: 2
Light sticks: 3
PS/2 keyboard support: Yes
Communication: Ethernet, RS 232, USB
Program sequencing: Yes
Field upgradable: Yes
Ethernet control interfaces: Yes
Tally support: 8
