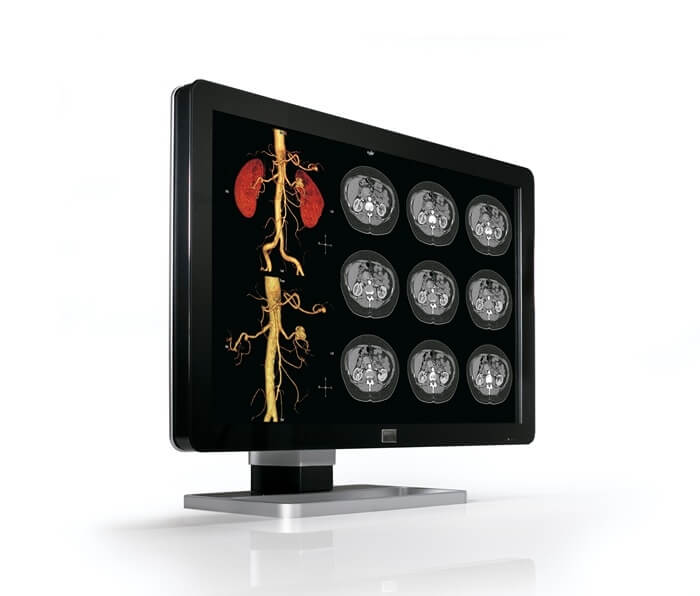

Coronis Fusion 4MP DL (MDCC-4130)
4 MegaPixel wide-screen diagnostic color display system
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Coronis Fusion 4MP DL is a multi-modality PACS display system designed to further enhance flexibility and productivity in diagnostic imaging.
Enhanced viewing comfort
With the Coronis Fusion 4MP DL, there are no more boundaries. Its ingenious design allows you to use the 30-inch workstation as two seamless 2 MegaPixel heads or one wide-screen 4 MegaPixel display. The choice is yours.
Addressing the needs of both grayscale and color imaging, the Coronis Fusion 4MP DL allows you to read CT, MR, and orthopedic images, or any other combination, side by side on a single diagnostic screen.
A perfect view from every angle
Coronis Fusion 4MP DL features the latest, breakthrough In-Plane Switching (IPS-Pro) LCD technology. This technology brings the most advanced LCD viewing characteristics on the market, setting new standards for brightness and contrast, even from a wide viewing angle.
Features
Multi-modality PACS imaging
The Diagnostic Luminance system delivers a maximum luminance of 1000 cd/m², allowing for simultaneous reading of color, grayscale and fused modalities on a single display.
Diagnostic precision
The integrated ULT of Coronis Fusion 4MP DL distributes the brightness equally over the entire 30-inch screen surface. Supported by an intelligent backlight design, this reduces non-uniformities caused by the LCD as well as the backlight to less than 10%. As a result, all images comply perfectly to the DICOM standard, no matter where they are positioned on the screen.
Automated Quality Assurance
The latest version of MediCal QAWeb, combined with the unique I-Guard sensor, ensures fully automated image Quality Assurance with no need for human intervention. MediCal QAWeb tracks, maintains and logs viewing performance, automates QA tasks, initiates display system calibration and establishes an accurate DICOM Look-Up Table calibration.
Increased performance
The Coronis Fusion 4MP DL display system is driven by a high-speed MXRT display controller, specifically designed to support 3D PACS applications with 30-bit color precision.
Enhanced viewing comfort
With the Coronis Fusion 4MP DL, there are no more boundaries. Its ingenious design allows you to use the 30-inch workstation as two seamless 2 MegaPixel heads or one wide-screen 4 MegaPixel display. The choice is yours.
Addressing the needs of both grayscale and color imaging, the Coronis Fusion 4MP DL allows you to read CT, MR, and orthopedic images, or any other combination, side by side on a single diagnostic screen.
A perfect view from every angle
Coronis Fusion 4MP DL features the latest, breakthrough In-Plane Switching (IPS-Pro) LCD technology. This technology brings the most advanced LCD viewing characteristics on the market, setting new standards for brightness and contrast, even from a wide viewing angle.
Features
Multi-modality PACS imaging
The Diagnostic Luminance system delivers a maximum luminance of 1000 cd/m², allowing for simultaneous reading of color, grayscale and fused modalities on a single display.
Diagnostic precision
The integrated ULT of Coronis Fusion 4MP DL distributes the brightness equally over the entire 30-inch screen surface. Supported by an intelligent backlight design, this reduces non-uniformities caused by the LCD as well as the backlight to less than 10%. As a result, all images comply perfectly to the DICOM standard, no matter where they are positioned on the screen.
Automated Quality Assurance
The latest version of MediCal QAWeb, combined with the unique I-Guard sensor, ensures fully automated image Quality Assurance with no need for human intervention. MediCal QAWeb tracks, maintains and logs viewing performance, automates QA tasks, initiates display system calibration and establishes an accurate DICOM Look-Up Table calibration.
Increased performance
The Coronis Fusion 4MP DL display system is driven by a high-speed MXRT display controller, specifically designed to support 3D PACS applications with 30-bit color precision.
Specifikace
| Screen technology | TFT AM Color LCD Dual Domain IPS-Pro |
| Active screen size (diagonal) | 758.36 mm (29.9") |
| Active screen size (H x V) | 641.208 x 404.808 mm (25.25 x 15.94") |
| Aspect ratio (H:V) | 16:10 |
| Resolution | native 4MP (2560 x 1600) |
| configurable to 2 x 2MP+ (1280 x 1600) | |
| configurable to 2 x 2MP (1200 x 1600) | |
| Pixel pitch | 0.2505 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Color support | 30 bit |
| Viewing angle (H, V) | 170° |
| Uniform Luminance Technology (ULT) | Yes |
| Per Pixel Uniformity (PPU) | No |
| Ambient Light Compensation (ALC) | Yes |
| Backlight Output Stabilization (BLOS) | Yes (1x) |
| I-Guard | Yes |
| Maximum luminance | 1000 cd/m² |
| DICOM calibrated luminance (ULT off) | 500 cd/m² |
| Contrast ratio (dark reading room, typical) | 1100:1 |
| Response time (Tr + Tf) | 20 ms |
| Video input signals | DVI-D Dual Link (2x) |
| USB ports | 1 upstream (endpoint), 3 downstream |
| USB standard | 2.0 |
| Power consumption (nominal) | 135W |
| Power save mode | Yes |
| Dimensions with stand (W x H x D) | Portrait: NA |
| Landscape: 731 x 580~676 x 265 mm | |
| Dimensions w/o stand (W x H x D) | Portrait: NA |
| Landscape: 731 x 485 x 141 mm | |
| Optional accessories | NA |
| I-Luminate button | No |
| RapidFrame technology | No |
| Net weight with stand | 28.1 kg |
| Mounting standard | VESA (100 mm) |
| Screen protection | Protective, non-reflective glass cover |
| Recommended modalities | CT, MR, US, DR, CR, NM, Film |
| UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1- M90, | |
| IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, | |
| IEC 60950-1:2001 1ST EDITION, CE - 89/336/EEC, CE - 93/42/EEC, | |
| DEMKO - EN 60601-1, BSMI - CNS13438(95) + CNS14336(94), | |
| VCCI, FCC class B, ICES-001 Level B, MDD class IIb, FDA 510(k), | |
| RoHS, KC, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003 | |
| Supplied accessories | Getting Started Guide |
| Quick-Installation Sheet | |
| Video cables (2 x DVI Dual Link) | |
| Main cables (UK, European (CEBEC/KEMA), | |
| USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC)) | |
| USB 2.0 cable | |
| External power supply | |
| QA software | MediCal QAWeb |
| Warranty | 5 years |
