C11

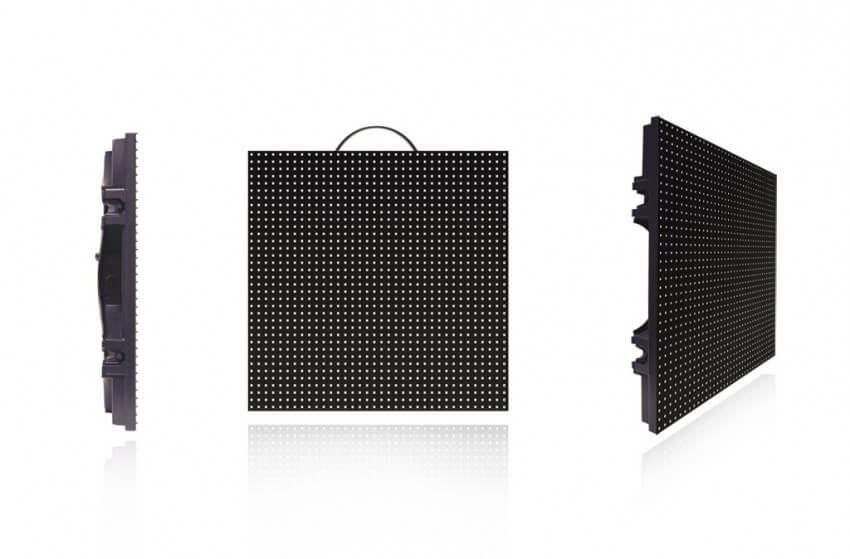

Barco LED dlaždice 11mm pixel pitch, 5,000 nits, surface-mounted LED tile
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
Barco's C11 LED display is an indoor/outdoor solution for both rental and permanent installations. It is the industry's first truly environmentally friendly display, with a fraction of the power consumption and heat generation of other LED displays. Tested to Mil-Spec 810F standards, it can withstand challenging environments and features a fanless IP66 enclosure.
Specifikace
| Pixel pitch | 11.1 mm |
| Brightness | 5,000 nits |
| LED configuration | 3-in-1 SMD |
| Pixel density |
1,296 LEDs per tile (36x36) |
| Hor. viewing angle | 120° (min 50% brightness) |
| Vert. viewing angle |
120° (min 50% brightness) |
| Lifetime |
100,000 hours to 50% of initial brightness |
| Power consumption | 85W/tile (max) |
| Operation power voltage | 200-240V / 50-60Hz |
| Tile dimensions |
Width: 400mm |
| Weight / Tile |
6.4 kg |
| IP rating | IP66/66 |
| Processing | 16 bit/color |
| Colors | 281 trillion |
| Refresh rate | 600-3,000Hz |
| Foot build-up | Max. 10 tiles high |
| Truss build-up | Max. 25 tiles high |
| Link interface | DVI |
| Serviceability | Front and back |
| Operating temperature | -20 - 45°C |
| Storage temperature | -20 - 50°C |
| Operational humidity | 10-99% |
| Storage humidity | 10-99% |
| Source compatibility | DVI, SD-SDI, HD-SDI |
| Operatable digitizer | Vizomo |
| Certifications | ETL, CE, FCC, RoHS |
Order number
535-0108
