B-16BK

První mobilní zařízení osazeno Black led diodami RGB s vlastní centrálou na výrobu el. energie

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

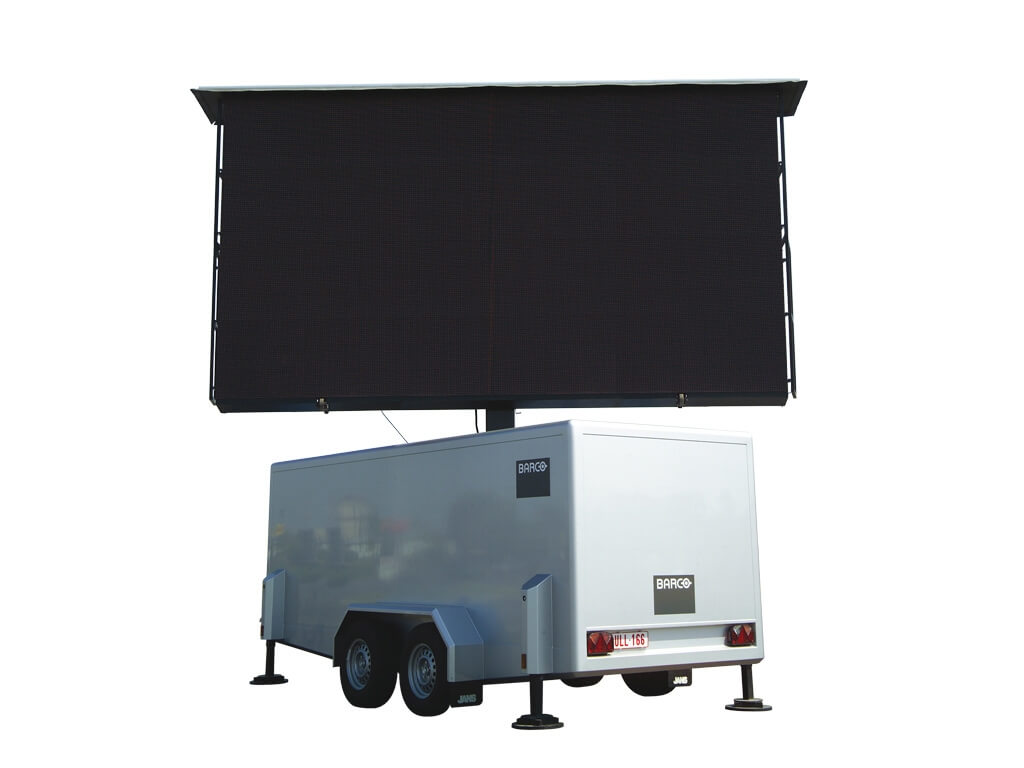

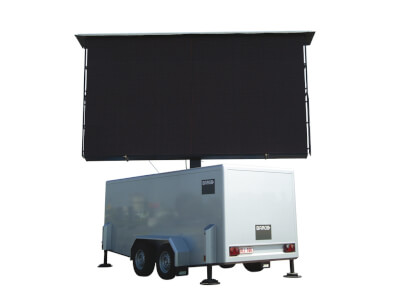

The B-16 is a dedicated, cost-effective total display solution for mobile branding, advertising and digital signage. It comes in a fully equipped trailer, which makes it possible to show your message at any time and place, with a minimal set-up time. Barco's B-16 features a 16:9 aspect ratio, ideal for high-resolution video content, and in terms of contrast and brightness, offers the best in outdoor LED technology.

Specifikace

Pixel pitch 16.0 mm
Brightness 6,000 nits
LED configuration 3x black lamp
Hor. viewing angle 110° (min 50% brightness)
Vert. viewing angle

+15, -35° (min 50% brightness)

Contrast ratio 7,000:1 (at 500 lux)
Lifetime

100,000 hours to 50% of initial brightness

Power consumption 11 KVA, diesel fueled, 20 hours of continuous operation at half load
Operation power voltage 200-240V / 50-60Hz
Tile dimensions

Width: 5044mm
Height: 2379mm
Depth: 2111mm

Weight / Tile

3,420 kg

IP rating IP65/54
Processing 16 bit/color
Colors 281 trillion
Refresh rate 800Hz
Link interface DVI interface (DVI connector)
Max link length 4.5m (with Barco DVI cable)
Interfaces 2x DVI
Max power cascade connection 6 tiles
Serviceability Back (with clickable shader)
Operating temperature -35 - 50°C
Storage temperature -35 - 50°C
Operational humidity 10-99%
Storage humidity 10-99%
Source compatibility CVBS, YC, YUV, RGB, DVI, SDI, HDSDI (DX-700: and Dual link DVI, Dual link HDSDI)
Operatable digitizer Rack-mounted LED-PRO
Certifications ETL, CE, FCC, RoHS, CCC, TUV
