AV700-X4

Video Frame Grabber IP65 Computer For Joint Battle Command Platform (JBC-P) , MIL-STD Rugged Computer with Intel® Core™i7-9850HL/Xeon E-2276ML Processor, IP65 protection, MIL-STD 461 DC-DC18V-36V , Extended Temp. -40°C to 70°C

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073
Poptat řešení
Základní informace Specifikace Fotogalerie Ke stažení

Základní informace

  • Intel® Core™ i7-9850HL (up to 4.1GHz,TDP 25W) / Intel® Xeon® E-2276ML (up to 4.2GHz, TDP 25W)
  • Video Frame Grabber IP65 Mission Computer
  • Design for reliability under demanding MIL-STD-810 Thermal, Shock, Vibration, Humidity
  • Up To 128GB DDR4 Memory
  • 1 x VGA (Optional for HDMI), 2 x Gigabit Ethernet, 2 x USB, 2 x COM
  • Option: 10GbE SFP+
  • Rugged MIL-DTL-38999 connectors
  • 9V~36V DC-DC
  • Optional Military-Grade DC-DC 18V-36V
  • Extended Temperature -40°C to 70°C
  • Available For 8 x D1 Fame Grabber Card

AV700-X4 is driven by Intel 9th generation Coffe-lake-H Xeon E-2276ML / i7-9850HL Processor soldering onboard which is an extremely compact Core I-based fanless rugged system. Coffee-lake-H processor supports outstanding CPU and graphics performance, providing 6 cores 4.1GHz clock speed while consuming low power consumption 25W. AV700-X4 highlight on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP65 protection allow system withstand in any kind of harsh environment. AV700-X4 supports extended temperature from -40°C to 70°C and wide range 9V~36V DC input (optional MIL-STD-461 Power supply) can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.

Specifikace

CPU

Intel® Core™ i7-9850HL (4.1GHz, 6 cores, 12 threads, TDP 25W)
Intel® Xeon® E-2276ML (4.2 GHz, 6 cores, 12 threads, TDP 25W)
MEMORY TYPE 4 x SODIMMs up to 128GB DDR4
EXPANSION SLOT 1 x M.2 , NVMe Up to 2TB
STORAGE DEVICE 1 x 2.5" SATAIII up to 4TB
ETHERNET CHIPSET 1 x Intel® I210-IT
1 x Intel® I219-LM
POWER BUTTON Water Resistive Power Button with LED Backlight
DC-IN 1 (Amphenol TV07RW-11-54P)
GROUND SCREW 1 x M4 Screw
X1 1 x LAN (Amphenol TV07RW-13-98S)
X2 1 x LAN (Amphenol TV07RW-13-98S)
X3 2 x USB (Amphenol TV07RW-13-98S)
X4 2 x COM (Amphenol TV07RW-13-35S)
X5 1 x VGA (Amphenol TV07RW-13-98S)
Option 10GbE Fiber via L-Com RLRJ121LC01A connector
GRAPHICS PROCESSOR Intel® HD Graphics 630
RESOLUTION Up to 1920x1080@60Hz 32bpp
WINDOWS Windows 10 64bit
LINUX Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2
POWER REQUIREMENT Standard: 9V to 36V DC-in
Optional: MIL-STD-1275, MIL-STD 461
18 to 36V (300W max)
DIMENSION 230 x 83 x 280mm (9.06" x 3.27" x 11.02")
INGRESS PROTECTION IP65
WEIGHT 6.0 kg
OPERATING TEMP. -40 to 70°C (ambient with air flow)
STORAGE TEMP. -40 to 85°C
RELATIVE HUMIDITY 5% to 95%, non-condensing
MIL-STD-810G TEST Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC COMPLIANCE MIL-STD-461E :
CE102 basic curve, 10kHz - 30 MHz
RE102-4, (1.5 MHz) -30 MHz - 5 GHz
RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies
EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV
EN 61000-4-4: Signal and DC-Net: 1 kV
EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV
EN 61000-4-4: Signal and DC-Net: 1 kV
EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV
EN 61000-4-4: Signal and DC-Net: 1 kV
EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN 55022, class A
EN 61000-4-3: 10V/m
CE and FCC
GREEN PRODUCT RoHS, WEEE compliance

Fotogalerie

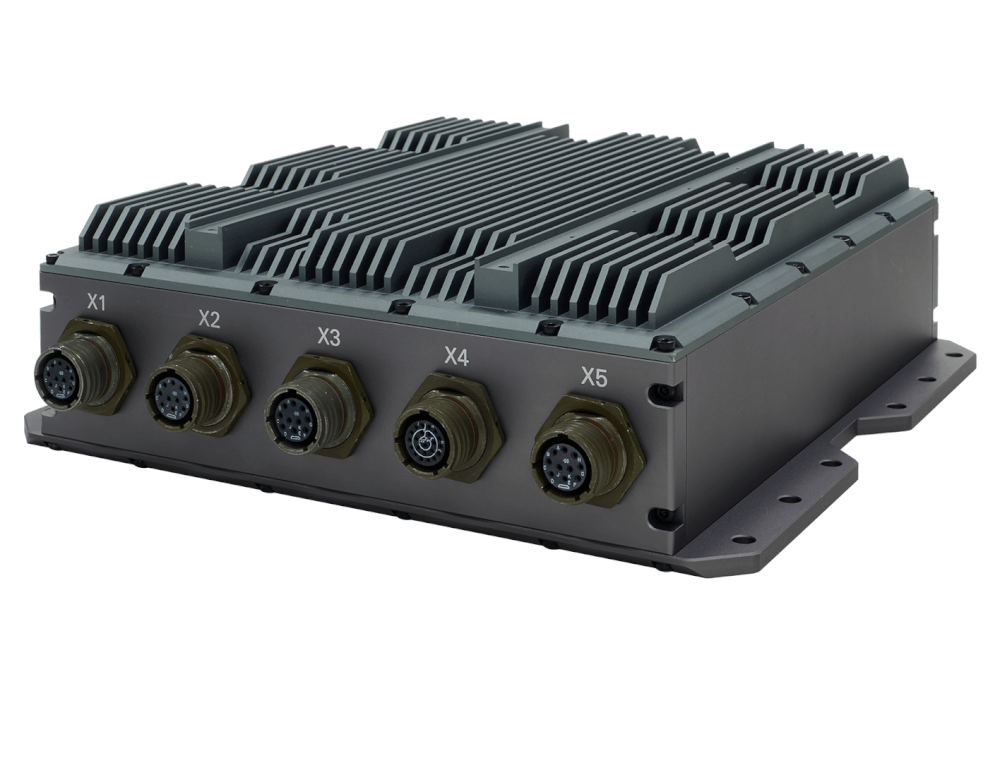

7StarLake AV700-X4

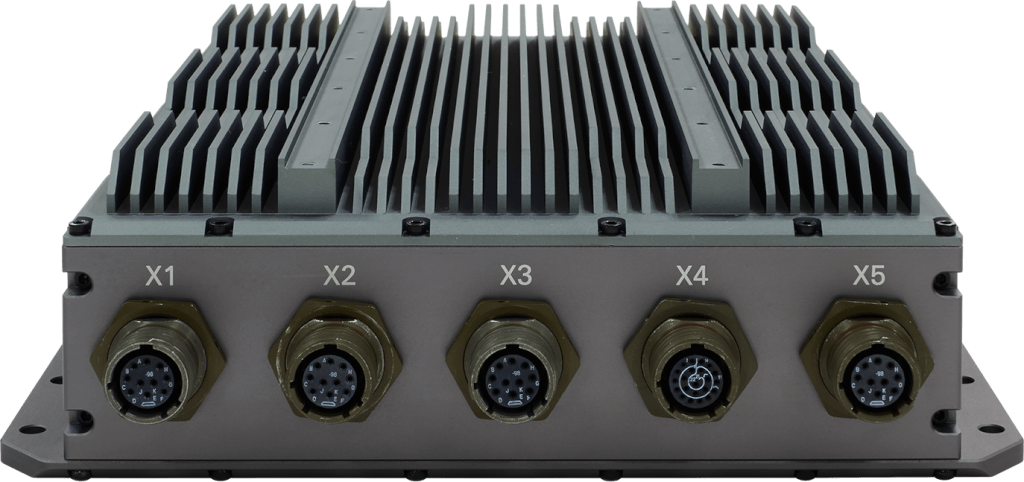

7StarLake AV700-X4

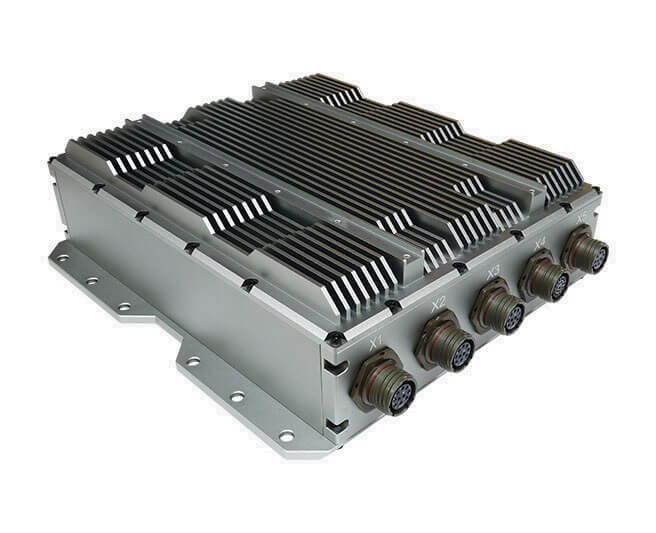

7StarLake AV700-X4

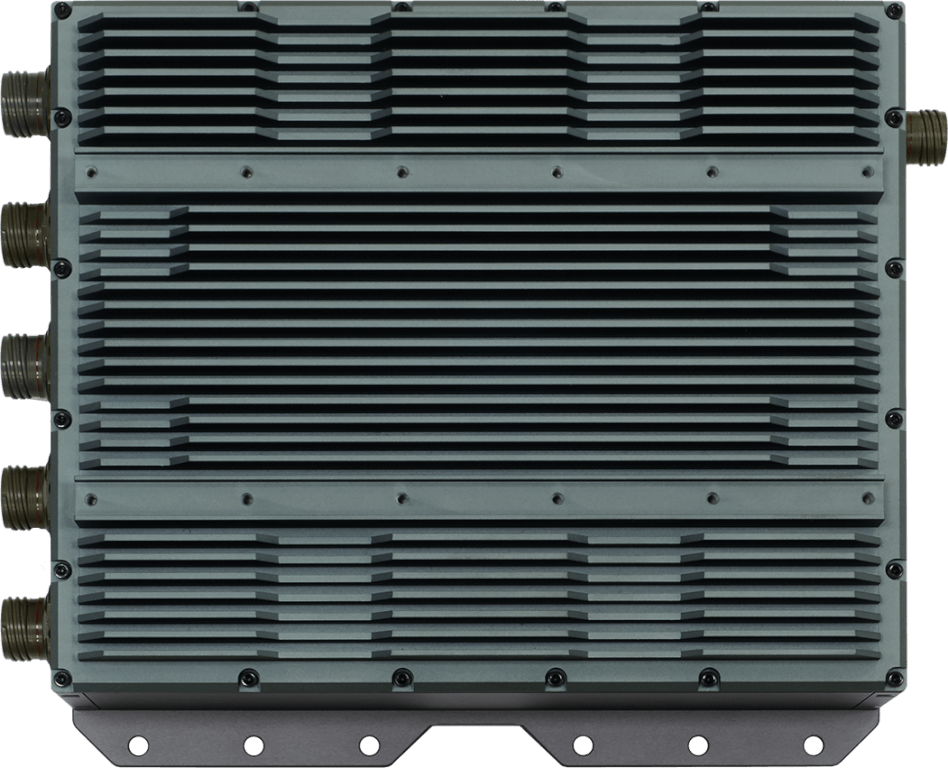

7StarLake AV700-X4

Ke stažení

7StarLake AV700-X4 datasheet.pdf
