3rd Gen. Intel Xeon Scalable (ICE LAKE) Liquid Cooled GPU Server

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Thermal Dissipation Coefficient : 15KW
  • Liquid Cooled Platform : Gun Drilled -10 x 800 x 10mm Pass (⌀ x L x H)
  • CPU: 3rd Gen. Intel Xeon Scalable (ICE LAKE) ® Platinum 8380                (40 x cores, 2.3 GHz, 270W)
  • GPU: 4 x NVIDIA QUADRO RTX A6000 (48GB GDDR6, 10,752 CUDA Cores)
  • 2TB RDIMM DDR4-3200MHz
  • 96TB NVMe SSD ( Gen 4.0 PCIex4)
  • Dimension: 450 x 800 x 88 mm (WxDxH)

Introduction & Key Features

The global transformation is rapidly scaling the demands for flexible computer, networking, and storage. Future workloads will necessitate infrastructures that can seamlessly scale to support immediate responsiveness and widely diverse performance requirements. The exponential growth of data generation and consumption, the rapid expansion of cloud-scale computing and 5G networks, and the convergence of high-performance computing (HPC) and artificial intelligence (AI) into new usages requires that today’s data centers and networks evolve now— or be left behind in a highly competitive environment.

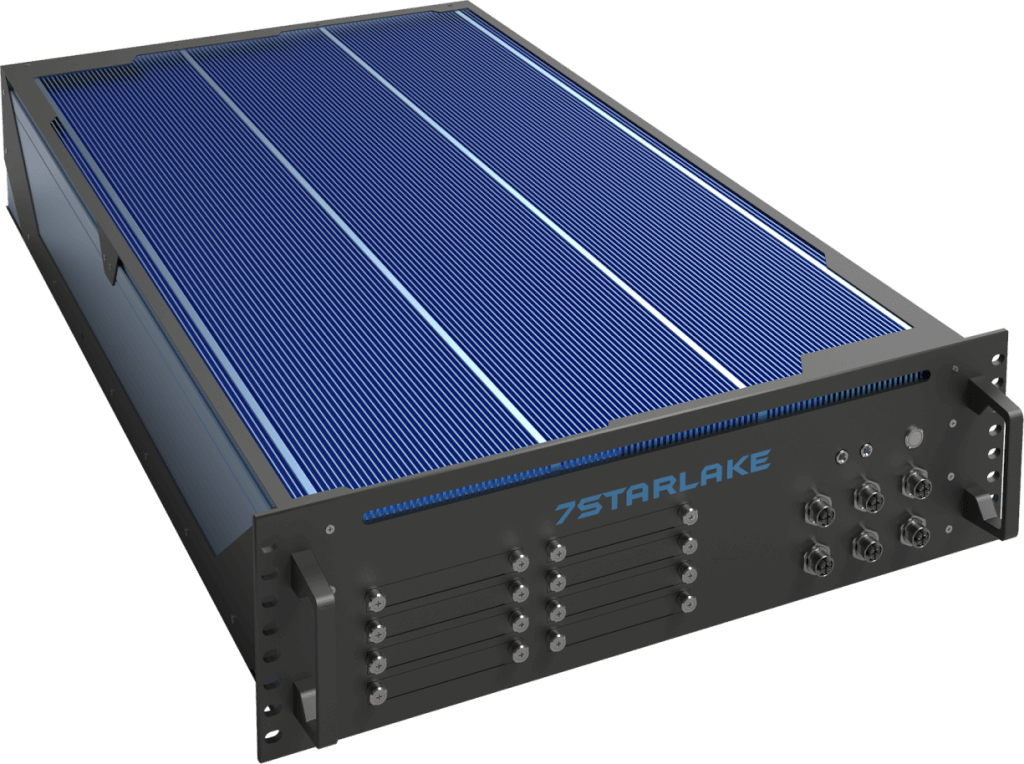

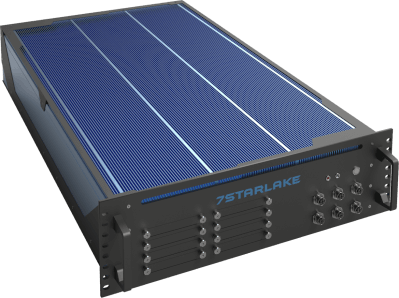

7Starlake's AV2000 Conduction Liquid Cooled AI inference GPU Server features 3rd Gen. Intel Xeon Scalable (ICE LAKE) ® Platinum 8380  processor ( 40 Cores, 2.3 GHz, 270W) with 4 x NVIDIA RTX A6000  (48GB GDDR6 , 10,752 CUDA), 2TB RDIMM DDR4-3200MHz and 96TB (Gen 4.0 PCIex4) NVMe, to provide the seamless performance foundation for the data centric era from the multi-cloud to intelligent edge, and back.

AV2000 enables a new level of consistent, pervasive, and breakthrough performance in new AI inference to implement machine learning and deep learning. Combining stunning inference performance, powerful CPU and expansion capability, it is the perfect ruggedized platform for versatile edge AI applications.

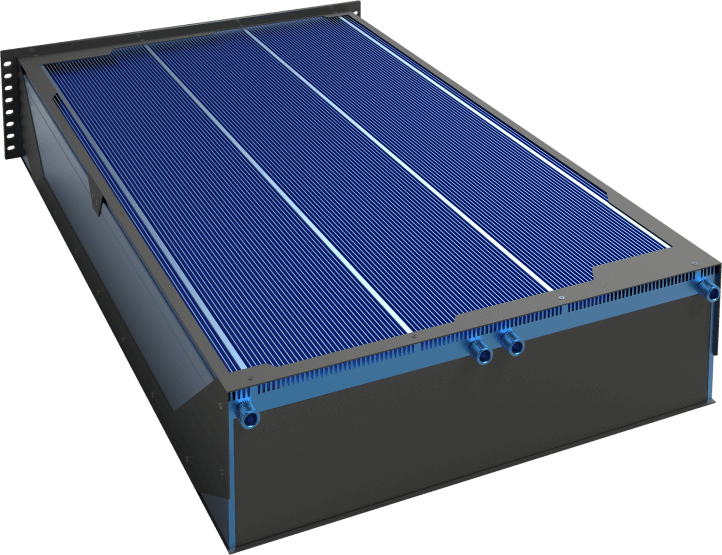

With innovative liquid cooled design, AV2000 is built in most advanced " Gun Drilled ", which with 10 pipes (each pipe 5mm x 5mm x \pi  x 800mm) to dissipate max 15KW heat.


CPU 2 x 3rd Gen. Intel® Xeon® Scalable Platinum 8380 CPU(2.3 GHz, 40Cores, TDP 270W)


GPU 4 x NVIDIA QUADRO RTX A6000 (48GB GDDR6, 10,752 CUDA Cores)

Up to 96TB NVMe SSD (PCIe Gen 4.0 x4)

Ethernet 2 x 10G Base-T
VGA 1 x (M12)
Ethernet 2 x 10GbE (M12)
USB 5 x USB 3.0
Button 1 x Power Button w/Indicator LED
Power 2.4KW (800W*3)
Dimension 450 x 800 x 88mm (W x D x H)
