Intel®6th Gen. Core™i7-6820EQ NVDIA GTX950M GPU MIL-STD Fanless Rugged System

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

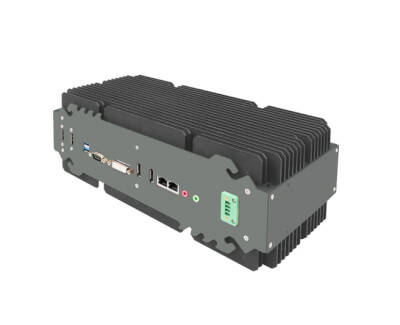

AV200, EBX rugged system is a powerful system that is driven by Intel® 6th generation Skylake CPU and chipset soldering onboard, integrated with Nvidia GPU GTX950M that supports 2 independent DisplayPort. Processor i7-6820EQ plus Intel® QM170 chipset supports clock speed 2.8GHz, up to 3.5GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. Apart from computing power, the system is able to survive in harsh environment from -40 to 60°C, and ruggedness for vibration and shock is proven to pass MIL-810G standard. With the combination of high CPU computing power and rich display inputs, AV200 is a perfect portable solution for rugged consoles & workstations, transportation, defense control room to share instant and accurate information on huge screen for in-time solutions.

  • MIL-STD 810G Compliance
  • 6th Generation Intel® Core i7-6820EQ Skylake Processor
  • Up to 32GB DDR4 SDRAM
  • Onboard uSSD SATAIII 64GB
  • NVIDIA GTX950M Independent Displays by 2 x DP
  • 2 x mPCIe expansion slot (One supports mSATA)
  • 2 x Intel® Gigabit Ethernet
  • 4 x USB 3.0, 1 x COM port
  • 9V to 36V DC-in
  • Extended Temperature -40 to 60 °C


CPU Intel® Core™ Skylake-H
Intel® Core™7-6820EQ 3.5 GHz (8M Cache, 45W)
Memory Type Up to 32GB DDR4 SDRAM
Expansion Slot 1 x Full-size mPCIe (w/ SIM card and mSATA supported)
1 x Half-size mPCIe
Storage Device Onboard uSSD SATAIII 64GB
1 x 2.5 Easy swap HDD/SSD Tray
USB 2 x USB3.0
2.5" SSD/HDD Tray 1
Power button 1 x System On/Off
Indicator LED Power, HDD, LAN (Link/Active/Speed)
USB 2 x USB 3.0
Display 4 x DisplayPort
1 x DVI-I
Audio 2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)
Serial Port 1 x DB9 connector (RS-232/422/485)
Ethernet 4 x RJ45
Power Input 1 x 4P Rugged Terminal connector
Windows Windows 10
Linux Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04
Power Requirement 9V to 36V DC-in
Dimension (WxDxH) 315.2 x 150 x 120 mm
Weight 6 Kg (13.23 lbs)
Operating Temp. -40 to 60°C (ambient with air flow)
Storage Temp. -40 to 70°C
Relative Humidity 10% to 90%, non-condensing
EMC CE, FCC compliant
EMC CE and FCC compliance
Green Product RoHS, WEEE compliance
