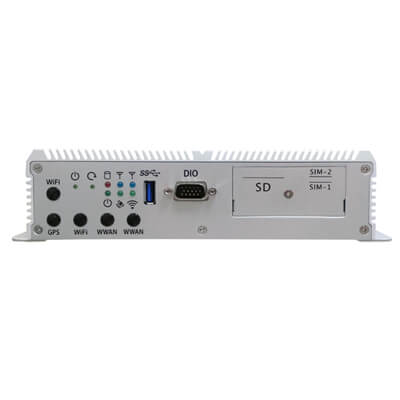

ARTS-1450
Fanless Vehicle PC with Intel® Atom™ Processor E3845
Základní informace
-
Fanless and rugged design
-
Intel® Atom™ Processor E3845 quad-core 1.91GHz
-
Dual SIM cards + dual WWAN modules supported
-
Wide operating temperature : -40°C~70°C
-
Outside accessible SD and SIM slots supported
-
3 x mini-PCIe sockets
-
Optional uBlox GPS Module, support GPS, Glonass, Galileo, BeiDou and QZSS singals
-
Compliant with MIL-STD-810G
-
Optional CAN BUS2.0B and 4-channel CCTV
-
4 x COM, 1 x USB3.0, 2 x USB2.0, 4-in/4-out GPIO
Specifikace
| System | |
| CPU | Soldered onboard Intel®Atom™ processor E3845 quad-core |
| Memory | 1 x 204-pin SO-DIMM socket, supporting DDR3L 1066/1333 MHz, up to 8GB SDRAM |
| Chipset | Intel Atom™ processor E3845 |
| Graphics | Integrated Intel® HD Gen. 7 Graphics |
| SATA | 1 x Serial ATA port with 300MB/s HDD transfer rate |
| 1 x mSATA | |
| Connectivity | 802.11 a/b/g/n Wireless LAN Mini-card (optional) |
| LAN Chipset | 1 x Intel® i210IT GbE PHY controller |
| Watchdog Timer | 1~255 levels reset |
| I/O Interface | |
| Serial Port | 2 x RS-232/485 ports w/ DB-9 connectors, rear side |
| 2 x RS-232 ports w/ DB-9 connectors, rear side | |
| Optional : 1 x CAN BUS2.0B w/ DB-9 connector | |
| Optional : 1 x 4-ch CCTV w/ DB-9 connector | |
| USB Port | 1 x type A USB 3.0 port, front side |
| 2 x type A USB 2.0 ports, rear side | |
| LAN | 1 x RJ-45 port for GbE, rear side |
| Video Port | 1 x DVI-D female connector, rear side |
| 1 x VGA with DB15 female connector, rear side | |
| Digital I/O | 1 x 8-bit digital I/O, 4-in/4-out w/ DB-15 Male connector, 2KV isolated protection, front side |
| Antenna | 5 x SMA-female connectors’ holes for external antennas, front side |
| Audio | 2 x 3.5mm phone jacks for Line-out & MIC-in (2W pre-amplified), rear side |
| Expansion Bus | 1 x Mini-PCIe slot for optional WiFi/Bluetooth module |
| 2 x Mini-PCIe slot interconnected with SIM card sockets for optional HSUPA/LTE module | |
| 2 x SIM sockets (outside accessible) | |
| Storage | |
| Type | 1 x 2.5" drive bay for SSD |
| 1 x mSATA | |
| 1 x outside accessible SD socket with cover | |
| Environmental | |
| Operating Temp. | -40°C ~ 70°C (-40°F ~158°F ), ambient w/ air flow, w/SSD |
| Storage Temp. | -40°C ~85 °C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% @ 70°C (non-condensing) |
| Vibration (SSD) | Operating: MIL-STD-810G, Method 514.6, Category 4 and EN61373 Category 1 Class B |
| Non-operating: MIL-STD-810G, Method 514.6, Category 24 minimum integrity test | |
| Shock (SSD) | Operating: MIL-STD-810G, Method 516.6, Procedure functional shock=20g |
| Non-operating : MIL-STD-810G, Method 516.6, Procedure V, crash hazard shick test=75g | |
| Qualification | |
| Certification | CE, FCC Class A, E13 Mark |
| Power Requirement | |
| Power Input | DC 9~36V input, w/ 3-pin terminal bolck |
| Power Consumption | Max. 30W |
| Power Management | Power ignition, power on/off delay controlled by software |
| Mechanical | |
| Construction | Aluminum alloy |
| Mounting | Wall-mount |
| Weight | 1.5 kg |
| Dimensions (W x H x D) | 200 x 55 x 180 mm (7.87” x 2.17” x 7.09”) |
