LYNC-817
17" pasivně chlazené průmyslové Panel PC s proceosrem Intel® Celeron® J1900
Základní informace
- Less Cable , Fanless Design
- User Selectable Modularized Design
- 17” 1280 x 1024 SXGA LCD Display w/ LED Backlight
- Front Panel IP65 Compliant
- Serial Ports (RS-485), w/ Auto-flow Control
- Mini-card Sockets x 1, PCI x 1 or PCIe x 1
- Semi-Piercing DB9 Hole Reserved for Field-bus Card
- SMA Antenna Holes for optional WiFi Function
- 9~36V Wide Range DC Input
Specifikace
| System | |
| CPU | Intel® Celeron® Processor J1900 2.0GHz |
| Memory | 2 x DDR3 SO-DIMM Socket, supporting 1066/1333 MHz SDRAM up to 8GB 1 x 4GB DDR3 SO-DIMM memory module installed |
| LAN | 2 x Intel® I210AT GbE controllers |
| Watchdog Timer | 1~255 levels reset |
| Storage | |
| 1st Device | 1 x outside-accessible CFast slot |
| 2nd Device | 1 x outside accessible 2.5” Drive Bay (Deault), or CFast slots ( optional) |
| LCD Display | |
| Size/Type | 17" TFT LCD Panel |
| Max. Resolution | 1280 x 1024, SXGA |
| Max. Colors | 16.2M |
| Luminance | 350 cd/m² |
| Touch Screen | 5-wire Analog Resistive |
| Button & Indicator | |
| Function Key | Power on/off |
| LED Indicator | Power on LED |
| Power System | |
| Power Input | DC 9~36V |
| Certification | |
| EMC / EMI | CE, FCC Class A |
| Expansion | |
| Expansion Bus | 1 x Mini-card socket ( full-size) 1 x PCI 32-bit slot (default) or 1 x PCIe x1 slot (included in Standard Accessories) |
| Optional | 1 x semi-piercing DB9 hole reserved |
| External I/O | |
| Serial Port | 2 x RS-232 and 2 x RS232/485 ports with auto-flow design, all are DB9 connectors |
| USB Port | 1 x USB 3.0 Type-A USB port 3 x USB 2.0 Type-A ports |
| LAN | 2 x RJ-45 GbE ports |
| DVI | 1 x DVI-I connector |
| WiFi | 2 x SMA antenna holes for optional WiFi function |
| Audio | Line-out |
| Mechanical | |
| Mounting Type | Panel Mounting and VESA-75/100 Mounting |
| Chassis | Panel-mounting chassis, aluminum front bezel and SECC steel chassis |
| Dimension (W x H x D) | 428.00 x 380.00 x 77.00 mm (16.8” x 14.9” x 3.0”) |
| Weight (Net) | 6.5 kg (14.3 lb) |
| Environmental | |
| Operating Temp. | -0ºC ~ 55ºC (-32 ~ 131°F) |
| Storage Temp. | -10ºC ~ 75°C (-50 ~ 167°F) |
| Operating Humidity | 10 ~ 95% RH @ 60°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 2Grms Random (with CF/SSD) |
| Shock | Operating 10G, 11ms Non-operating 30G, 11ms (with CF/SSD) |

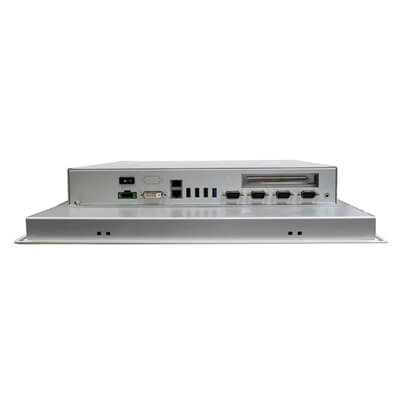

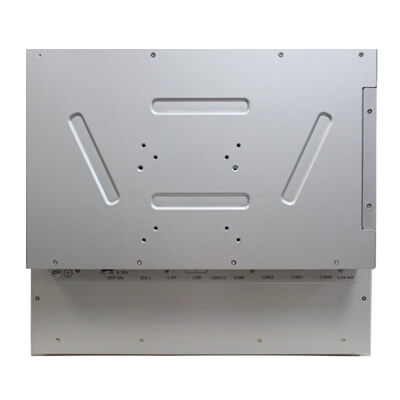

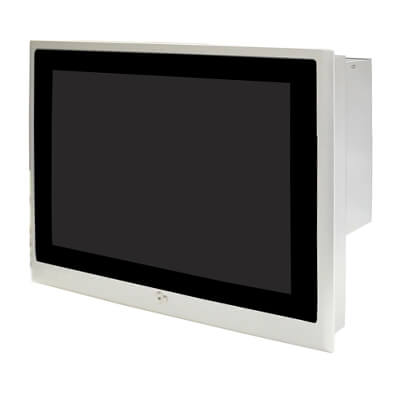

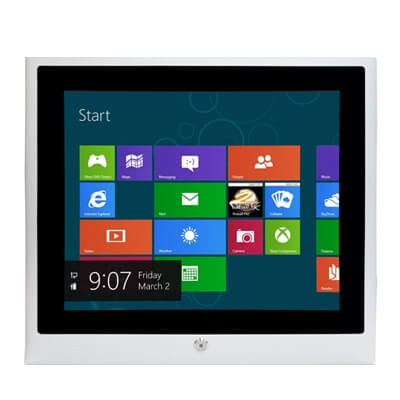

Fotogalerie
