ACP-4362

Průmyslový server s dlouhou životností pro náročné prostředí.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

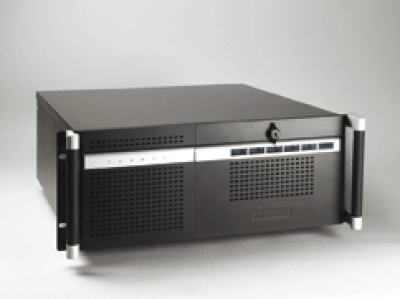

ACP-4362 Server is an industrial server ai­med for longevity in support and maintenan­ce strategy for demanding environments.

Features:

  • ABB Industrial IT Certification
  • Core2Duo based design with high bandwidth for high-performance graphics. 4 monitor support(optional).
  • Supports up to 6 front-accessible removable SATAII (7/24) HDD´s. Hot swapble if SATA RAID card is added.
  • Supports one front-accessible slim DVD and one 3,25” FDD
  • Front-accessible USB x 2 interfaces
  • Easy-to-maintain air filters

Specifikace

Technical Data
FUNCTIONAL SPECIFICATIONS:
Processor: Core 2 Duo
Storage:
One slim-type optical disk drive and one 3,5” FDD, front accessible. Supports up to six 3,5” SATA HDD:s. Each mobile SATA HDD tray has a latch for protection and a pair of LED:s for displaying the HDD power and HDD activity status. For the SATA storage, each mobile tray has a single-color LED (blue/red) that displays SATA HDD status.
I/O Interfaces:
Front I/O interfaces: 2x USB ports. Rear I/O interfaces: 4x USB, 2x PS/2 ports, 1x VGA, 1x serial, 1x parallel port, 1x Audio I/O
Security protection:
The mobile SATA storage system, power switch , system reset button,
alarm reset button and USB ports are all behind the lockable front door.
Cooling system:
One 12 cm x 12 cm (114 CFM) hot-wappable cooling fan; two 8 cm x 8 cm (47 CFM) fans behind the SATA HDD backplane.
Air filters:
2 easily maintained reusable filters near the front of the system fan behind the front door.

PHYSICAL CHARACTERISTICS
Dimensions: 480 x 200 x 320mm (WxHxD)
Weight: 14kg
Color: Black

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill:  EMC
Temperature Operating: 0°C to +40°C
Vibration Operating: 5-17 Hz 1,27 mm p-p
17-500Hz 1G
Shock Operating: 10g, 11ms, ½ sine wave
Humidity: 10% to 85% non condensing
Altitude Operating: 3000m
