96600

Odolný vysokokapacitní router s výškou 8U pro zabudování do 19'' racku

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

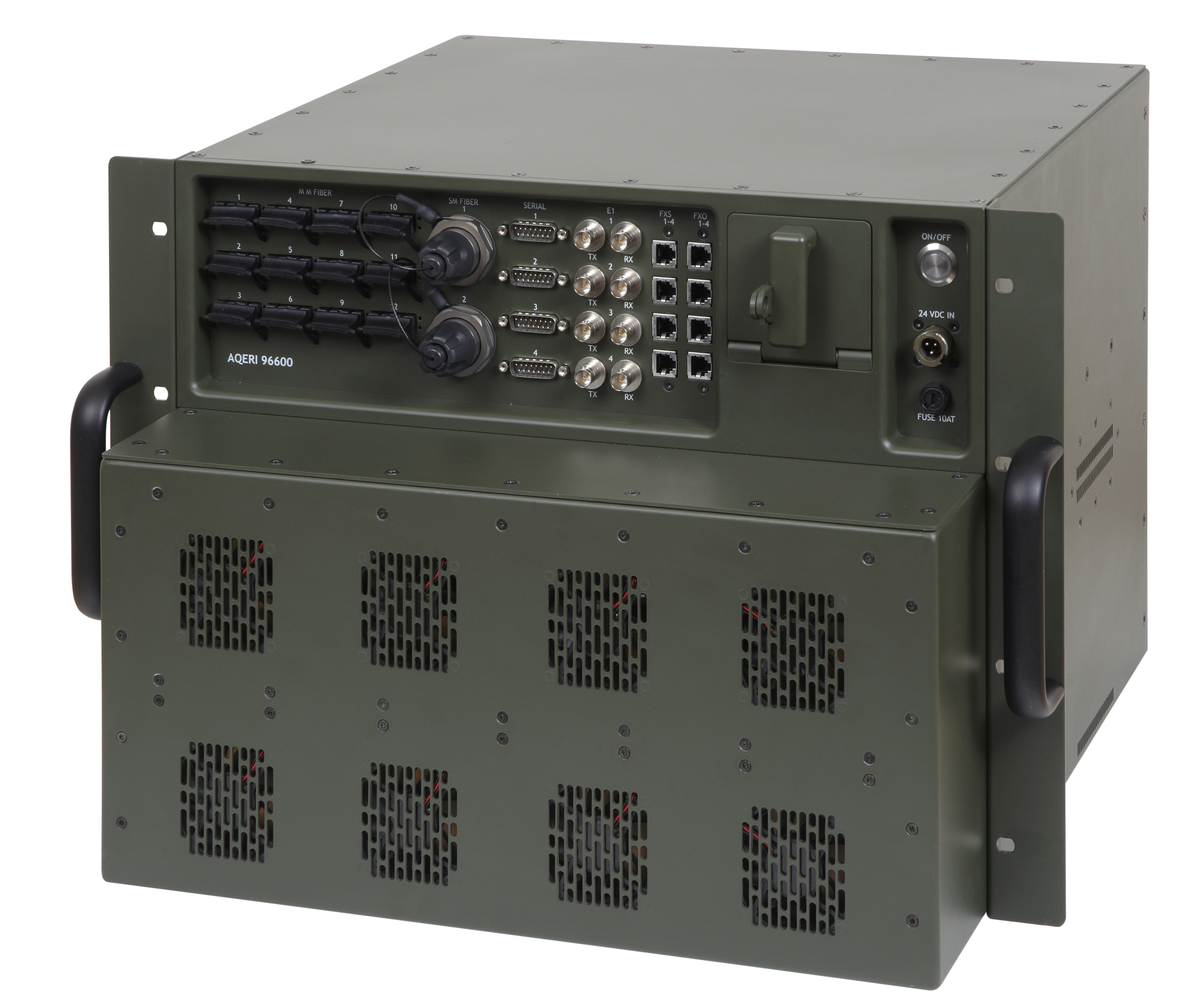

The Aqeri 96600 is a rugged 19" 8U Rou­ter with four individual computers for use in harsh environments. The chassis is fully sealed for protection against dust and cor­rosive elements. The full aluminum con­struction stands for low radiation and high noise immunity. The rugged design gives protection against shocks and vibration.

Specifikace

TECHNICAL SPECIFICATIONS
Router Board: Cisco 3825-DC
Processor: 4x 1GHz Celeron
Memory: 4x 1GB DDR2
Operating system: Optional, Windows, Linux
Storage: 4x 2,5" HDD/SSD drive or CF

I/O Interfaces
KVM Keyboard: x1
KVM Mouse: x1
KVM VGA: x1
Console: x1
USB: x4
100 Mbit Multimode: x12
100 Mbit Singlemode: x4
FXO: x4
FXS: x4
2 Mbit E1: x8
Serial High-Speed WAN: x4

CONNECTORS
KVM Keyboard: USB-A
KVM Mouse: USB-A
KVM VGA: HD-DSUB
Console: Binder 712
USB: USB-A
100 Mbit Multimode: DC
100 Mbit Singlemode: Foks4
FXO: RJ11
FXS: RJ11
2 Mbit E1: BNC
Serial High-Speed WAN: DSUB
DC In: MS3106F 10SL-3S

PHYSICAL CHARACTERISTICS
Dimensions: 444 x 354.8 x 500mm (WxHxD)
Weight: 25kg
Color: Green, other optional

ELECTRICAL SPECIFICATIONS
Power requirements: 28VDC (18-36VDC, safe start Min 21VDC, Max 33VDC)
Power consumption: 150W at 28 VDC (excluding heaters)

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill (other standards on request): MIL-STD-461E
MIL-STD-810G
European CE
TEMPEST SDIP-27 Level A, B, C Option
Temperature Operating: -20°C to +55°C
Vibration Operating (depending on configuration): 10-500Hz 1,04g rms
Shock Operating (depending on configuration): 15g, 11ms, ½ sine wave
Humidity: 5% to 95% non condensing
Altitude Operating: 3000m
