962483

Odolný switch s výškou 3U pro zabudování do 19'' racku

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

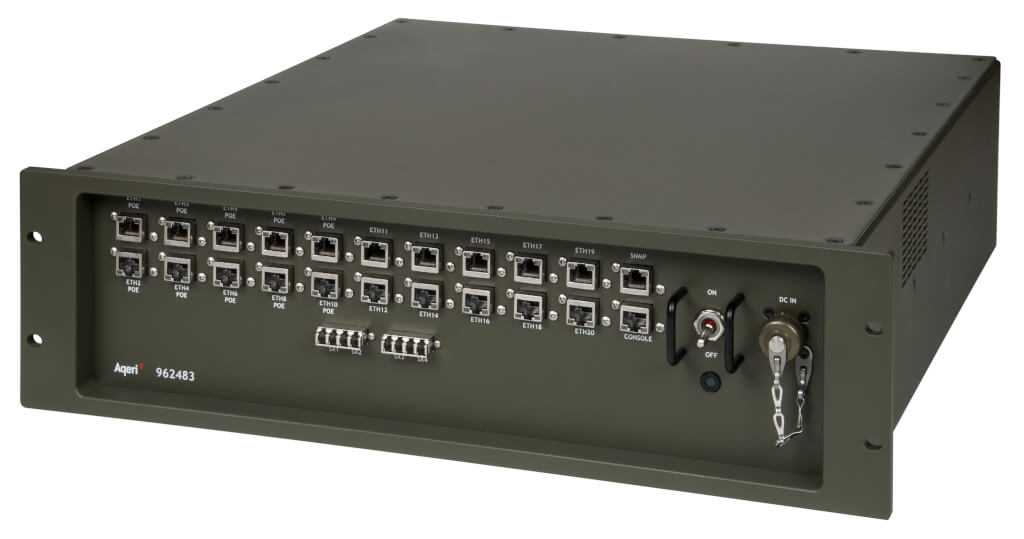

Aqeri 962483 is a semi rugged 19" 3U Cisco-based Fiber and Copper Gigabit Switch with POE for Military and Industrial applications. Interface connectors, copper and fiber are IP54 sealed. The switch has been specially designed to withstand harsh environments where operators place high demand on function and reliability. It works reliaby inspite of dust, dirt, vibrations, strong electromagnetic fields and standard temperature variations. Further, the fully aluminum construction stands for low radiation and high noise immunity.

Specifikace

TECHNICAL SPECIFICATION
Switchboard: Cisco WS-C3560X-24P-S Layer 3
I/O Interfaces:
Gigabit: x20
PoE (7.5W / port): x10 of above interface
1000Mbit SX Multimode: x4
SNMP: x1
Console: x1

CONNECTORS
Gigabit: RJ45
PoE: RJ45
1000Mbit SX Multimode: LC
SNMP: RJ45
Console: RJ45
DC In: MS3102E 10SL-3P

PHYSICAL CHARACTERISTICS
Dimensions: 440 x 132.45 x 500mm (WxHxD)
Weight: 12kg
Color: Green, other optional

ELECTRICAL SPECIFICATIONS
Power requirements: 48VDC
Power consumption: Max 110W at 48VDC (excluding heaters)

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill (other standards on request): European CE, EN 60950-1
MIL-STD-461E
MIL-STD-1275B
MIL-STD-810G
TEMPEST SDIP-27 Level A, B, C: Option
Temperature Operating: 0°C to +40°C
Vibration Operating: 10-500Hz, 1,04g rms
Shock Operating: 15g, 11ms, ½ sine wave
Humidity: 5% to 95% non condensing
Altitude Operating: 3000m

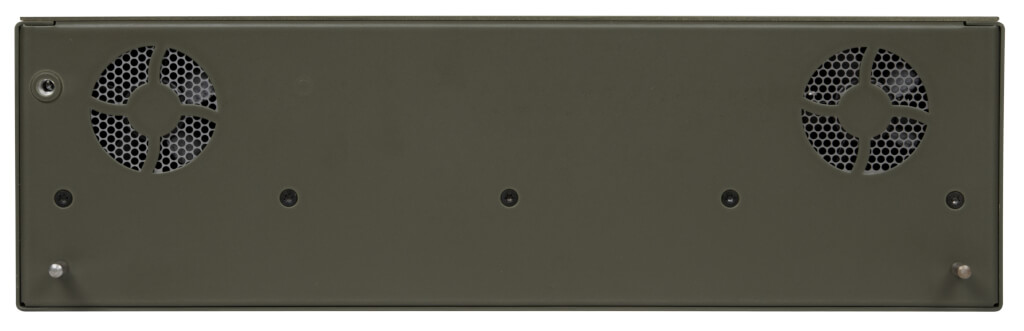

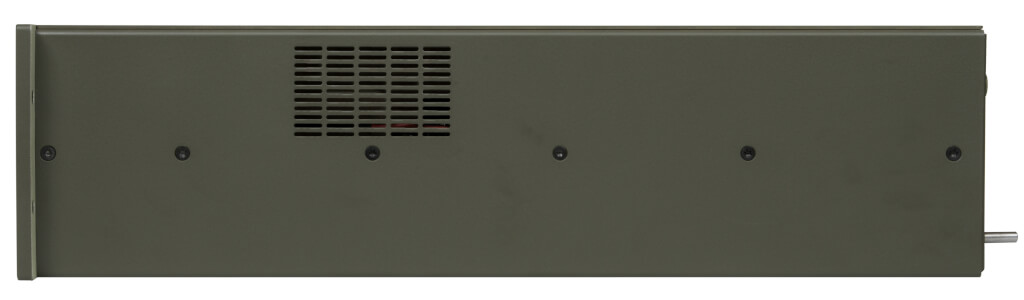

Fotogalerie
