96247

Odolný switch s výškou 2U pro zabudování do 19'' racku

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

Aqeri 96247 is a rugged 19" Cisco-based military switch for use in harsh environments. The chassis is fully sealed for protection against dust and corrosive elements. A fully aluminum contstruction stands for low radiation and high noise immunity. The rugged design gives protection against shocks and vibration. An internal heating and climate control system makes the unit usable in extremely low--temperature environments.

Specifikace

TECHNICAL SPECIFICATIONS
Switchboard: Cisco WS-2960-24 TT-L
I/O Interfaces
10/100Mbit: x24
Console: x1

CONNECTORS
10/100 Mbit: MIL-DTL-38999
Console: DSUB
DC In: MS3106F 10SL-3S

PHYSICAL CHARACTERISTICS
Dimensions: 440 x 88 x 400mm (WxHxD)
Weight: 8kg
Color: Grey, other optional

ELECTRICAL SPECIFICATIONS
Power requirements: 18-36VDC operating (Safe start Min 21VDC, Max 33VDC)
Power consumption: 30W (excluding heaters)

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill (other standards on request): MIL-STD-461E
MIL-STD-1275B
MIL-STD-810G
European CE
TEMPEST SDIP-27 Level A, B, C Option
Temperature Operating: -20°C to +55°C
Vibration Operating: 10-500Hz 1,04g rms
Shock Operating: 15g, 11ms, ½ sine wave
Humidity: 5% to 95% non condensing
Altitude Operating: 3000m

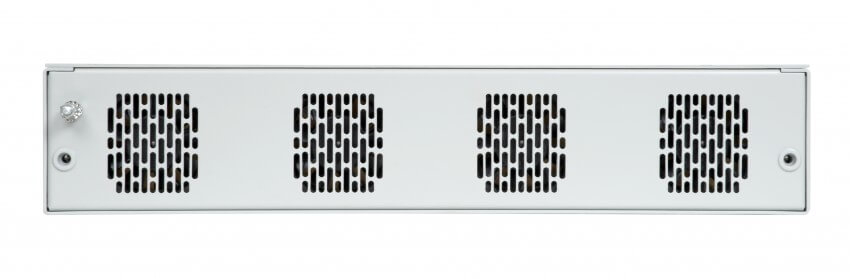

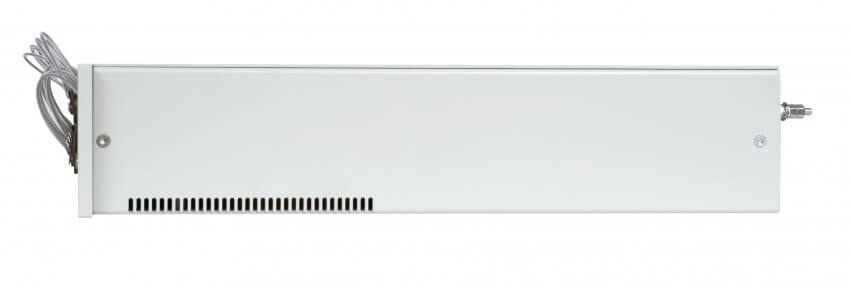

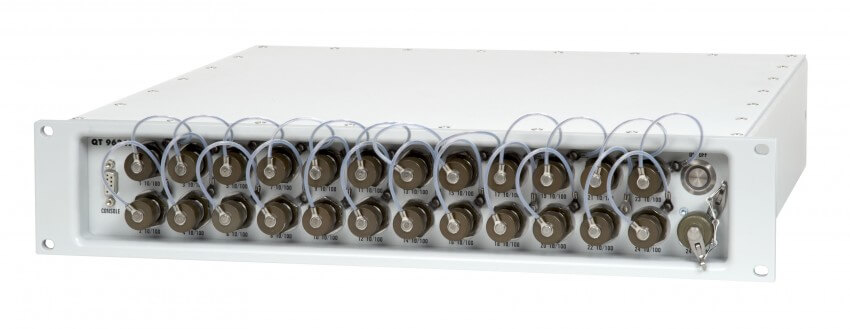

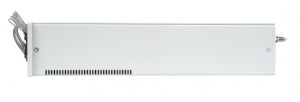

Fotogalerie
