9624-6M

Odolný switch s výškou 2U pro zabudování do 19'' racku s AC napájením

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

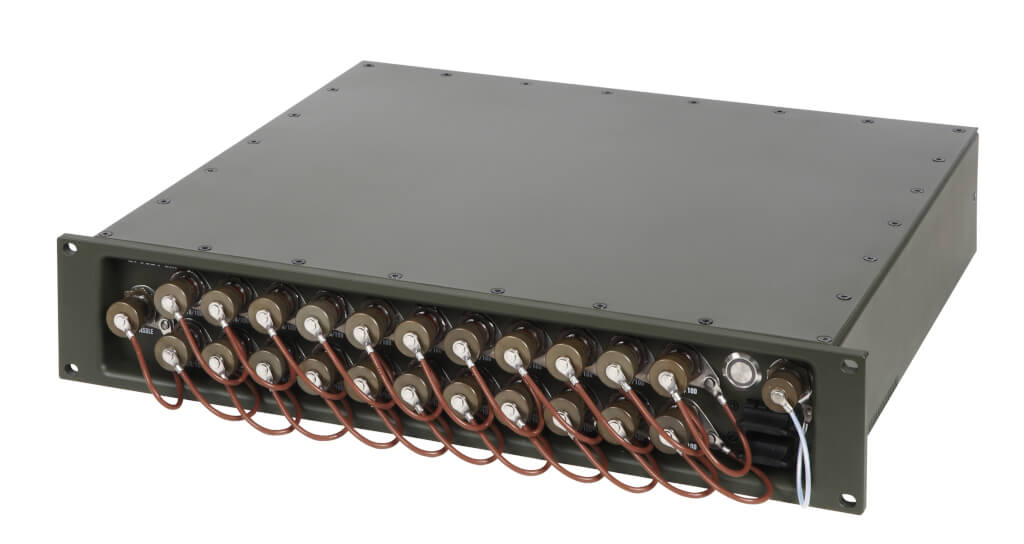

Aqeri 9624-6M is a rugged switch designed for use in harsh environments. The Cisco based switch is built into a fully sealed aluminium chassis. Great temperature variations is not a problem as the product is equipped with intergrated heating and climate control.

Specifikace

TECHNICAL SPECIFICATIONS
Switchboard: Cisco WS-2960-24TT-L

I/O Interfaces
10/100 Mbit: x22
100 Mbit Multimode: x2
Console: x1

CONNECTORS
10/100 Mbit: MIL 38999
100 Mbit Multimode: SC
Console: DSUB

PHYSICAL CHARACTERISTICS
Dimensions: 440 x 86 x 400mm (WxHxD)
Weight: 8kg
Color: Green, other optional

ELECTRICAL SPECIFICATIONS
Power requirements: 90-264 VAC, 50-60Hz
Power consumption: 36W (excluding heaters)

ENVIRONMENTAL CHARACTERISTICS
Designed to fulfill (other standards on request): MIL-STD-461E
MIL-STD-810G
European CE
Temperature Operating: -20°C to +55°C
Vibration Operating: 10-500Hz 1,04g rms
Shock Operating: 15g, 11ms, ½ sine wave
Humidity: 5% to 95% non condensing
Altitude Operating: 3000m
