9104
Odolný počítač / server s výškou 4U pro zabudování do 19'' racku
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace

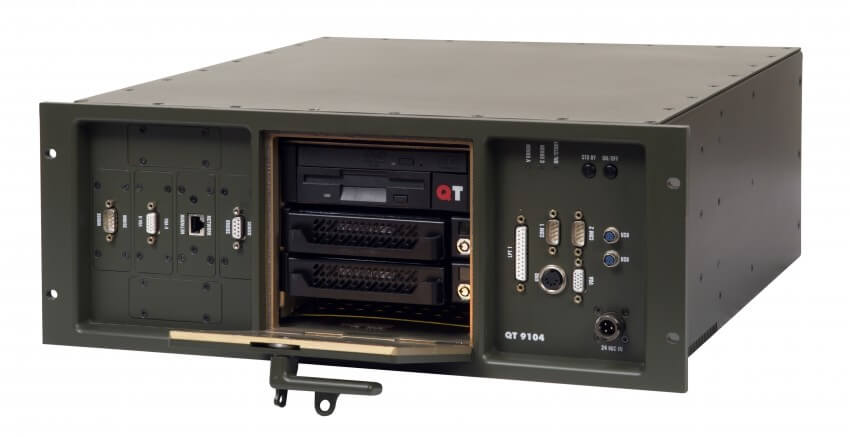

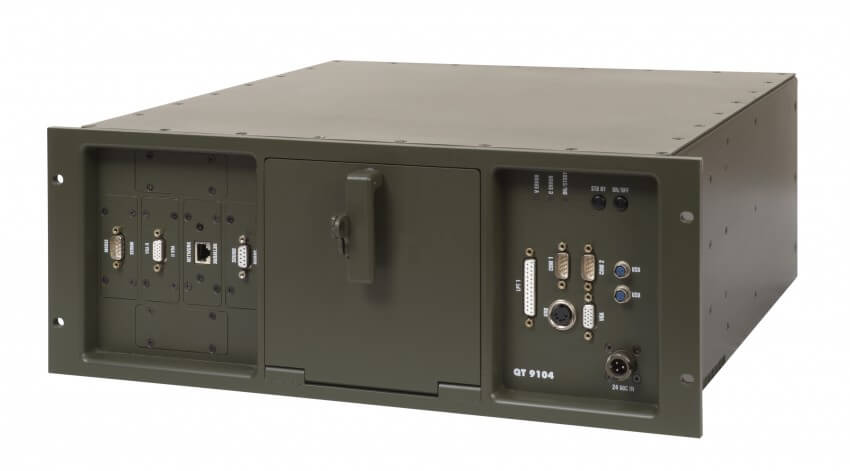

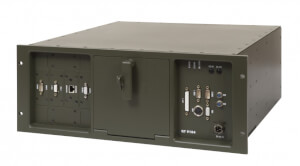

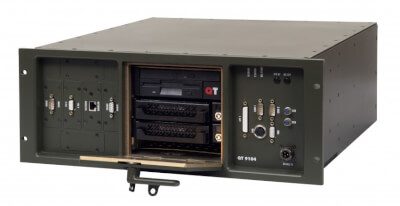

Aqeri 9104 is a rugged 19" 4U computer for use in harsh environments. The chassis is fully sealed for protection against dust and corrosive elements. Cooling is provided by heat exchanger cooling system. A fully aluminum construction stands for low radiation and high noise immunity (according to MIL-STD-461E). The rugged design, including a separately hinged cradle for mass storage units, gives protection against shocks and vibration. An internal heating and climate control system makes the unit usable in extremely low-temperature environments. Based on COTS technology, the computer can be configured for a various server and workstation applications
Specifikace
| TECHNICAL SPECIFICATIONS | |
| Processor: | Intel® Core i7-2600 3.4GHz |
| Memory: | DDR3 up to 16GB |
| Operating system: | Optional, Windows, Linux |
| Storage: | Up to 3x 2,5" or 3,5" HDD/SSD drive and 1x DVD-RW |
| RAID: | Optional 0/1/5 |
| I/O Interfaces: | |
| USB: | x2 |
| Gigabit Ethernet, Fibre Ethernet Optional: | x1 |
| VGA: | x1 |
| RS2321x RS-232/422/485: | x1 |
| Graphics: | QM57 integrated Gen 5.75 prahics Media Accelerator. Up to 2048 x 1536 resolution. |
| Expansion: | Optional 2x PCI 32Bit, 1x PCIe X16 |
| CONNECTORS | |
| USB: | Hirose |
| Ethernet: | RJ45 and/or SC |
| VGA: | HD-DSUB |
| RS232: | DSUB |
| DC in: | MS3106F 10SL-3S |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 440 x 177 x 450mm (WxHxD) |
| Weight: | 15kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 28VDC (18-36VDC, safe start Min 21VDC, Max 33VDC) |
| Power consumptions: | 122W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E MIL-STD-1275B MIL-STD-810G European CE |
| TEMPEST SDIP-27 Level A, B, C | Option |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating (depending on configuration): | 10-500Hz 1,04g rms |
| Shock Operating (depending on configuration): | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
