91030
Odolný počítač / server s výškou 3U pro zabudování do 19'' racku
Základní informace

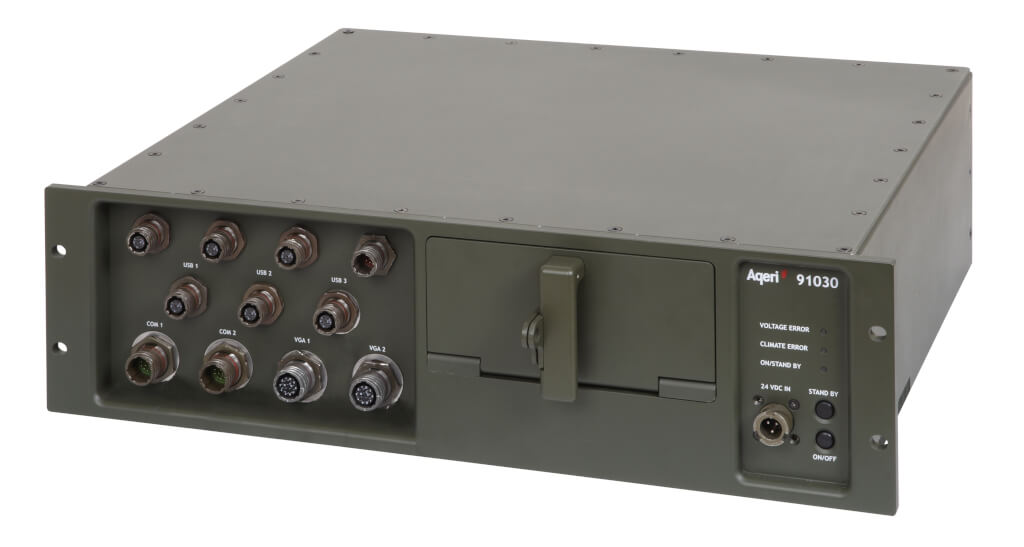

The Aqeri 91030 is a front accessible 19” 3U computer for use in harsh environments. The chassis is fully sealed for protection against dust and corrosive elements. The full aluminium construction allows for low radiation and high noise immunity (in accordance with MIL-STD-461E). The internal heating and climate control system guaranties operations in extreme temperature environments. The Xeon dual core processor makes this a high performance computer which also features Raid 0/1/5 with one up to four Hot Swap flash drives
Specifikace
| TECHNICAL SPECIFICATIONS | |
| Processor: | Intel® 2.66GHz Xeon Dual Core (optical 2xCPU) |
| Memory: | DDR2 up to 8GB |
| Operating system: | Optional, Windows, Linux |
| Storage: | Up to 4x 2,5" or 3,5" HDD/SSD drive 1x DVD-RW |
| RAID: | Optional 0/1/5 |
| I/O Interfaces: | |
| USB: | x3 |
| Gigabit Ehternet: | x2 |
| VGA (stretched or cloned desktop): | x2 |
| PS/2: | x1 |
| RS232 1x RS-485: | x1 |
| Line in and Line out Audio: | x2 |
| Graphics: | Matrox M-series up to 2048 x 1536 resolution |
| Expansion: | n/a |
| CONNECTORS | |
| USB: | MIL 38999 |
| Ethernet: | MIL 38999 |
| VGA: | MIL 38999 |
| RS232: | MIL 38999 |
| Audio: | MIL 38999 |
| PS/2: | MIL 38999 |
| DC in: | MS3106F 10SL-3S |
| PHYSICAL CHARACTERISTICS | |
| Dimensions: | 440 x 132.50 x 500mm (WxHxD) |
| Weight: | 13 kg |
| Color: | Green, other optional |
| ELECTRICAL SPECIFICATIONS | |
| Power requirements: | 28VDC (18-36VDC, safe start Min 21VDC, Max 33VDC) |
| Power consumptions: | 120W at 28VDC (excluding heaters) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-461E MIL-STD-1275B MIL-STD-810G European CE |
| TEMPEST SDIP-27 Level A, B, C | Option |
| Temperature Operating: | -20°C to +55°C |
| Vibration Operating (depending on configuration): | 10-500Hz 1,04g rms |
| Shock Operating (depending on configuration): | 15g, 11ms, ½ sine wave |
| Humidity: | 5% to 95% non condensing |
| Altitude Operating: | 3000m |
