21400

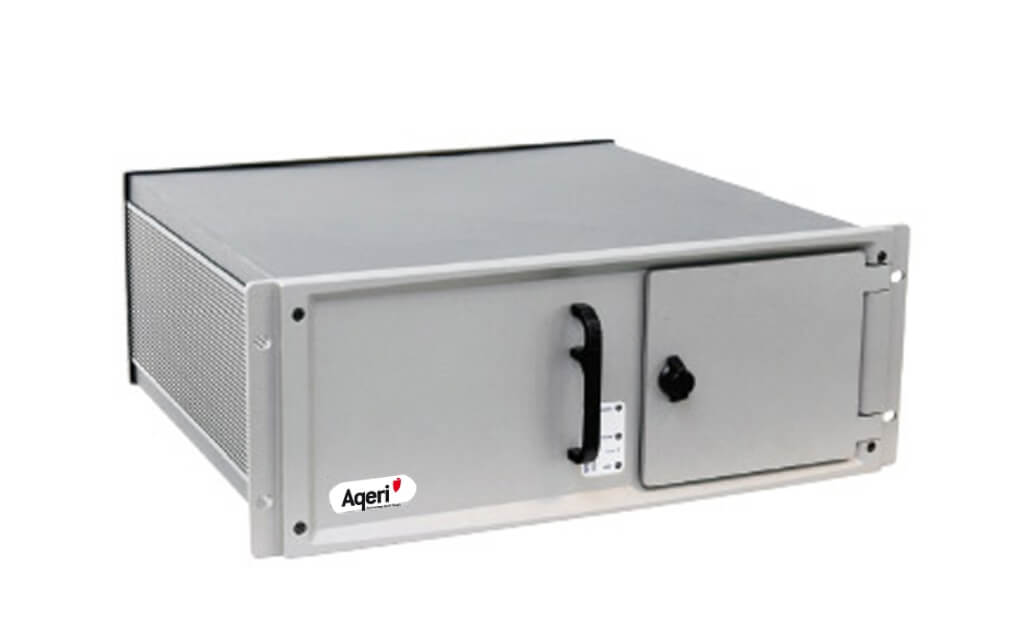

Aqeri 21400 je zodolněné průmyslové PC pro zabudování do 19" racku s výškou 4U.
Základní informace
Ruggedized industrial PC that can be used both as a freestanding workstation and as a rack mounted unit. Designed to withstand tough environments where operators place high demands on function and reliability. The encapsulation class is IP-65, which makes Aqeri 21400 well suited for harsh environments. The chassis is made of extruded aluminum profiles, aluminum front and a rubber suspended internal chassis. Aqeri 21400 has been tested and approvad for use in environments with great temperature variations, strong electromagnetic fields and heavy vibrations.
Specifikace
| FUNCTIONAL SPECIFICATIONS | |
| Processor: | Different options available |
| Memory: | Up to 4GB |
| Operating system: | Optional, Windows, Linux |
| Storage: | 2 x 2,5" or 2 x 3,5" |
| Expansion: | Up to 10 slots |
| PHYSICAL CHARACTERISTICS | |
| Dimension: | 445 x 177 x 468mm (WxHxD) |
| Weight: | 11kg |
| Color: | Black |
| ELECTRICAL SPECIFICATIONS - AQERI 21400 DC | |
| Power requirements: | 12or 24VDC |
| Power consumption: | Depending on configuration |
| ELECTRICAL SPECIFICATIONS - AQERI 21400 AC | |
| Power requirements: | 90-265VAC |
| Power consumption: | Depending on configuration |
| ENVIRONMENTAL CHARACTERISTICS | |
| Designed to fulfill (other standards on request): | MIL-STD-810D IP65/Nema 4x front and sides (Option: IP65/Nema 4x all around) |
| Temperature Operating: | -10°C to +50°C |
