RCC-APEX

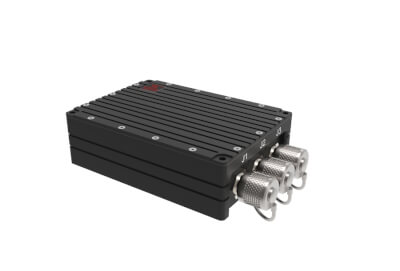

The RCC-APEX is a highly rugged compact computer designed for military aviation, navy and army vehicles. Rugged to survive severe environments and fully sealed, it will not be affected by heat, sand, dust, water spillage or shock. Designed around an Intel
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rugged durable compact packaging, MIL standard compliant, I/O configurable to address all applications, Fanless design, Connectors type configurable, Extended temperature range, Windows or Linux OS, SSD, RAM and CPU configurable to address all requirements.
- Machine aluminum packaging, MIL standard compliant
- I/O configurable to address all applications
- Fanless design
- Connectors type and location configurable
- Extended temperature range
Technické specifikace
| CPU | Atom E3845 1.9 GHz, 2MB cache |
| Memory | 8 GB DDR3L |
| Storage | 256 GB SSD |
| MMI | ON/OFF Power button |
| Connectors | Glenair Mighty Mouse |
| Dimensions | 5.91” (W) x 3.94” (H) x 1.7” (T) 150mm (W) x 100mm (H) x 43mm (T) |
| Weight | 1.75 lbs (0.8 kg) |
| Power | [9-18 VDC] |
| O/S | Windows 7, Windows 10 Linux RHE 7.0 and above |
| I/O | USB (x2) Gig Ethernet (x2) |
Environmentální výkonnost
| Operating Temp. | -40 °C to 65 °C (extended temp option) |
| Storage Temp. | -40 °C to +75 °C |
| Humidity | 95 % @ 40 deg C |
| Altitude | 0 to 45000 feet |
| Shock | 40g / 15 ms , half sine MIL S 901D |
| Vibration | operating vibration 5G RMS 5 to 2000 Hz |
| Ingress Protection | IP65 |
| EMC | MIL-STD-1275B, MIL-STD-461 |
Ke stažení
