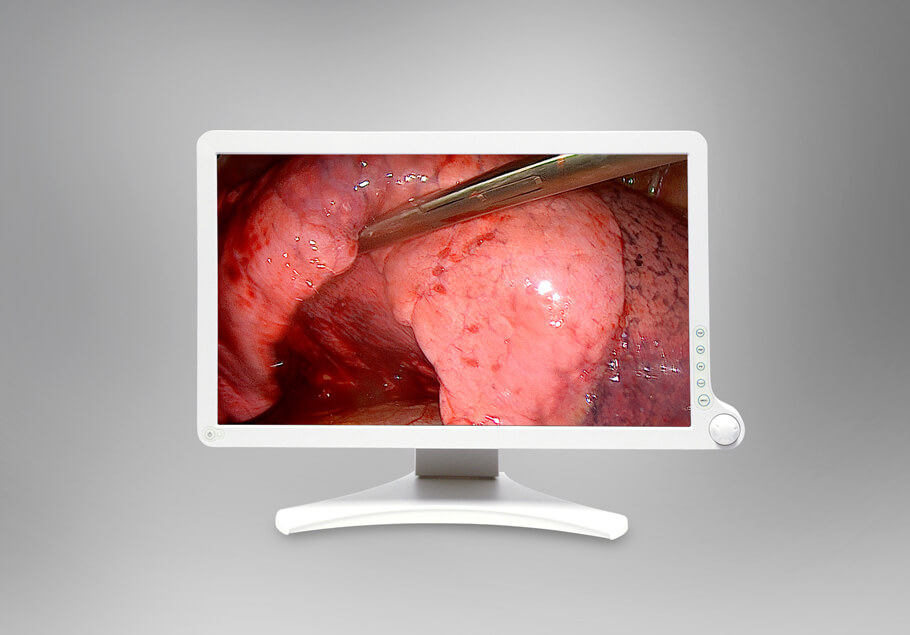

AMM 215WTD
Full HD 21.5-inch surgical display
Základní informace
- Superb quality high resolution LCD
- Energy-efficient LED backlight
- Wide range of inputs supported
- Sealed design to meet IP23
- Antimicrobial Seolforbio Technology™
- Arm mountable VESA compliance
- Picture-by-Picture mode with independent adjustment
- Protective filter
- DC powered
- Intuitive rotary knob control

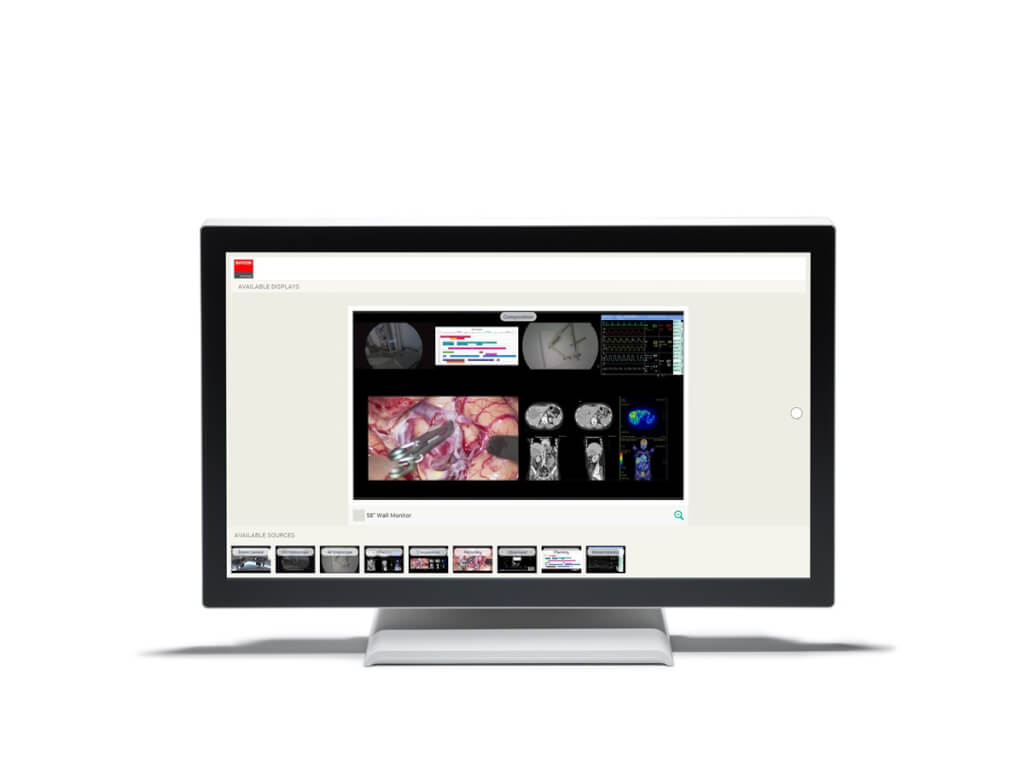

- Project Capacitive touchscreen with multi-touch and gesture input application (option AMM 215WTTP)
Major quality in a compact size
With its compact 21.5" size and high pixel density, the AMM 215WTD is the perfect match for endoscopy cameras. Featuring true 10-bit real-time processing, motion adaptive SD and HD de-interlacing, advanced 3D noise reduction, and accurate chromatic data reproduction, this surgical display meets the highest image quality standards.
All-round connectivity
The AMM 215WTD supports a broad range of input types including VGA, DVI, Composite & S-Video, RGB, Component, HD/SD SDI.
Safety guaranteed
The 21.5" surgical display comes with proprietary Antimicrobial Seolforbio Technology™ to prevent bacterial cultivation and odor on the LCD display. This plastic injection technology makes the AMM 215WTD compliant with the ISO22196 standard for antimicrobial activity of antibacterial treated plastics.
Specifikace
| Screen technology | TFT AM LCD / LED Backlight |
| Active screen size (diagonal) | 21.46" inches (545.2 mm) |
| Active screen size (H x V) | 475 x 267 mm (18.7 x 10.5") |
| Aspect ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Pixel pitch | 0.2475 mm |
| Color imaging | Yes |
| Color support | 16.7 million |
| Viewing angle | 178° |
| Luminance | 250 cd/m2 |
| Contrast ratio | 1000:01:00 |
| LCD transition time | <25ms (Typ.) |
| Screen protection | Double-side anti-reflective PMMA protective cover |
| Video input signals | 2xDVI-I, VGA, RGBS / YPbPr, |
| S-video, Composite video, | |
| 3G-SDI | |
| Video output signals | SDI / S-video /Composite Video, RGBS / YPbPr |
| Remote control | 9–pin D-Sub (RS-232C) x 1 |
| Power requirements (nominal) | Power adaptor: AC 100 ~ 240V 50-60Hz, 2.0A |
| DC 13V, 6.92A | |
| Power consumption (nominal) | 50W |
| Dimensions display (W x H x D) | 523 x 321 x 110 mm |
| Net weight display | Monitor: 5.46Kg (approximately) |
| AC adaptor: 720g | |
| Mounting standard | VESA (100 x 100 mm) |
| Certifications | FDA & EC: Endoscopic and Surgical imaging (Class I) |
| Safety: UL (UL60601-1), cUL (CAN/CSA-C22.2 No.6011-M90), CE (EN60601-1), AS/NZS 3200-1-0. CCC (GB4943-2001), CB-ITE (IEC60950-1), IP23 Compliance | |
| EMC: FCC (Part Class B), CE (EN60601-1-2), AS/NZS 3200-1-2, VCCI (Class B), CCC (GB9254, GB17625.1) | |
| Operating temperature | 32° ~ 95°F (0°~ 35°C) |
| Storage temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating humidity | 20% ~ 80%, non-condensing |
| Storage humidity | 10% ~ 85%, non-condensing |
