Processor AdvancedMC module as complete SBC with Intel® Core2 Duo AMC Processor Module, Double Mid-size Low power budget with Intel® Core2 Duo 1.5 GHz Up to 4 GByte SDRAM memory (soldered) with ECC running at 400 MHz Graphics interface Onboard 2.5"



High Performance Complete SBC on AMC Board

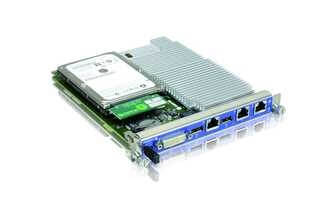

The AM5010 is a highly integrated CPU board implemented as a double, mid-size AdvancedMC (AMC) Module. The design is based on the Intel® Core2 Duo LV 1.5 GHz processor with 4 MB L2 cache providing 667 MHz front side bus (FSB) speed combined with the Intel® 3100 server-class chipset.

The board includes up to 4 GB registered Double Data Rate (DDR2) memory with Error Checking and Correcting (ECC) running at 400 MHz. The AM5010 also provides up to 8 GB Flash memory via an USB 2.0 NAND Flash Controller and offers further the capability for an onboard 2.5" SATA HDD.
Supporting the PICMG sub-specifications AMC.1/.2 the AM5010 ensures a comprehensive set of interconnecting capabilities.

A x4 PCI Express lane (supporting 4 x1 PCI Express as well) according to AMC.1 guarantees high throughput for I/O intensive applications. The dual Gigabit Ethernet supports the AMC.2 specification and utilizes a x4 lane PCI Express interface to ensure maximum packet performance.
Furthermore the integration of a graphic controller with an DVI-I interface to the front, combined with 2x USB, 2x GbE and a serial port via RJ45 provides a rich set of front I/O capabilities allowing the AM5010 to be used in a range of application spaces.

CPU Intel® Core™2 Duo, 1.5 GHz
DRAM Up to 2 GByte registered DDR2 400 MHz with ECC
Chipset Server-class chipset Intel® 3100
Compliance PICMG: AMC.0 R2.0 / AMC.1 / AMC.2 / AMC.3; Support for IPMI 1.5, SOL
Connectivity System Interconnect: 2x GbE, 1x PCI-Express x4, 2x SATA, COM2
CPU L2 Cache 4 MByte
Flash Up to 8 GByte NAND Flash
Form Factor Double width, mid-size
Front Side Bus 667 MHz
Frontpanel 2x GbE, 1x DVI-I, 2x USB 2.0, 1x COM(RJ45), 4 Control/Status LEDs (bi color), Reset button
Graphics ATI ES1000
Options Onboard 2.5" SATA HDD
