AM4101

Processor AdvancedMC module MPC8641D PowerPC with comprehensive fabric interconnect support AMC Processor Module, Single module, Mid/Full-size Freescale dual-core MPC8641D PowerPC, 1.5 GHz Up to 2 GByte soldered SDRAM memory with ECC running at up to

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

Fabric interconnect for GbE, PCI Express and serialRapidIO concurrently

The AM4101 extends the capabilities of solving application requirements significantly by providing three interconnect technologies concurrently: GbE at AMC ports 0 and 1, PCI Express at AMC ports 4 - 7 and Serial RapidIO at AMC ports 8 – 11.

Based on the 1.5 GHz Dual Core Freescale PowerPC® MPC8641D, the AM4101 delivers up to 2.3 MIPS/MHz computing performance and highest Ethernet bandwidth without breaking the power budgets of modular AdvancedTCA carriers or highly-integrated, redundant MicroTCA multi-processing systems.


Vlastnosti
CPU Freescale MPC8641D Dual Core Power Architecture processor, 1.5 GHz
Chipset -
Compliance PICMG: AMC.0 R2.0 / AMC.1 / AMC.2 / AMC.4, Support for IPMI
Connectivity System Interconnect: 2x GbE, 1x PCI-Express x4, 1x sRIO x4, Debug Port, Com Port
CPU L2 Cache Dual 1 MByte
Flash 2 GB NAND Flash with onboard controller for application code and data
Form Factor Single width, full-size or mid-size
Front Side Bus -
Frontpanel 2x GbE, 1x COM (RJ45), 4 Control/Status LEDs (bi color)
Graphics -
Options -

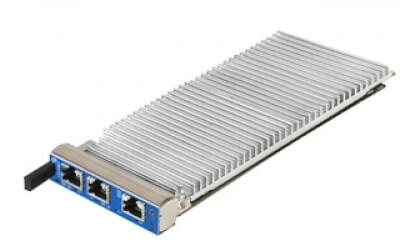

Fotogalerie
