Processor AdvancedMC module with Intel® Core™ Duo or Intel® Core™2 Duo AMC Processor Module, Single-module, Full-size or Mid-size Intel® Core™ Duo or Intel® Core™2 Duo, scalable up to 1.66 GHz Up to 4 GByte SDRAM memory (soldered) with ECC running at

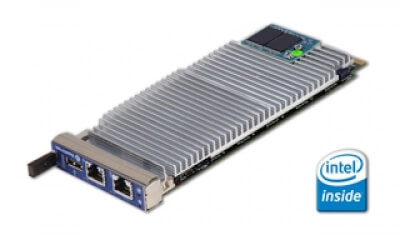

The AM4010 is a highly integrated CPU board implemented as a Single-module, Mid-size or Full-size Advanced Mezzanine Card (AMC). The design is based on the Intel® Core™ Duo and the Intel® Core™2 Duo processors combined with the Intel® 3100 server-class chipset.
The board includes up to 4 GB registered Double Data Rate (DDR2) memory with Error Checking and Correcting (ECC) running at 400 MHz. A dual Gigabit Ethernet controller utilizing a x4 lane PCI Express interconnection to the Intel® 3100 chipset ensures maximum data throughput . The AM4010 further provides up to 8 GB Flash memory via an onboard USB 2.0 NAND Flash Controller.
Optimized for high-performance, packet-based communication systems, the AM4010 is targeted towards, but not limited to the telecom market application such as radio network controllers, media streaming, traffic processing, database management and routing. The AM4010 also fits into all applications situated in industrial environments, including I/O intensive applications. The careful design and selection of high temperature resistant components ensure a high product availability. This, together with a high level of scalability, reliability, and stability, make this state-of-the-art product a perfect core technology for long-life embedded applications.
|CPU||Intel® Core™ Duo / Intel® Core™ 2 Duo, up to 1.66 GHz|
|DRAM||Up to 4 GByte registered DDR2 400 MHz with ECC|
|Chipset||Server-class chipset Intel® 3100|
|Compliance||PICMG: AMC.0 R2.0 / AMC.1 / AMC.2 / AMC.3; Support for IPMI 1.5|
|Connectivity||AMC System Interconnect: 2x GbE (opt. 4x GbE), 1x PCI-Express x4, 4x SATA, COM2|
|CPU L2 Cache||2 MByte (Intel® Core™ Duo ) / 4 MByte (Intel® Core™ 2 Duo)|
|Flash||Up to 8 GByte NAND Flash|
|Form Factor||Single module, full-size or mid-size|
|Front Side Bus||533/667 MHz|
|Frontpanel||1x GbE, 1x USB 2.0, 1x COM(RJ45), 4 Control/Status LEDs (bi color)|
