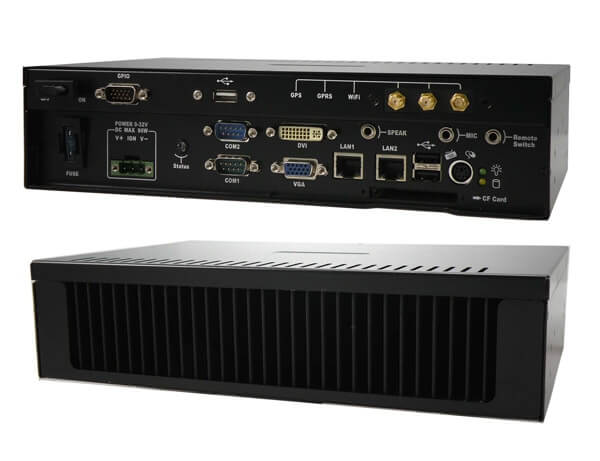

AR-V5430FL
Fanless and Dustproof Intel 945GME Core 2 Duo Vehicle PC
Feature
1. Support Core 2 Duo/Core Duo/Celeron M
2. VGA/DVI
3. 8-bit GPIO (4 In, 4 Out)
4. GPS/GPRS/WiFi Module Option
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Detail
|
Specifications |
| [System] |
| Cpu |
Socket M support Intel Core 2 Duo/Core Duo/Celeron M |
| Chipset |
Intel 945GME + Intel ICH7M |
| Front Side Bus |
533/667MHz |
| Memory |
1 x 200-pin SO-DIMM socket support 533/667MHz DDR2 SDRAM up to 2GB, 1GB pre-installed |
| OS |
Windows XP Embedded, Linux FC6/7 |
|
| [Video/Display] |
| Video Controller |
Intel 945GME integrated GMA 950 graphic controller |
| Video Interface |
1 x VGA port, 1 x DVI port |
|
| [Ethernet] |
| Connector |
2 x RJ45 (10/100/1000), Broadcom BCM5787 |
|
| [Storage] |
| HardDisk Storage |
Anti-shock drive bay for 2.5 |
| IDE |
1 x IDE (44-pin) |
| SATA |
1 x SATA II port |
| SSD |
1 x Compact Flash Type II socket |
|
| [I/O] |
| Serial Port |
4 x RS-232 (2 x DB9, 2 x internal RS- 232 for GPS/GPRS option) |
| USB Port |
4 x USB2.0 (3 x external, 1 x internal USB for WiFi option) |
| Audio |
MIC-In, SPK-Out |
| GPIO |
8-bit GPIO (4 In, 4 Out) |
| Keyboard/Mouse |
PS/2 keyboard and mouse connector |
| Expansion Slot |
1 x PCI -104 module space |
|
| [Mechanical & Environment] |
| Color |
Black |
| Power Supply |
AR-PW0932V with smart ATX function (System delay power on/off, Voltage monitoring, Retry function) |
| Operating Temp. |
0~50℃ (32~122°F) for Industrial grade CF |
| Storage Temp. |
-40~80℃ (-40~176°F) |
| Vibraiton |
IEC 60068-2-64 5~500Hz, 2GRMS for CF, 3GRMS for SSD |
| Shock |
IEC 60068-2-27 50G-500m/s -11ms |
| Safety |
CE, FCC class B, EMark 13 |
| Dimension Cutout |
279mm x 176mm x 67.2mm |
|
| [Other Features] |
| |
Extension Module (Option)
1. 1 x PCI -104 module space
2. USB wireless LAN module
3. RS-232 GPRS/GSM module (Default COM3)
4. RS-232 GPS module (Default COM4)
Power Module
1. Wide range input DC 9V~32V
2. Fuse Design
3. Smart ATX power function
a. Power on/off retry
b. Adjustable delay time for system OFF by Switch
on power module (Mode2~Mode7)
c. System on/off by Vehicle ignition or Remote switch
button
|
|
|
|
